Montblanc Boheme Disassembled For Cleaning

siamackz

By siamackz
in Montblanc

 Share

Recommended Posts

siamackz Collectors Item

siamackz

Posted
Posted

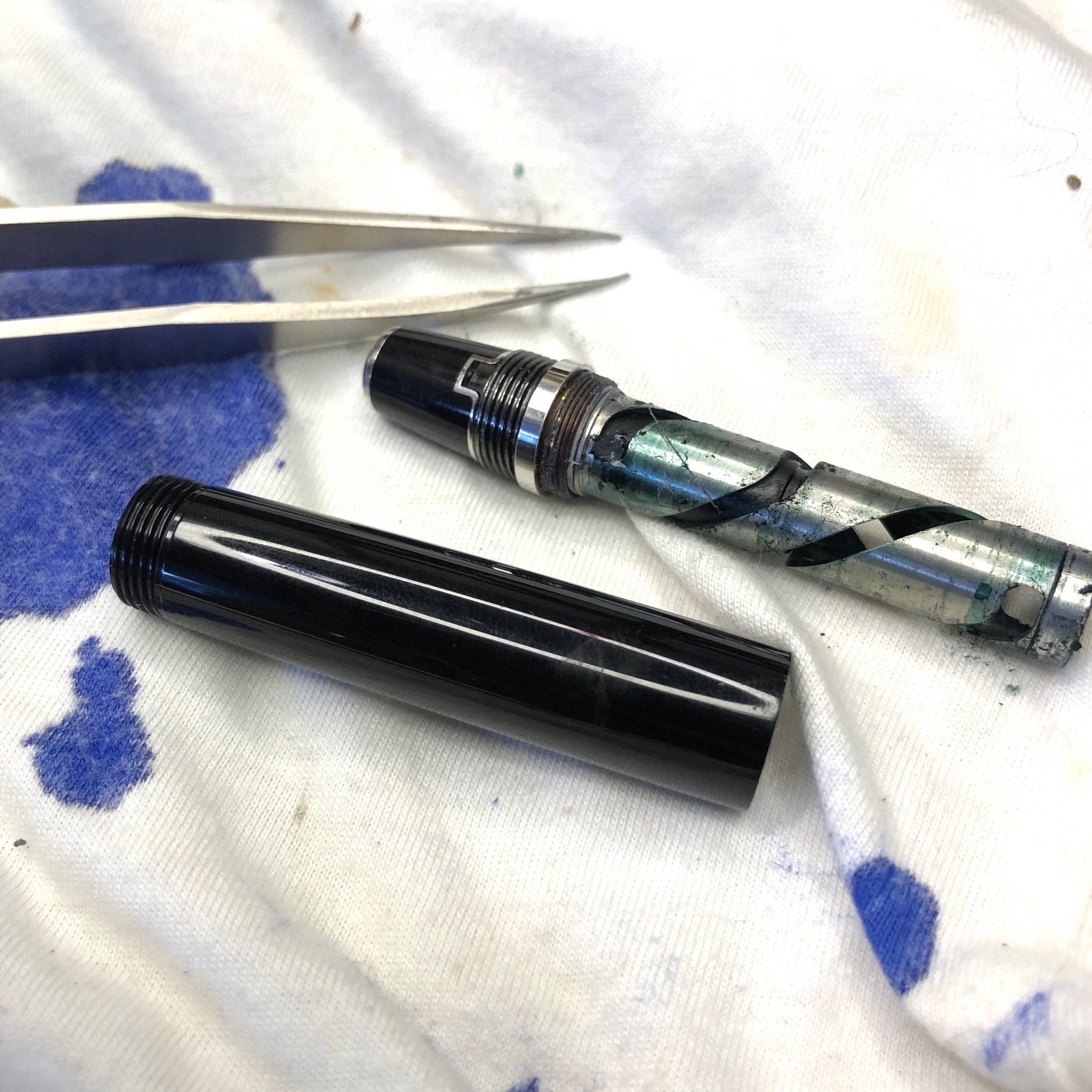

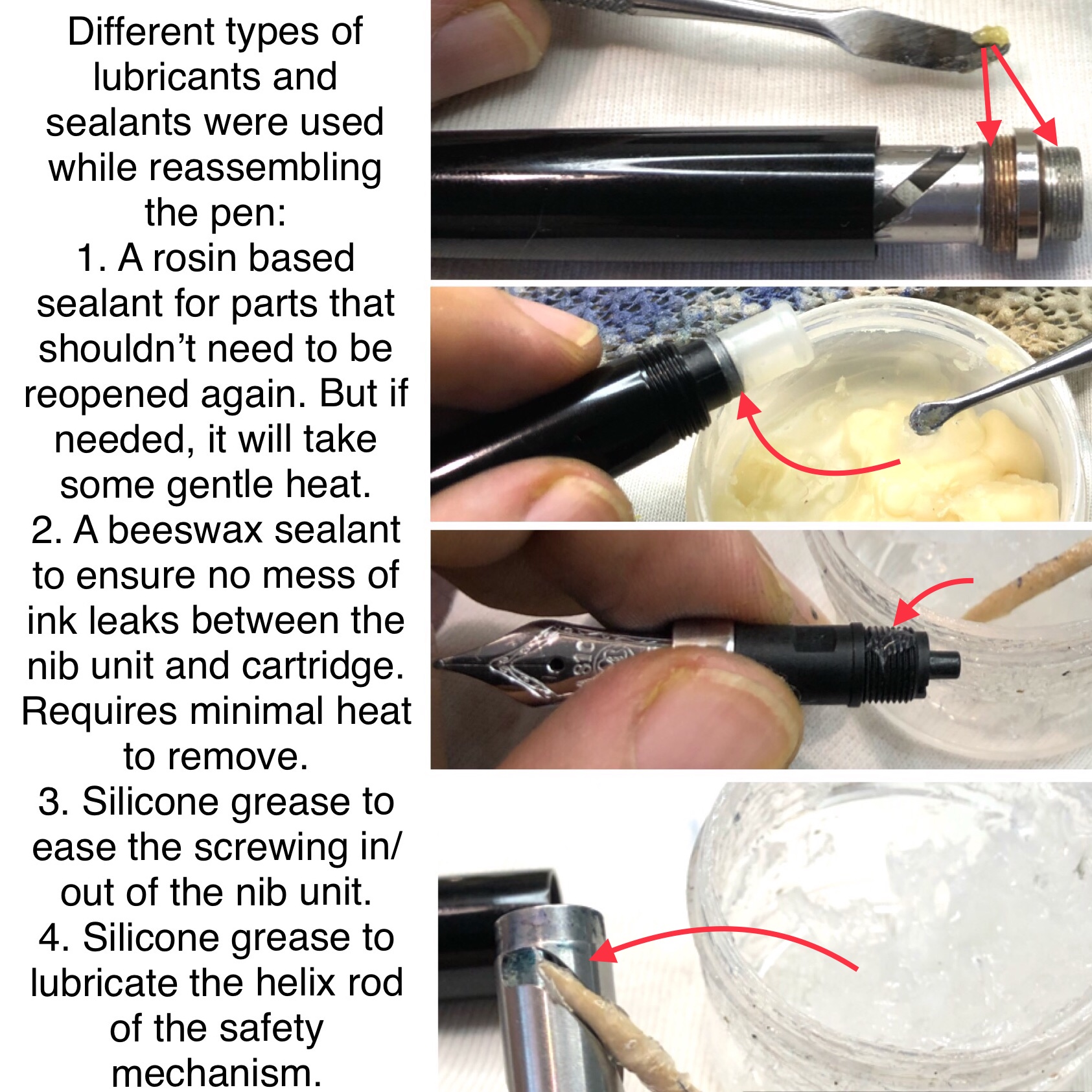

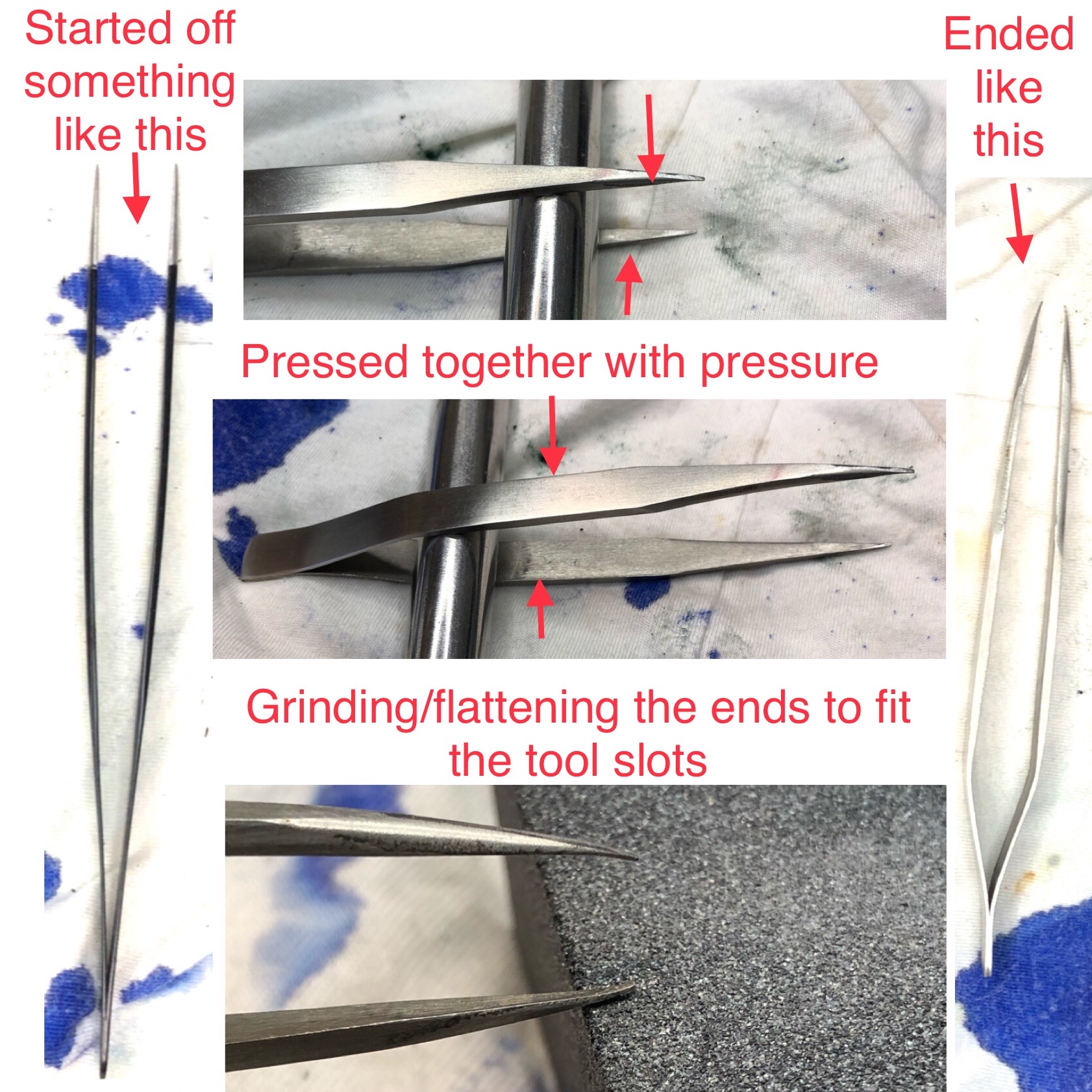

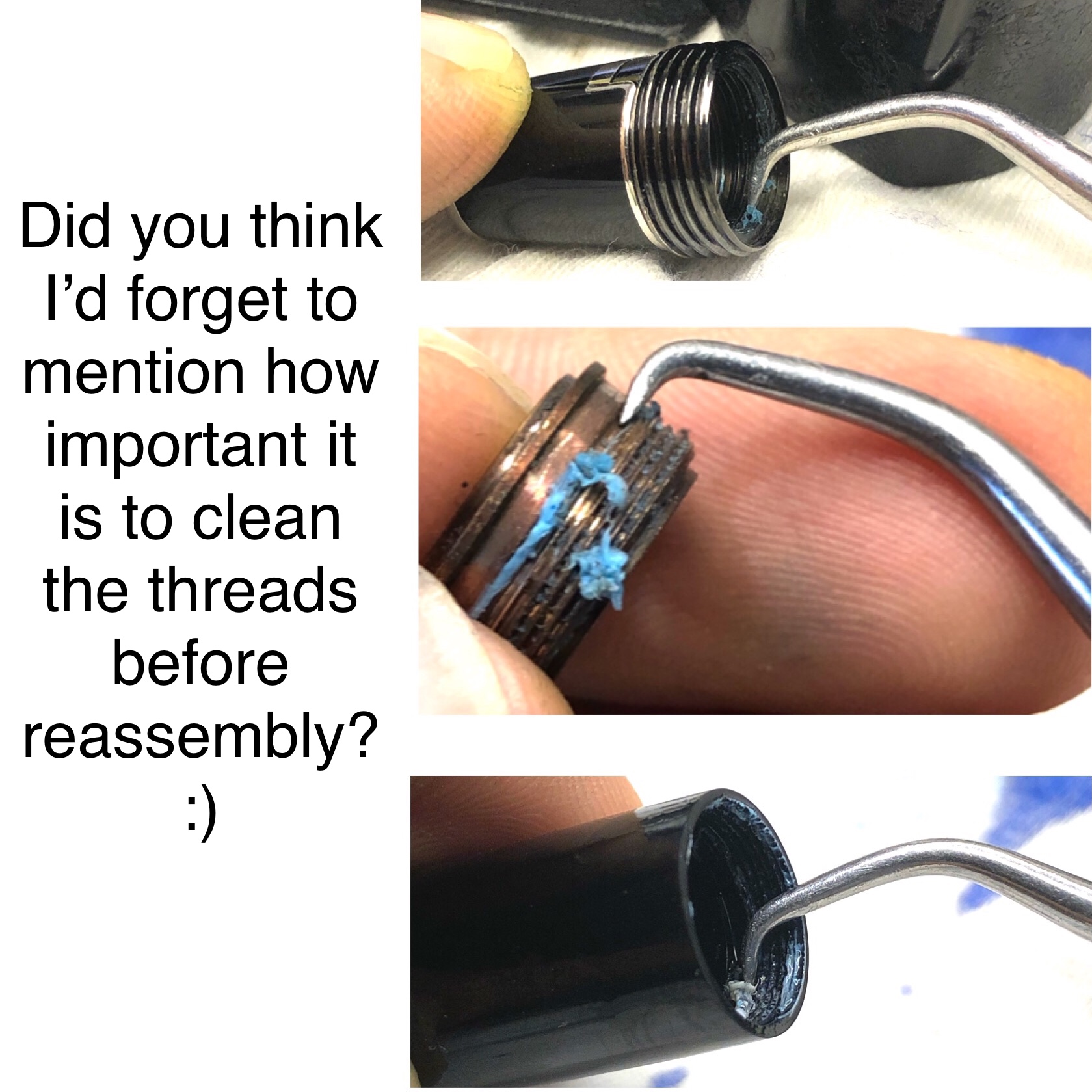

I was struggling to find a clear set of instructions on how to open the Boheme, but I figured it out based on pictures of disassembled pens. Heres some documentation of how I opened it up, in case it might be of help to others...

fpn_1596941266__3e8f3a65-baec-49f8-bd18-

fpn_1596941303__d2feede2-4af9-43e6-955d-

fpn_1596941355__6f8994f5-f04a-49ba-bf7b-

fpn_1596941393__b6f5617a-1fdc-4445-963b-

fpn_1596941438__dc48e1ea-6c4f-44fc-abdf-

fpn_1596941477__40c0b157-13ba-4643-a400-

fpn_1596941576__16f72ab3-c4a7-4900-9515-

fpn_1596941611__767ea669-5a8f-48d9-801a-

fpn_1596941651__2daa5739-4bcd-437d-9f5c-

fpn_1596941690__b0851403-6f65-4314-8ce3-

My Restoration Notes Website--> link

Link to comment
Share on other sites
  • Replies 17
  • Created
  • Last Reply

Top Posters In This Topic

  • siamackz

    8

  • Bunsan

    2

  • gerigo

    1

  • ljmudit

    1

Popular Days

Top Posters In This Topic

Popular Days

ljmudit Near Mint

ljmudit

Posted
Posted

Great job sir! Thank you so much for sharing such detailed reports!

I referred one of your posts to successfully seal my 149!

Link to comment
Share on other sites
siamackz Collectors Item

siamackz

Posted
  • Author
Posted

I love this forum.

Thanks for taking the time to share and help others.



(Gorgeous pen)

Thanks, Tas!

My Restoration Notes Website--> link

Link to comment
Share on other sites
FredRydr Antique

FredRydr

Posted
Posted

Cool! Thanks, Sia! I never took my Bohemes that far before they were re-sold, relying on the concept "not broke; don't fix it" in order to avoid breaking it myself. ;-)

Link to comment
Share on other sites
CS388 Antique

CS388

Posted
Posted

Thanks, Sia.



Always wondered what was going on inside the Bohemes.

Now we know! Nice mechanism. Well done on sorting it out.



And thanks for sharing.

Link to comment
Share on other sites
siamackz Collectors Item

siamackz

Posted
  • Author
Posted

Cool! Thanks, Sia! I never took my Bohemes that far before they were re-sold, relying on the concept "not broke; don't fix it" in order to avoid breaking it myself. ;-)



Thanks, Sia.



Always wondered what was going on inside the Bohemes.

Now we know! Nice mechanism. Well done on sorting it out.



And thanks for sharing.

I always wondered too. Now we all know it’s not that hard really :)

My Restoration Notes Website--> link

Link to comment
Share on other sites
Ron Z Museum Piece

Ron Z

Posted
Posted

Nice to see how the pen comes apart.



FWIW, Montblanc sells a cleaning unit - two to a pack, that fit into the Boheme. It's a hybrid cartridge and pipette that fits on the piercing tube like a cartridge, with the nib unit extended. It contains a cleaning solution, but it can of course be reused. This keeps the inside of the pen dry, and makes it easier to clean for folks who are not mechanically inclined.

Visit Main Street Pens
A full service pen shop providing professional, thoughtful vintage pen repair...

Please use email, not a PM for repair and pen purchase inquiries.

Link to comment
Share on other sites
siamackz Collectors Item

siamackz

Posted
  • Author
Posted

Nice to see how the pen comes apart.



FWIW, Montblanc sells a cleaning unit - two to a pack, that fit into the Boheme. It's a hybrid cartridge and pipette that fits on the piercing tube like a cartridge, with the nib unit extended. It contains a cleaning solution, but it can of course be reused. This keeps the inside of the pen dry, and makes it easier to clean for folks who are not mechanically inclined.

This is good to know, Ill tell the owner. In this particular case the pen has to be disassembled because ink leaked all over onto the insides. But if proper pen hygiene is followed and cartridges are changed regularly and the nib is flushed as you suggested this should not be a problem. Thanks for the tip

My Restoration Notes Website--> link

Link to comment
Share on other sites
gerigo Vintage

gerigo

Posted
Posted

Thanks for this. I have quite a few Bohemes as it is a pen design that I really like. However trying to change the nib of these pens is simply impossible for the average joe.

Link to comment
Share on other sites
siamackz Collectors Item

siamackz

Posted
  • Author
Posted

Thanks for this. I have quite a few Bohemes as it is a pen design that I really like. However trying to change the nib of these pens is simply impossible for the average joe.

Im glad you found it helpful

My Restoration Notes Website--> link

Link to comment
Share on other sites
  • 9 months later...
Bunsan Dipped Only

Bunsan

Posted
Posted
On 8/9/2020 at 8:25 AM, siamackz said:

I was struggling to find a clear set of instructions on how to open the Boheme, but I figured it out based on pictures of disassembled pens. Heres some documentation of how I opened it up, in case it might be of help to others...

fpn_1596941266__3e8f3a65-baec-49f8-bd18-

fpn_1596941303__d2feede2-4af9-43e6-955d-

fpn_1596941355__6f8994f5-f04a-49ba-bf7b-

fpn_1596941393__b6f5617a-1fdc-4445-963b-

fpn_1596941438__dc48e1ea-6c4f-44fc-abdf-

fpn_1596941477__40c0b157-13ba-4643-a400-

fpn_1596941576__16f72ab3-c4a7-4900-9515-

fpn_1596941611__767ea669-5a8f-48d9-801a-

fpn_1596941651__2daa5739-4bcd-437d-9f5c-

fpn_1596941690__b0851403-6f65-4314-8ce3-

What an amazingly clear set of instructions and pictures!! I have a Boheme where the soft plastic sleeve at the base of the ink unit sits free and moves a bit in either direction, towards and away from the nib unit. The result is the following: When I extend the nib unit all the way out, it gets stuck when I'm trying to screw it back in, because this plastic sleeve snags inside the front section. Should it be glued into place instead of being allowed to slide around? Any suggestions? Many thanks!!

Link to comment
Share on other sites
siamackz Collectors Item

siamackz

Posted
  • Author
Posted
On 5/20/2021 at 10:57 PM, Bunsan said:

What an amazingly clear set of instructions and pictures!! I have a Boheme where the soft plastic sleeve at the base of the ink unit sits free and moves a bit in either direction, towards and away from the nib unit. The result is the following: When I extend the nib unit all the way out, it gets stuck when I'm trying to screw it back in, because this plastic sleeve snags inside the front section. Should it be glued into place instead of being allowed to slide around? Any suggestions? Many thanks!!

Hi, I wouldn’t glue the plastic nib collar (if that’s what you’re referring to). I wish I k we what to advise you but honestly modern pens are not my expertise and so I don’t know exactly what to suggest without examining the pen in my hands. Maybe someone else with more knowledge will contribute 🤞

post some pics - it might help

My Restoration Notes Website--> link

Link to comment
Share on other sites
Bunsan Dipped Only

Bunsan

Posted
Posted

Thanks for your inputs. I removed the plastic sleeve, works like a charm now. No snagging, no drying, no rattling. Wonder what purpose the sleeve really serves. All good now.

Link to comment
Share on other sites
