Vintage Mb Telescopic Pistons


fountainbel

Recommended Posts

Hi all,



The MB telescopic filling system really is a mechanical juwel , which – being a mechanical engineer- I'm very found off



Given the confusion there is on the need to back-up the piston against the section edge for efficient filling, attached my sketch showing the working principle of the MB telescopic pistons.



The sketch shows the system of a pen in the vintage 14X range, although the principle is similar for the 13X range and in fact for all MB telescopic fillers.



And yes, one really has to turn the piston down till its backs-up against the section edge, otherwise the piston will not make its complete telescopic stroke.



A pen on which the piston has not to back-up against the section end, yet allowing the full piston stroke is - in my opinion - a pen on which the piston cork tension is"on the edge", meaning the cork will probably leak.



Contrary to normal piston fillers, obtaining the optimum radial pretension of the cork is very delicate.



In my experience a radial pretension ( on diameter ) of 0.10/0.15mm is the optimum



Surely when the barrel bore is slightly wider at the section side - which is sometimes the case - one has to fiddle and optimize de cork diameter to get a good result.



The friction of the cork in the barrel should be as low as possible , while fully tight.



I therefore soak the corks in a liquid paraffin /beeswax solution for one hour , heated up"au bain Marie".



Doing so the solution penetrates in the cork cavities, resulting in reduced friction inthe barrel and reducing the back-up force piston/section end needed to avoid slipping of the blind cap thread fit.



Hope this clarifies somewhat the working principle of these beautiful - real Meisterstuck- pens.



Francis

http://i62.photobucket.com/albums/h89/fountainbel/Repair%20suggestions%20to%20forum/MBtelescopic002Kopie.jpg

Edited by fountainbel
Link to comment
Share on other sites

  • Replies 56
  • Created
  • Last Reply

Top Posters In This Topic

  • fountainbel

    12

  • piscov

    5

  • siamackz

    5

  • CS388

    4

Dear Francis, unable able to see the sketch now. Much appreciated.



Thanks!

Hari

Edited by hari317

In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

Link to comment
Share on other sites

Wow, how lucky we are to have you contribute to this forum Francis. :notworthy1:



Thank you very much for the excellent (and typical) Fountainbel explanation.



Pavoni.

Link to comment
Share on other sites

Francis thank you for your detailed drawing and explanation of telescopic pistons.

Link to comment
Share on other sites

Fantastic section Francis. Please don't tell me you drew it on a drafting table happyberet.gif



cheers



Wael

“Non Impediti Ratione Cogitationis”

Link to comment
Share on other sites

Hello, Francis



It's really nice to see this beautiful mechanism ... I appreciate this in my 3 Celluloid Montblanc Meisterstück from the 50ies, 142,144 and your 149 ! :thumbup:



Regards

Yves

http://i973.photobucket.com/albums/ae218/petitdauphinzele/midnightblue-1.png

aka Petitdauphinzele

Link to comment
Share on other sites

Fantastic section Francis. Please don't tell me you drew it on a drafting table happyberet.gif



cheers



Wael



In fact I've drawn/sketched it on our living table, took me just 2 hours.



Francis

Edited by fountainbel
Link to comment
Share on other sites

Francis, you're a treasure to the board!



Always drawing up excellent schematic sketches of pens that we love and treasure, helping us understand the inner workings of the mechanism. We can't thank you enough! A big thank you!





Bob

"Reality is merely an illusion, albeit a very persistent one." -- A. Einstein

Link to comment
Share on other sites

outstanding piece of engineering

Pens are like watches , once you start a collection, you can hardly go back. And pens like all fine luxury items do improve with time



Link to comment
Share on other sites

That is very very helpful. I was wondering how the telescoping mechanism in my 142 actually worked. Thanks very much for the excellent schematic.

" Gladly would he learn and gladly teach" G. Chaucer

Link to comment
Share on other sites

Thanks for your comments !

Major reason why MB went away from this excellent filling system is its complexity, hence the cost.

Secondary reason might be blotting risks due to the large ink tank volume.

Specially when the ink volume is low, the risks for blotting by air expansion triggered by temperature and air presuure fluctuations.

is higher

Francis

Edited by fountainbel
Link to comment
Share on other sites

Francis, can this filler be reproduced in delrin? as a drop in replacement for current MB piston pens, but with greater stroke?

In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

Link to comment
Share on other sites

Francis, can this filler be reproduced in delrin? as a drop in replacement for current MB piston pens, but with greater stroke?



Not in my opinon

One can't obtain the ridgidity in delrin

The design is perfect as is..........

Francis

Edited by fountainbel
Link to comment
Share on other sites

Francis, can this filler be reproduced in delrin? as a drop in replacement for current MB piston pens, but with greater stroke?



Not in my opinon

One can't obtain the ridgidity in delrin

The design is perfect as is..........

Francis





since 1936 !

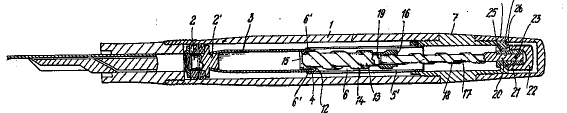

D.R.P. 746437 Patentiert im Deutschen Reich 23. Februar 1936



http://www.maxpens.de/bilder/mbpate6.gif



kind regards



Max

HANDMADE PENS : www.astoriapen.hamburg ; REPAIRSERVICE : www.maxpens.de ; by MONTBLANC recommended repair service for antique pens

Link to comment
Share on other sites

I wonder if the need to push the piston down till it backs up against the section edge contributed to my pen breaking? I love the telescopic mechanism for its weight and materials, but might it place too much stress on the celluloid? :/




Singapore Fountain Pen Lovers on Facebook
Link to comment
Share on other sites

Great engineering work.:thumbup: Francis, Good to see you again on this Forum.





Patron of Art Marquise de Pompadour 2001 LE 0043/4810.

Donation SE John Lennon Imagine FP (M) Nib Serial No.BW195873

Donation LE Johann Sebastian Bach 2001(M) Nib. serial no. 2892/12000.

Donation SE Yehudi Menuhin No 3772 (EF)Nib

Writers Limited Edition Mark Twain 2010(M)Nib. serial no.3633/12000.

1985 Meisterstuck 149(EF) & Modern149(OB), 147 Traveler (M) Sp.Edition 1970-1995 Warner Bros Music Artist 146 (M). Mozart (F). 144 Stainless Steel Doue (M), Le Boherme Rouge(M)

Link to comment
Share on other sites

When I read Barry's article on the 149 he briefly mentioned this telescopic filling system and I wanted to know more about it. Thank you for such an educational thread :notworthy1:

Best Regards,

Mikale
