Old Aerometric Converter Not Fitting Late Targas?


gammada
 Share

Recommended Posts

I just gave myself two lovely Targa pens as a birthday gift. One is the Black Laque model, the other is a gold-plated pen with a striped pattern that I've been unable to identify on the sheaffertarga.com site (looks like a Regency sans the black contrasting paint). Both pens came in pretty good condition, with lovely 14k inlaid nibs that were properly treated and taken care of, but unfortunately, both came with cartridge units rather than converters.



Upon returning home and doing the cleaning and the flushing, I tried fitting the aerometric converters from both my Blue Ronce Targa and my Triumph 550 (late 70's, early 80's) into the Black Laque pen which I was planning to use on a daily basis on my desk, but much to my surprise, the converters just won't fit! They are lose and don't seat properly on the newer pens. I was able to fit the entire section of the Blue Ronce into the Black Laque, thou.



I would have expected these pens to be the same as those previously issued, but this seems not to be the case. Are there special or modern converters for these pens?

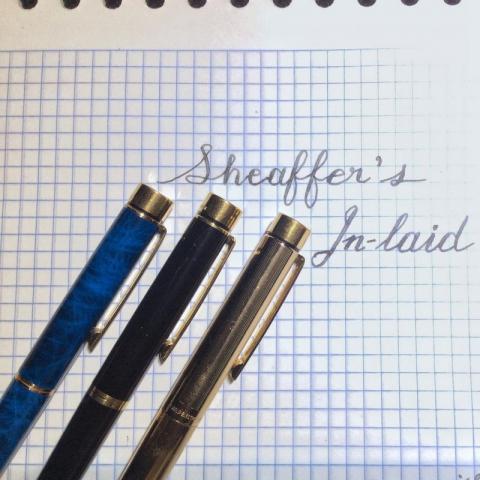

BTW the writing behind the pens was made with the nib from the older one. It gives a lot of line variation within pretty little pressure. A joy!post-115758-0-32350200-1487476359_thumb.jpeg

Edited by gammada
Link to comment
Share on other sites

  • Replies 7
  • Created
  • Last Reply

Top Posters In This Topic

  • jar

    1

  • Flounder

    1

  • gammada

    4

  • corgicoupe

    1

Top Posters In This Topic

Posted Images

Slim Targa pens take a different converter. Are the new pens slimmer than the blue ronce?

Baptiste knew how to make a short job long

For love of it. And yet not waste time either.

Robert Frost

Link to comment
Share on other sites

Hmm it's possible the cartridge piercer has been forced into the section with a non-Sheaffer cart. If you shine a light into the section, do you see a diagonally sliced steel tube?



http://i773.photobucket.com/albums/yy19/flounder2009/New%20Targa/SheafferTargaCartridgeNipple.jpg

Latest pen related post @ flounders-mindthots.blogspot.com : vintage Pilot Elite Pocket Pen review

Link to comment
Share on other sites

Look inside for obstructions.

Nothing seems to be there. Actually the converter goes all the way down but spins freely and doesn't give any feedback as compared to my Blue Ronce or Triumph pens. There's a little feedback when it seats into the section.

Link to comment
Share on other sites

Hmm it's possible the cartridge piercer has been forced into the section with a non-Sheaffer cart. If you shine a light into the section, do you see a diagonally sliced steel tube?



http://i773.photobucket.com/albums/yy19/flounder2009/New%20Targa/SheafferTargaCartridgeNipple.jpg

The piercer is right there on these pens, and there seems to be no deformation or obstructions whatsoever. Gonna go to a Pen Shop to see if the modern converter fits any better.

Link to comment
Share on other sites

The plastic of the plug in the converter can stretch/become compressed over time so that the converter is a loose fit, and there are slight variations in the diameter of the piercing tube. I've had some success in "resetting" the plastic by immersing just the end of the converter in boiling water for 30-40 seconds, then letting it cool. I haven't had to do it to many, but on the ones on which I have, it's worked.

Visit Main Street Pens
A full service pen shop providing professional, thoughtful vintage pen repair...

Please use email, not a PM for repair and pen purchase inquiries.

Link to comment
Share on other sites
