OK. looking at the second picture: Where did it leak? At the point where it is in the section (grip part) of the pen? Or at the shiny end just above the black knurled turning knob?



If the latter: That shiny end can be unscrewed. But it may be glued to the clear plastic (NOT glass) Or it may be sticky because of ink residue. So perhaps heating it up to soften the glue and then gripping it in a rubber covered vise to unscrew it. Then you can clean the piston and apply just a pinprick of silicon grease and put it all together.



The clear hard plastic can get static, and airbubbles can cling to the sides, thus prohibiting free flow (Cohesion and adhesion working). In cartridges a small ball (that locks the new cart) rolls around and breaks up the bubbles, besides that plastic doesn't get as much static. It's the reason I am not fond of these type of converters. I prefer the older squeeze converters.





D.ick



The end of the converter is open, so the ink got past the piston seal and flowed out of the top of the converter after I'd left the pen on the pen stand, cap-side & nib-side up.



I had hoped that the metal piece would unscrew, but I think are right about it being glued. I managed to get the silicon grease down into the back side of the converter when I screwed the piston down. I've worked it up and down a bit, and after two days of writing and standing with the nib pointing up, I've not had any problems.



fpn_1596941623__2020_08_waterman_convert



The picture above shows the top of the screw sticking out of the top of the converter. The white toothpick is just for contrast and to show where there is a gap.



Regarding "a pinprick" of grease ... I'm afraid I packed it in there pretty good. The piston was hard to screw, and it goes up and down much easier now, which was a secondary goal once I figured out that I had access to the screw.



So, what are the unintended consequenses going to be now that the back of the cartridge has a nice gob of silicon grease?

Never argue with drunks or crazy people.


Link to comment
Share on other sites

  • Replies 90
  • Created
  • Last Reply

Top Posters In This Topic

  • Left FPN

    24

  • RMN

    16

  • Wandering Man

    8

  • sztainbok

    3

Top Posters In This Topic

Posted Images



The end of the converter is open, so the ink got past the piston seal and flowed out of the top of the converter after I'd left the pen on the pen stand, cap-side & nib-side up.



I had hoped that the metal piece would unscrew, but I think are right about it being glued. I managed to get the silicon grease down into the back side of the converter when I screwed the piston down. I've worked it up and down a bit, and after two days of writing and standing with the nib pointing up, I've not had any problems.



fpn_1596941623__2020_08_waterman_convert



The picture above shows the top of the screw sticking out of the top of the converter. The white toothpick is just for contrast and to show where there is a gap.



Regarding "a pinprick" of grease ... I'm afraid I packed it in there pretty good. The piston was hard to screw, and it goes up and down much easier now, which was a secondary goal once I figured out that I had access to the screw.



So, what are the unintended consequenses going to be now that the back of the cartridge has a nice gob of silicon grease?



What cartridge? Or did you mean the converter?



Did you apply the "grease" by the route the toothpick is occupating now?





If you can't unscrew the metal sleeve, you could apply the Silicon grease through the mouth of the converter on the top of the toothpick.



Depending on the type of grease you used, and the amount, a glob in the converter could come loose and get into the feed of your pen, producing clogging.







D.ick

~

KEEP SAFE, WEAR A MASK, KEEP A DISTANCE.

Freedom exists by virtue of self limitation.

~







Link to comment
Share on other sites



What cartridge? Or did you mean the converter?



Did you apply the "grease" by the route the toothpick is occupating now?





If you can't unscrew the metal sleeve, you could apply the Silicon grease through the mouth of the converter on the top of the toothpick.



Depending on the type of grease you used, and the amount, a glob in the converter could come loose and get into the feed of your pen, producing clogging.







D.ick





Yes, the converter. Yes, that is the access point I used. It's been several days and there is no leak. Hopefully since the silicon grease is in the backside of the converter it won't migrate past the seal and into the ink. If it does, well it's been fun while it lasted.

Never argue with drunks or crazy people.


Link to comment
Share on other sites

  • 2 weeks later...

I recently had a lovely exchange (and actual exchange of cartridges!) with eharriett -- I had a box of "courtes" (~52 mm) that fit his pen, and he had a box of "longues" (65 mm) for mine, and now we have the cartridges for our respective pens.

I did purchase another glass cartridge-taking pen recently and discovered to my horror a THIRD size, 80 mm. Pictures attached of my two pens that take 65 mm, the new pen that takes 80 mm, and a couple boxes of the "longues" No 22 that are 65 mm.



Matt

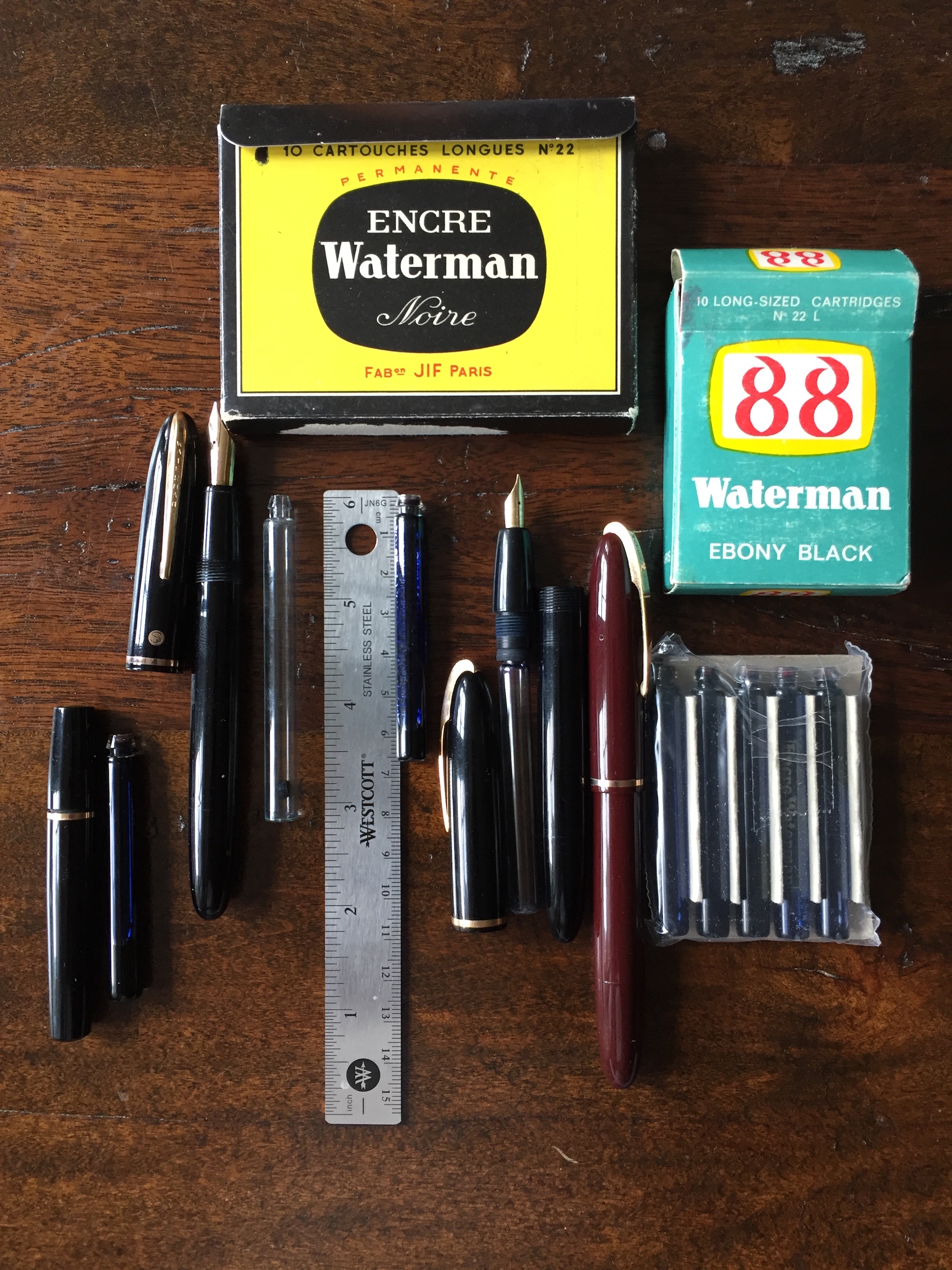

In the first picture, from left:

65 mm cartridge holder and cartridge, the "Waterman a Super Cartouche" with its 80 mm cartridge, then on the other side of the ruler two pens that take the 65 mm cartridges, and a pack of cartridges with from the box above it.

The last photo shows an ad for the "Super Cartouche" (ad from 1954)









fpn_1598202129__jifwatermanglasscartridg

fpn_1598202150__jifwatermanglasscartridg

fpn_1598202624__watermanadsupercartouche

Edited by RedRinger
Link to comment
Share on other sites

I have often put tiny bits of silicon grease into a piston converter by careful use of the grease on the end of a toothpick. Once in I smeared over the inside and worked the piston.

"Don't hurry, don't worry. It's better to be late at the Golden Gate than to arrive in Hell on time."
--Sign in a bar and grill, Ormond Beach, Florida, 1960.





Link to comment
Share on other sites

  • 1 year later...

I have a Waterman Executive fountain pen that I recently bought.  The seller described it as NOS, but it appears used (signs of buildup in the section where you insert the cartridge, and a scratch on the cap) and came with a modern, long Waterman cartridge (same cartridge I use in my Expert 3).  The cartridge appears too big to fit, and did not seem to advance with normal pressure. I used a micrometer to measure the outside diameter of the cartridge and the inside diameter of the pen. The diameters are 6.2 mm and 5.8 mm respectively.  I contacted the seller, and he said "it should be correct cartridge please push in as hard as you can, don't be afraid."  It's not my nature to push that hard on expensive small items that don't appear that sturdy.  Does the advice make sense?

Link to comment
Share on other sites

  • 9 months later...

I just got a Lady Charlotte. It was delivered to work so I took in a Montblanc cartridge to ink it for immediately use. Cart pooped onto section firmly but butt-end was too big to go into barrel. Carefully sealed cart with shipping tape (Corn Poppy Red, so didn't want to waste it.) Tried a non-MB cart when I got home, same thing.



Thought I had a Kaweco squeeze converter somewhere, didn't find that but did find 3 little push/pull piston converters, no markings but maybe generic for Kaweco? Probably got them off ebay back when I bought some Sports.



Converter snapped on tight, not sure if it's locked on nipple on just into section but seal seems secure (no leaks so far). Tested 1st, the converter fits perfectly into the barrel fully-extended, yay.



Used a syringe to transfer the ink from cart to the converter; it holds 2/3 - 3/4 of the cart; stored cart in sample vial to preserve the last little bit.

It's hard work to tell which is Old Harry when everybody's got boots on.

Link to comment
Share on other sites

  • 10 months later...

Hello folks...! What about the current Pelikan converter, would it fit older Watermans (I mean the Gentleman). I have several old converters which fit but I am wondering if anybody actually tested Pelikan and other converters with this model. Thanks!

Link to comment
Share on other sites

Haven't tested it on a Waterman but it should work. I used both for my old Montblancs whose converter (not the modern threaded one) is no longer made.

If you are to be ephemeral, leave a good scent.

Link to comment
Share on other sites

18 hours ago, txomsy said:

Haven't tested it on a Waterman but it should work. I used both for my old Montblancs whose converter (not the modern threaded one) is no longer made.

Thanks for posting but I really need advice from someone who actually tried it out on a Waterman Gentleman pen. The reason is that Waterman has its own converter and everybody says that Watermans are not compatible with other brands' converters. But the Pelikan looks so similar to the Waterman that I just wanted to double check with someone who actually tested it. Cheers!

Link to comment
Share on other sites

I think the incompatibility comes from the diameter of the hole in the mouth of the converter, which is the same in Waterman, Pelikan and old Montblanc (and may be Faber-Castell). So in principle any of the them should work on the others. But you are absolutely right that there is nothing like first-hand experience.
