Camlin 47


  • Please log in to reply
84 replies to this topic

#1 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,602 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 15 July 2008 - 07:48

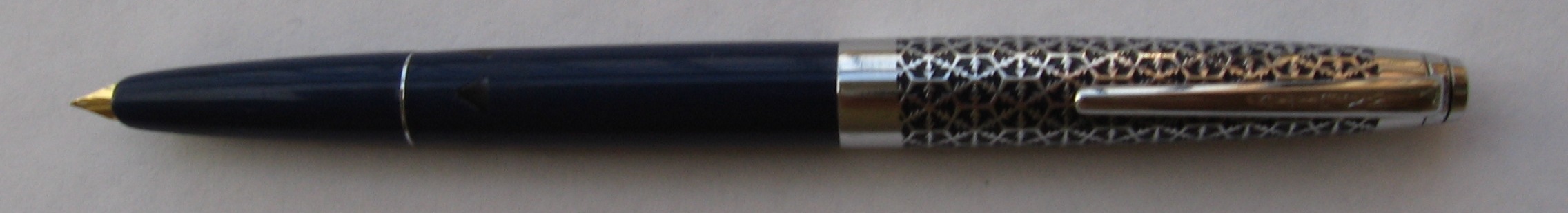

Introduction:

Camlin limited is a famous manufacturer of Stationery products in India. Amongst other items they also manufacture Fountain pen inks under the brandname Camel and fountain pens under the brandname Camlin. The fountain pens feature either the Eyedropper filling system or the Piston filling system. Camlin 47 is of the piston filling type, the other piston filler model is called the Camlin sleek. Camlin Product Range




Writing:

The pen features a semi hooded steel nib whose width is around a western fine. The nib is quite smooth and makes an even and wet line.

Filling System:

The ink level can be viewed with the help of four diamond shaped windows in the barrel. The follwing photos show the window when the piston is fully retracted to fully extended. The piston system is quite smooth and probably as smooth as that on my Lamy2k, but not as smooth as the Pelikan ones.






The piston removed from barrel. It has three sealing rings.


The cap is made of steel with a sturdy and easy to use clip. The pen is gripped with the help of a three finger clutch, there is a breather hole on the top side of the cap to facilitate safe capping and uncapping of the pen.


Comfort/Ergonomics:

The shape of the pen is a gently tapering one with a long section which makes for a very comfortable grip.



Serviceability:

The section can be easily unscrewed from the barrel for cleaning, servicing or nib replacement.



The nib and feed are assembled into a cylindrical carrier. This carrier can be slid out from the barrel end of the section. The carrier has longitudinal grooves to adjust the angle of the nib wrt the hood.


The Ebonite feeder removed from carrier.



Conclusion:

I first used this pen in school in 1986, it is a solid and reliable writer and holds a ton of ink, but some what lesser as compared to an ED pen. it is a good pen for office or shop floor use where you want a sober pen which does not attract any attention, moreover the cost of the pen is so small that you need not worry about losing or damaging it.

Edited by hari317, 15 July 2008 - 07:54.

In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

Sponsored Content

#2 Abhik

Abhik

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 503 posts
  • Location:Accra, Ghana;
  • Flag:

Posted 15 July 2008 - 08:46

Hari,
Thanks for this review! I did not know this pen's existence before you mentioned it to me! Photos are good. You have explained it so well! I purchased one ED filler pen during my last holiday in India & was pleasantly surprised with its performance! Very fine & smooth nibs. Wet lines. No leaking.
You have emphasised correctly, prices are so low, even if you loose a pen or two, its not going to create any dent in your pocket.
Kind regards,
Abhik.

#3 HDoug

HDoug

    First Class Forever

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPip
  • 3,813 posts
  • Location:Honolulu, Hawaii, USA
  • Flag:

Posted 15 July 2008 - 08:52

Thanks much for the review and the pics! I had no familiarity of these pens until reading your review. Very fascinating.

Doug

#4 Sharkle

Sharkle

    BPillar

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 661 posts

Posted 15 July 2008 - 19:31


Hi Hari, that is a nice looking pen! And thank you for providing such excellent and detailed pictures. Great review, and add me to the list of the previously unaware of this brand. I haven't had time to explore much of the site yet, but I will be diggng around soon enough. BTW, I really like the width of your pen. Nice colors, too, and I always appreciate an ink window. happyberet.gif


#5 bizerkel

bizerkel

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 127 posts

Posted 15 July 2008 - 19:41

That looks remarkably like the Wality 77, also an Indian piston filler. It has very nearly the same feed & nib assembly. The ink windows are triangles instead of diamonds, and the cap is more intricately designed, but they seem to be cut from a similar mold. Anybody know if there are any connections between these two companies?


#6 JulioPB

JulioPB

    Julio

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 796 posts
  • Flag:

Posted 15 July 2008 - 19:51

QUOTE (hari317 @ Jul 15 2008, 02:48 AM) <{POST_SNAPBACK}>
Introduction:

Camlin limited is a famous manufacturer of Stationery products in India. Amongst other items they also manufacture Fountain pen inks under the brandname Camel and fountain pens under the brandname Camlin. The fountain pens feature either the Eyedropper filling system or the Piston filling system. Camlin 47 is of the piston filling type, the other piston filler model is called the Camlin sleek. Camlin Product Range




Writing:

The pen features a semi hooded steel nib whose width is around a western fine. The nib is quite smooth and makes an even and wet line.

Filling System:

The ink level can be viewed with the help of four diamond shaped windows in the barrel. The follwing photos show the window when the piston is fully retracted to fully extended. The piston system is quite smooth and probably as smooth as that on my Lamy2k, but not as smooth as the Pelikan ones.






The piston removed from barrel. It has three sealing rings.


The cap is made of steel with a sturdy and easy to use clip. The pen is gripped with the help of a three finger clutch, there is a breather hole on the top side of the cap to facilitate safe capping and uncapping of the pen.


Comfort/Ergonomics:

The shape of the pen is a gently tapering one with a long section which makes for a very comfortable grip.



Serviceability:

The section can be easily unscrewed from the barrel for cleaning, servicing or nib replacement.



The nib and feed are assembled into a cylindrical carrier. This carrier can be slid out from the barrel end of the section. The carrier has longitudinal grooves to adjust the angle of the nib wrt the hood.


The Ebonite feeder removed from carrier.



Conclusion:

I first used this pen in school in 1986, it is a solid and reliable writer and holds a ton of ink, but some what lesser as compared to an ED pen. it is a good pen for office or shop floor use where you want a sober pen which does not attract any attention, moreover the cost of the pen is so small that you need not worry about losing or damaging it.



Hi Hari:

Nice pens. I visited the Camlin web site, they produce nice products, but, How can they produce and sell fountain pens from Us$27 cents to one dollar?, It is amazing!!!

I am going to write them to see if they are willing to export some to Mexico.

Julio


#7 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,602 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 16 July 2008 - 07:50

QUOTE (bizerkel @ Jul 16 2008, 01:11 AM) <{POST_SNAPBACK}>
That looks remarkably like the Wality 77, also an Indian piston filler. It has very nearly the same feed & nib assembly. The ink windows are triangles instead of diamonds, and the cap is more intricately designed, but they seem to be cut from a similar mold. Anybody know if there are any connections between these two companies?


Yes, these two models(Camlin 47 and Airmal 77) look very similar externally. In fact Wality sells this same 77 here with a plain steel cap which makes them look even more similar. Internally the piston and actuation mechanism have differences. The nib is different, the section ring washer thickness is much different and these two companies are in no way related.

The Camlin plastic also looks tougher IMHO.

Regards,
Hari

Edited by hari317, 16 July 2008 - 07:53.

In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

#8 graceaj

graceaj

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 480 posts
  • Location:Buffalo, NY

Posted 16 July 2008 - 13:16



A good-looking pen. I sure hope I'll be getting one of these. I included Camlin and Airmail/Wality specifically when I told my father to get me some Indian pens, and I hope he can find some. Seriously though, are the prices on the website what you'll get in the stores? Seems really unbelievable, if the impression I have that they're pretty well-made is correct.
Looking to exchange ink samples! Available: Noodler's Bulletproof Black, Noodler's 54th Massachusetts, Noodler's Black Swan in English Roses, Noodler's Bad Belted Kingfisher, Noodler's Operation Overlord Orange

#9 bluemoon

bluemoon

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 333 posts
  • Location:Toronto, Canada

Posted 17 July 2008 - 07:33

Excellent review Hari, and as always, mindblowing photos thumbup.gif . I am not familier with this model, but I do remember Camlin 'moti' very fondly, a similar pistom filler with an big open nib and a gold washed clip.
It was a truely rugged pen, of excellent quality. I used quite a few of those in my school & sophomore years. I could not find another of those now, but if I find one I will be very happy. In 2003/4 it cost around 50 rupees. A steal for its price, I must say. Of the four or five I used, not a single one ever leaked, or sufered from cracks or failed piston(that too in the hand of a school student!!!) If you know that model is available, please let me know... It will make me remember those school days just a few (or should I say very few?) years ago which now
seem so distant past..


QUOTE (graceaj @ Jul 16 2008, 06:46 PM) <{POST_SNAPBACK}>
A good-looking pen. I sure hope I'll be getting one of these. I included Camlin and Airmail/Wality specifically when I told my father to get me some Indian pens, and I hope he can find some. Seriously though, are the prices on the website what you'll get in the stores? Seems really unbelievable, if the impression I have that they're pretty well-made is correct.


Yes, you should try getting a few of camlin/airmail pens. They are of truely astonishing quality,
considering their price... or you may try to procure a Rathnamsan.. I have see those (though
I am not so lucky to own one.. maybe one day I will if I ever have the money or the opportunity..
they do not sell their pens in every grocery shop around..). Those are really something for the lifetime. You should ask Hari.

Though I do not like most of the Chinese product, here chinese pens too are available cheaply.
Last month I purchased two hero and two wing sung for Rs 60/- ( 1$ = 40 (+/-1 )Rs.). Those are
very good to convert non fp people...

"This is my prayer to thee, my lord---strike,
strike at the root of penury in my heart.
Give me the strength lightly to bear my joys and sorrows.
Give me the strength to make my love fruitful in service.
Give me the strength never to disown the poor
or bend my knees before insolent might.
Give me the strength to raise my mind high above daily trifles.
And give me the strength to surrender my strength to thy will with love. "


Rabindranath Tagore.

#10 Aysedasi

Aysedasi

    24 Heures du Mans and Oblique Addict

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 4,076 posts
  • Location:New Forest, England
  • Flag:

Posted 17 July 2008 - 11:26

Really good review Hari, thank you smile.gif

#11 georges zaslavsky

georges zaslavsky

    vintageandmodernpenslover

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 12,033 posts
  • Location:France
  • Flag:

Posted 17 July 2008 - 20:11

quite interesting pen
Pens are like watches , once you start a collection, you can hardly go back. And pens like all fine luxury items do improve with time

#12 pbhat

pbhat

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 114 posts
  • Location:Navi Mumbai
  • Flag:

Posted 23 July 2009 - 10:26

QUOTE (georges zaslavsky @ Jul 18 2008, 01:41 AM) <{POST_SNAPBACK}>
quite interesting pen

I have used Camlin 47 grey coloured for about 2 years in the mid 1970's when I was at Primary school. I have fond memories of this pen and was facinated with ink filing system which was unique to me and I used to demonstrate it to my classmates. I think the pen is still lying inside my desk in our old house.

After going through the full circle of ball point and gel pens, I am now a reborn fountain pen enthusiast and my pick is Sheaffer Targa from NOS bought at Mumbai uninked which I have put to daily use. Writing pleasure gets a full new meaning with fountain pens and with my Targa.

#13 ZeissIkon

ZeissIkon

    Donor Pen

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 4,247 posts
  • Location:North Carolina

Posted 23 July 2009 - 23:26

QUOTE (JulioPB @ Jul 15 2008, 03:51 PM) <{POST_SNAPBACK}>
Nice pens. I visited the Camlin web site, they produce nice products, but, How can they produce and sell fountain pens from Us$27 cents to one dollar?, It is amazing!!!


Probably has to do with being able to source labor at a couple dollars a day -- same way the Chinese do it, in other words.
Does not always write loving messages.
Does not always foot up columns correctly.
Does not always sign big checks.

#14 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,602 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 24 July 2009 - 11:00

QUOTE (pbhat @ Jul 23 2009, 03:56 PM) <{POST_SNAPBACK}>
I have used Camlin 47 grey coloured for about 2 years in the mid 1970's when I was at Primary school. I have fond memories of this pen and was facinated with ink filing system which was unique to me and I used to demonstrate it to my classmates. I think the pen is still lying inside my desk in our old house.

After going through the full circle of ball point and gel pens, I am now a reborn fountain pen enthusiast and my pick is Sheaffer Targa from NOS bought at Mumbai uninked which I have put to daily use. Writing pleasure gets a full new meaning with fountain pens and with my Targa.


Thanks for that input, I thought the pen was introduced in the mid 80s when I was a student. Targa is a nice pen, may I ask the shop where you bought it from in Mumbai?

Best,
Hari


In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

#15 kethiemann

kethiemann

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 222 posts
  • Location:Arkansas and Delhi, India
  • Flag:

Posted 12 March 2011 - 17:55

What are marvelous review. This looks like the Parker 45 semi hoode nib style. I am working in Delhi. I see you are in Mumbai so I'm hoping I will also be able to pick one of these up here.

#16 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,602 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 13 March 2011 - 08:24

What are marvelous review. This looks like the Parker 45 semi hoode nib style. I am working in Delhi. I see you are in Mumbai so I'm hoping I will also be able to pick one of these up here.


These should be available in Delhi, just try to spot stationery shops selling stuff to students. This pen is based on the Montblanc Monterosa piston filler pens from the 60s and 70s.
In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

#17 rishi

rishi

    Mint

  • Member - Gold

  • PipPipPipPip
  • 62 posts
  • Flag:

Posted 05 June 2011 - 14:37

Very nice review Hari...it reminded me of my school days when handling a FP means one of the finger tip will always be blue...well it will encourage the indian pen manufacturers aswell....u doing a gud job..


#18 AgraWallah

AgraWallah

    NOS (New Old Stock)

  • Member - Silver

  • PipPip
  • 16 posts
  • Location:Agra, India
  • Flag:

Posted 19 March 2012 - 08:35

quote:" I am not familier with this model, but I do remember Camlin 'moti' very fondly, a similar pistom filler with an big open nib and a gold washed clip."


it was Chelpark Moti which also Hari has reviewed. by d way, i also want chelpark moti for curiosity.

#19 bk123

bk123

    Long Live FPN

  • Member - Gold

  • PipPipPipPipPipPip
  • 280 posts
  • Flag:

Posted 19 March 2012 - 18:07

What are marvelous review. This looks like the Parker 45 semi hoode nib style. I am working in Delhi. I see you are in Mumbai so I'm hoping I will also be able to pick one of these up here.


These should be available in Delhi, just try to spot stationery shops selling stuff to students. This pen is based on the Montblanc Monterosa piston filler pens from the 60s and 70s.


Thanks Hari for such a detailed review. I would rather name you as "Senior Pen Surgeon" Hari :notworthy1: :notworthy1:

Kethiemann, you can purchase these camlin sleek FP online at www.studyneeds.com. Please search there as camlin fountain pen otherwise you will not be able to find these pens from direct links there. It's a new website and there is some problem with direct links in the website. But search is working good. Price is INR 52.
In case you are not able to get these pens please let me know or call me (9871571404)I will try to find these for you.

"It's simple to be happy but difficult to be simple"


#20 AgraWallah

AgraWallah

    NOS (New Old Stock)

  • Member - Silver

  • PipPip
  • 16 posts
  • Location:Agra, India
  • Flag:

Posted 22 March 2012 - 20:27

please compare this pen with other indian models. Do you like this pen. i have right now only trinity, 47 and some cheaper chelpark models. i am not happy(for strange reason not known for me myself) with for 47 though it writes flawlessly. perhpaps this is not giving me the 'feeling' of big open nibs. waiting for your comments.

Edited by agraguy, 22 March 2012 - 21:12.
