Capless Ebonite Cigar Shaped Pen With Bulkfiller

lamy 2000 visualted section visualted barrel capless bulkfiller x-ray flex nib

  • Please log in to reply
10 replies to this topic

#1 Hardy08

Hardy08

    Near Mint

  • Member - Gold

  • PipPipPip
  • 44 posts

Posted 08 June 2020 - 21:20

Here is the my latest pen!

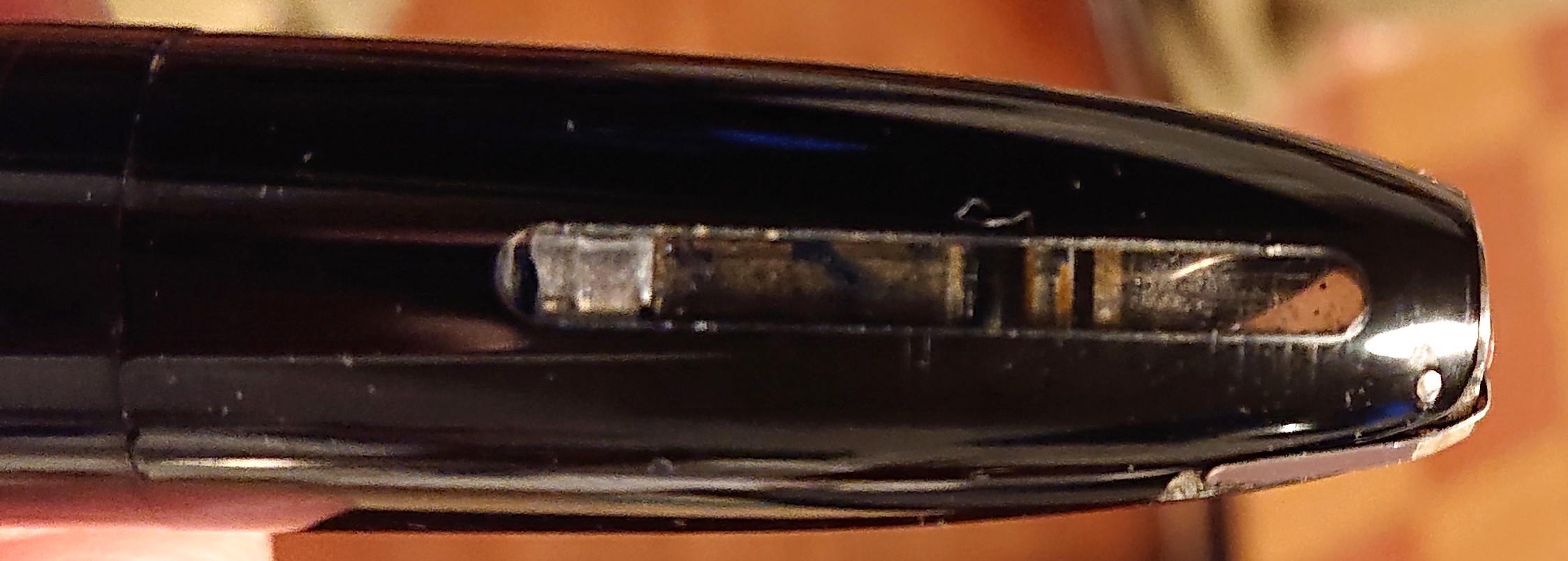

This is an ebonite pen, with an acrylic window within the section and the barrel.

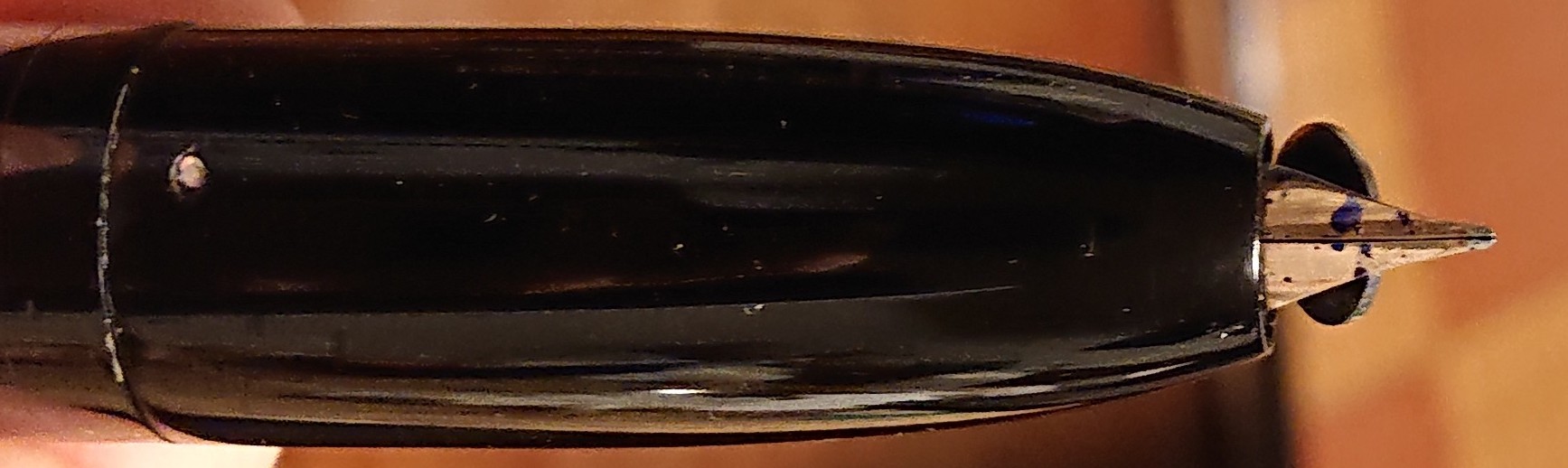

It is a capless pen with a twist mechanism, similar to the safety pen one. Twisting the section onto the barrel allows the nib to come in and out.

The nib is juicy and flexible (Wahl eversharp #2).

The filling mechanism is a copy of Fountainbell's bulkfiller with a modified magnetic (neodymium magnet) mechanism to retain the filling pellet.

The barrel end is decorated with an amethyst.



The pen length is 12,6 mm length closed and 13,4 mm opened, the maximum diameter is 16mm.

The filling capacity is 3,5ml with a regular stroke but can be extended to 4,2ml expelling the air of the pen, penpoint up and resucking ink again.

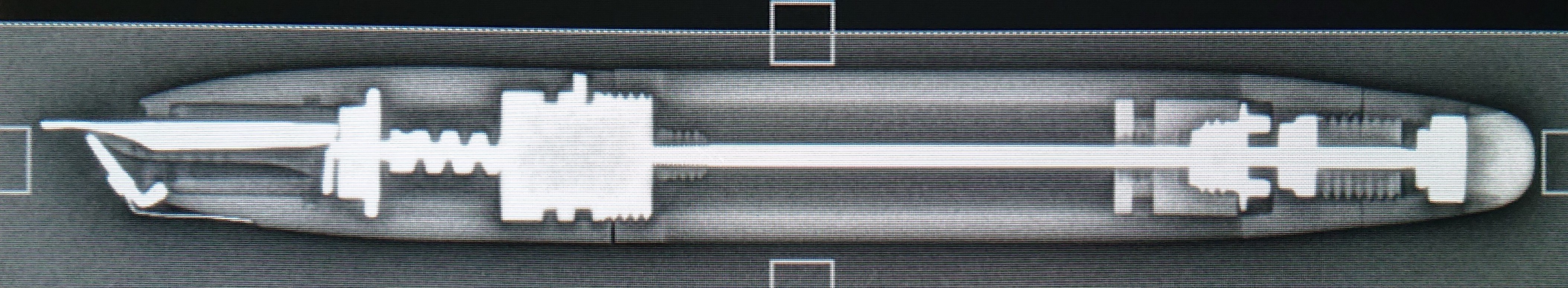

Here are the pictures and the X-ray of the pen.






















Edited by Hardy08, 08 June 2020 - 21:31.


Sponsored Content

#2 PAKMAN

PAKMAN

    Say that again, I have a pen here somewhere...

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • 28,763 posts
  • Location:Arkansas, USA
  • Flag:

Posted 08 June 2020 - 21:49

Um, Wow! Congrats!


PAKMAN


minibanner.gif             fpn_1321906507__vanness_sign.jpg

                  My Favorite Pen Restorer                            My favorite Brick and Mortar

                                                                   now selling online!


#3 inkstainedruth

inkstainedruth

    Ancient Artifact

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 19,026 posts
  • Flag:

Posted 09 June 2020 - 02:23

Wow.  That's a hefty looking pen.  I just did a quick check of the technical specs on a TWSBI 580-AL and that's bigger around than the cap diameter on the TWSBI, and I'm now wondering if it's larger in diameter than my largest pen (the vintage Sheaffer Balance Oversize that had been my husband's grandfather's pen).  Of course that's not a heavy pen in spite of its size -- which is why I looked up the 580-AL specs, since that and the purple 580-ALR are my two heaviest pens (and are now the benchmark I use for "Is this going to be too heavy for my hand).

Ruth Morrisson aka inkstainedruth


"It's very nice, but frankly, when I signed that list for a P-51, what I had in mind was a fountain pen."

#4 markiv

markiv

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 983 posts
  • Flag:

Posted 09 June 2020 - 03:17

Now that's innovative - love it!


Posted Image

#5 Hardy08

Hardy08

    Near Mint

  • Member - Gold

  • PipPipPip
  • 44 posts

Posted 09 June 2020 - 05:00

Thank you Markiv and Pakman !
@ Ruth: the pen weighs 32 grams filled and feels quite light in the hand after all...

#6 BrassRatt

BrassRatt

    Curious Character

  • Member - Gold

  • PipPipPipPipPip
  • 104 posts
  • Location:California
  • Flag:

Posted 09 June 2020 - 05:25

That's fascinating!



Does the operculum simply spring closed (pushed open by the nib), or is there a mechanical actuator opening it?



What is the radio-dense dome at the very end of the barrel?



I like the girth of it. My fattest pens are the most comfortable -- Sheaffer PFM, Kim ACR Jumbo, ...



Thank you for sharing this!



#7 Hardy08

Hardy08

    Near Mint

  • Member - Gold

  • PipPipPip
  • 44 posts

Posted 09 June 2020 - 05:32

Thank you BrassRatt !
The radio dense dome is the amethyst and the operculum is spring closed indeed,I tried to build a kind of crescent opening like Stipula da vinci one but I couldn't find a way...

#8 Inspector

Inspector

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 320 posts
  • Flag:

Posted 10 June 2020 - 15:39

Well done! An accomplishment few pen companies can take credit for.



Pete



#9 peroride

peroride

    Write now, enjoy pen

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 447 posts
  • Flag:

Posted 20 June 2020 - 19:07

Another Wow! looks like a Lamy Dialog Namiki Emperor Conid Piedimonte love child that could fly! Very cool, congrats on the innovations.  :notworthy1:



#10 basterma

basterma

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,175 posts
  • Location:Beijing
  • Flag:

Posted 22 June 2020 - 11:28

Nice work!



#11 inkstainedruth

inkstainedruth

    Ancient Artifact

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 19,026 posts
  • Flag:

Posted 22 June 2020 - 21:10

Thank you Markiv and Pakman !
@ Ruth: the pen weighs 32 grams filled and feels quite light in the hand after all...



That would probably be too heavy for me.  I have girly hands....
