Decomposing Green Coronet End

coronet eversharp

  • Please log in to reply
18 replies to this topic

#1 VacNut

VacNut

    Mint

  • Member - Gold

  • PipPipPipPip
  • 60 posts
  • Flag:

Posted 11 April 2020 - 23:02

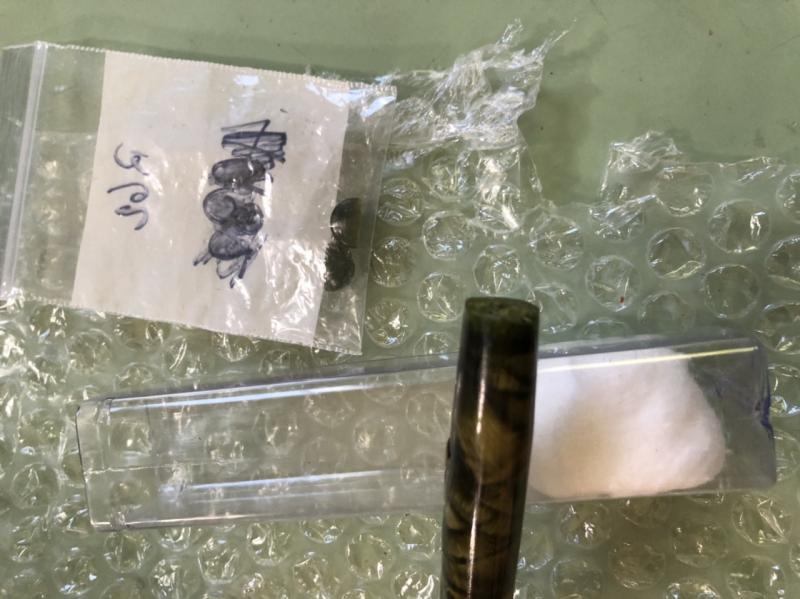

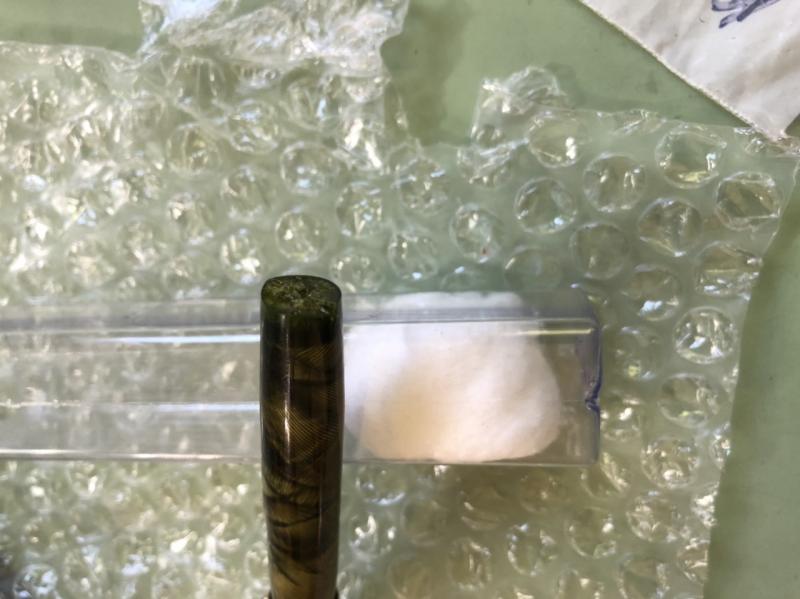

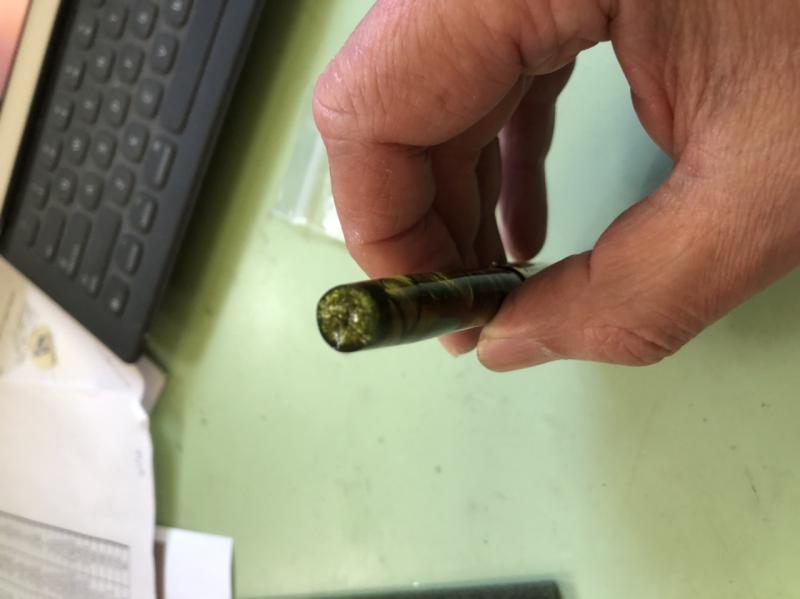

I was aware that the clear sections of the Coronet were temperamental, but I wasnt aware that the ends were subject to decomposition. Has anyone come across this issue? I have searched the forum, but didnt find any information.
As with all pens that degrade, there may be no hope 😭😢
0D2C66A8-7EB0-4B50-93C3-D81F4622576D.jpeg 90ACA28E-6FED-46C5-AD86-24403DE86183.jpeg 2B51E90B-2345-45EF-B4E2-7ABD928BEEE6.jpeg

Sponsored Content

#2 Addertooth

Addertooth

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 677 posts
  • Flag:

Posted 12 April 2020 - 02:34

Short answer is yes, but some colors are more resistant than others.  Some colors are much more succeptable.  Black is recognized as the safest color.



#3 Parker51

Parker51

    Old dog

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,764 posts
  • Location:North America, U.S.A., Ohio, Delaware Cty
  • Flag:

Posted 12 April 2020 - 02:49

This is a known potential problem. I have a friend who as a result of this does not collect this pen and instead sells them if he somehow gets one (such as can happen when buying a lot) so as to not be the person who ends up with a disintegrating pen.

#4 Paul-in-SF

Paul-in-SF

    Slightly Dusty

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 646 posts
  • Location:San Francisco
  • Flag:

Posted 12 April 2020 - 04:04

Usually, as I understand it, the end of the pen changes from the original marbled color to translucent, which is the signal that disintegration might begin at any time. I have an otherwise lovely Doric II vac filler with this problem.



Also, apparently, the process of disintegration emits a gas that can cause bad effects on other celluloid pens that are close by, so if you have such a pen don't store it in a closed space with other such pens.



#5 VacNut

VacNut

    Mint

  • Member - Gold

  • PipPipPipPip
  • 60 posts
  • Flag:

Posted 12 April 2020 - 04:46

This was a complete surprise to me, when I looked at the pen. I keep it in a converted cigar box in a cabinet. I thought keeping it out of sunlight and in a climate controlled space was enough, but reading through the research, it looks like it is best to keep it in an open box or stored with a zeolite archival paper.

Are the Eversharp more susceptible than other celluloid pens? The Parker vacumatics don’t seem to have this problem, except the Ripleys. Does anyone know if the Italian pens from the 30’s ha e this problem.

I am at a loss what is considered an open box or how to keep the rest of my celluloid pens safe. Any recommendations would be appreciated.

#6 Addertooth

Addertooth

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 677 posts
  • Flag:

Posted 12 April 2020 - 14:17

Yes, many other brands have the exact same problem.  I have one pen which did not discolor in any way, but it crumbled at the end when I took a polishing cloth to it. But I do agree that normally the celluloid will become a "more pale" color as a sign of failure in the future.  How far in the future?   Hard to say, I have heard of some that limped on for over a decade, and others that went dramatically bad in months.



#7 VacNut

VacNut

    Mint

  • Member - Gold

  • PipPipPipPip
  • 60 posts
  • Flag:

Posted 12 April 2020 - 14:36

I am going to have to spend more time looking through the pens to check for degradations. I noticed the pen because of black markings on the gold cap, which I attributed to ink stains. I am guessing that the marks may be corrosion from the acidic fumes.

I keep the pen in a converted wooden cigar box with matte board trays. I was worried about the cedar, as Syd had mentioned potential out-gassing from wood. Looking through Richard Binder’s site, I see he has written about cedar boxes. I am going to drill a few discreet holes into the boxes for venting.

#8 sansenri

sansenri

    Donor Pen

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 3,105 posts
  • Flag:

Posted 12 April 2020 - 15:00

When celluloid starts its degradation process (at a faster pace than normal) there is not much you can do about it.

It is likely that the particular batch of celluloid was not cured as accurately as others.

(for reasons that are not well known, lighter colour celluloids seem to be more unstable than darker)

What you need to do is store it in a open box and far from other celluloid pens.

The out-gas is nitric acid, which can worsen the degradation itself if kept in a confined space, corrode metal trims, and spread the degradation to other nearby celluloids.

I have an Omas in celluloid which is suffering from this problem (there is some noticeable warping in the celluloid body and the brass ring on the final has turned green from oxidation.

What I do is use it and store it in a cardboard box without the lid, this seem to have slowed down the degradation.

Unfortunately the celluloid degradation seems to be affecting also the inside of the pen. I have found that if leave the barrel full of water with time the water inside turns yellow...

Before I became aware of this I used the pen and filled it with JH Midnight blue, the ink in the bottle has now changed colour and is now a sort of purplish blue. (I assume the ink might have been affected by the acid, I now use this ink only for this pen).

So be careful when filling it...

On the other hand, since it's likely to die earlier than other pens I own, I use it more...



#9 ihimlen

ihimlen

    forEVERSHARP

  • Member - Gold

  • PipPipPipPipPipPip
  • 266 posts
  • Location:London
  • Flag:

Posted 02 July 2020 - 11:49

Im quite surprised to see this on the Green coronets, first time Ive ever seen this on these pens (I did see this on some 2nd ten Dorics in shell celluloid, mostly gold shell and on some Pacemakers). I guess this has a lot to do with the curing time of celluloid and the fact that the shell celluloid was formed by tubular wrapping and then the ends (cap/barrel) were formed by applying heat with the end plugs solvent welded in place. Some batches of celluloid may not have cured properly or too much heat (for too long) may have been applied on some pens which was not evident at the point of manufacture but which resulted in slow crystallisation and gradual decombobulation over the years. Thats my theory on these at least...

Edited by ihimlen, 02 July 2020 - 11:53.

ihimlen
www.opiorach.blogspot.com
www.forumopiorach.net

#10 VacNut

VacNut

    Mint

  • Member - Gold

  • PipPipPipPip
  • 60 posts
  • Flag:

Posted 02 July 2020 - 14:40

Im quite surprised to see this on the Green coronets, first time Ive ever seen this on these pens (I did see this on some 2nd ten Dorics in shell celluloid, mostly gold shell and on some Pacemakers). I guess this has a lot to do with the curing time of celluloid and the fact that the shell celluloid was formed by tubular wrapping and then the ends (cap/barrel) were formed by applying heat with the end plugs solvent welded in place. Some batches of celluloid may not have cured properly or too much heat (for too long) may have been applied on some pens which was not evident at the point of manufacture but which resulted in slow crystallisation and gradual decombobulation over the years. Thats my theory on these at least...


I was very disappointed when I saw the pen. I thought primarily Doris had this problem. .
I sent the pen out for repair. The damage was only at the end and not down onto the barrel. The end is being re-built. I will post pics of the repair when I get it back.

#11 RoyalBear

RoyalBear

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 581 posts
  • Location:Garland County, Arkansas, U.S. of A.
  • Flag:

Posted 22 July 2020 - 23:43

I was very disappointed when I saw the pen. I thought primarily Doris had this problem. .
I sent the pen out for repair. The damage was only at the end and not down onto the barrel. The end is being re-built. I will post pics of the repair when I get it back.



I have a Pacemaker where the end of the cap disintegrated. Where are you getting yours repaired and are they matching the color of your barrel?



#12 VacNut

VacNut

    Mint

  • Member - Gold

  • PipPipPipPip
  • 60 posts
  • Flag:

Posted 23 July 2020 - 15:28

I have a Pacemaker where the end of the cap disintegrated. Where are you getting yours repaired and are they matching the color of your barrel?


I have sent the pen in for repairs. They are rebuilding the end by applying multiple layers of a thickened celluloid. It will take several months to rebuild the end. There is topic on this forum of someone rebuilding a Doric by softening parts of a sacrificial barrel and fusing the multiple layers together to replicate a tip.
I will update the group when I receive the pen.

#13 PAKMAN

PAKMAN

    Say that again, I have a pen here somewhere...

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • 28,753 posts
  • Location:Arkansas, USA
  • Flag:

Posted 24 July 2020 - 02:05

I was so very close to buying a Doric at a pen show when a friend said take another look at the crazing on the end. Once they start it's down hill from there. Waterman 100 years in certain colors have this problem often too.


PAKMAN


minibanner.gif             fpn_1321906507__vanness_sign.jpg

                  My Favorite Pen Restorer                            My favorite Brick and Mortar

                                                                   now selling online!


#14 Ron Z

Ron Z

    Museum Piece

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPipPip
  • 9,974 posts

Posted 24 July 2020 - 13:13

...except that the HYP can be rebuilt, with excellent results.


Visit Main Street Pens
A full service pen shop providing professional, thoughtful vintage pen repair...

Please use email, not a PM for repair and pen purchase inquiries.


#15 PAKMAN

PAKMAN

    Say that again, I have a pen here somewhere...

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • 28,753 posts
  • Location:Arkansas, USA
  • Flag:

Posted 24 July 2020 - 15:10

True that! I've seen some rebuilt 100 Yr Waterman pens that look awesome! Ron, do you make this repair?


PAKMAN


minibanner.gif             fpn_1321906507__vanness_sign.jpg

                  My Favorite Pen Restorer                            My favorite Brick and Mortar

                                                                   now selling online!


#16 Ron Z

Ron Z

    Museum Piece

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPipPip
  • 9,974 posts

Posted 24 July 2020 - 15:20

True that! I've seen some rebuilt 100 Yr Waterman pens that look awesome! Ron, do you make this repair?

I do.


Visit Main Street Pens
A full service pen shop providing professional, thoughtful vintage pen repair...

Please use email, not a PM for repair and pen purchase inquiries.


#17 Bobby Check

Bobby Check

    Bobby Check

  • Premium - Ruby

  • PipPipPipPipPipPipPipPip
  • 961 posts
  • Location:Calgary, Alberta, Canada
  • Flag:

Posted 02 August 2020 - 13:01

Ron has repaired some of my Hundred Year Pens and the results are wonderful.



Bobby


Why carry one pen when four will do!

Member of the Calgary Pen Club: <A href="http://www.calgarypenclub.com/" target=_blank>http: //www.calgarypenclub.com/

#18 Ron Z

Ron Z

    Museum Piece

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPipPip
  • 9,974 posts

Posted 03 August 2020 - 22:34

What scares me with some of the celluloids is that contact with solvent can exacerbate and accelerate decay.  I've tried solvent welding the Sheaffer gray red veined celluloid.  Within a few months the repair air starts to craze and crack.  I'll have to change my approach before I can take any in.



The same with some of the Wahl celluloid, green, and black and pearl in particular.  I'm using the same solvent, and same repair techniques that I usually use.  By contrast, a solid color pen, Parker celluloids (even most of the Vacumatic material) or the striped Sheaffer celluloids are very stable, and can take about anything that I need to do to repair them.



Building up celluloid is indeed a time consuming project.  There are ways to speed that up a bit, but it still takes time, sometimes a very long time.


Visit Main Street Pens
A full service pen shop providing professional, thoughtful vintage pen repair...

Please use email, not a PM for repair and pen purchase inquiries.


#19 VacNut

VacNut

    Mint

  • Member - Gold

  • PipPipPipPip
  • 60 posts
  • Flag:

Posted 06 August 2020 - 05:11

What scares me with some of the celluloids is that contact with solvent can exacerbate and accelerate decay.  I've tried solvent welding the Sheaffer gray red veined celluloid.  Within a few months the repair air starts to craze and crack.  I'll have to change my approach before I can take any in.



The same with some of the Wahl celluloid, green, and black and pearl in particular.  I'm using the same solvent, and same repair techniques that I usually use.  By contrast, a solid color pen, Parker celluloids (even most of the Vacumatic material) or the striped Sheaffer celluloids are very stable, and can take about anything that I need to do to repair them.



Building up celluloid is indeed a time consuming project.  There are ways to speed that up a bit, but it still takes time, sometimes a very long time.

I was quoted several months for the repair, depending on how quickly the layers set. Either way, I think I will stay away from Eversharp celluloid pens.
