M101 N Piston Assembly.

m101n piston disassembly

  • Please log in to reply
6 replies to this topic

#1 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,893 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 12 January 2020 - 16:14

Was getting stiff after nearly 9 years since purchased new. Homemade 7.8mm spanner. LH threads.

fpn_1578845034__c5159cfc-6d73-4bf9-83ef-

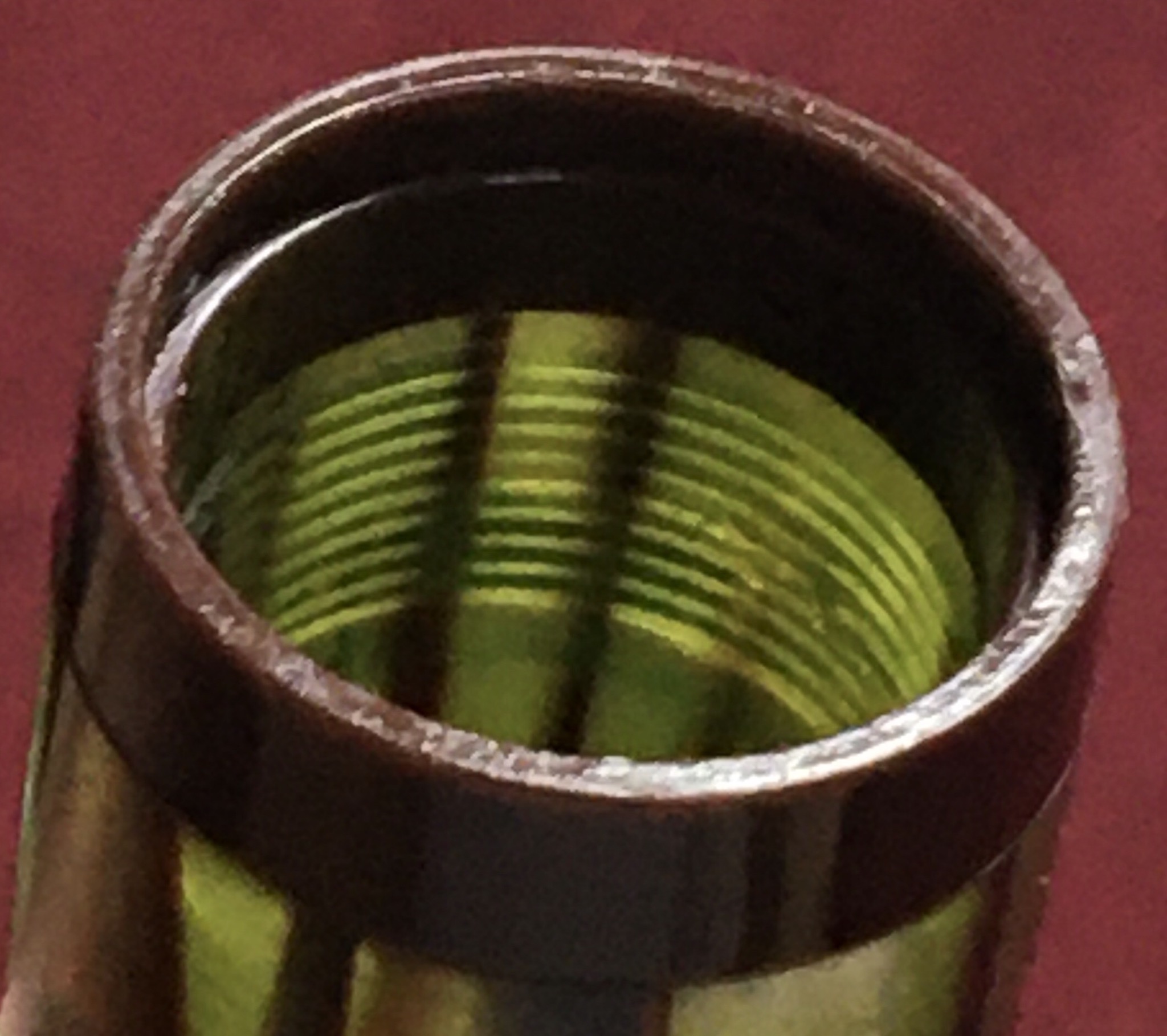

fpn_1578845142__f5e51cf4-dd95-46b9-97a4-

Another way to do is from nib unit end. Easy access and no tools needed. But I prefer to remove the filler on pens its possible on and grease the seal walls. Ymmv.

Hope the pics help someone else attempting DIY.
In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

Sponsored Content

#2 jccjr

jccjr

    Near Mint

  • Member - Gold

  • PipPipPip
  • 48 posts
  • Location:San Francisco Bay Area
  • Flag:

Posted 12 January 2020 - 17:54

Impressive!



#3 markiv

markiv

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 978 posts
  • Flag:

Posted 12 January 2020 - 20:25

Very nice - I have been eyeing the M101 since it has become much more affordable. Thanks.


Posted Image

#4 The Good Captain

The Good Captain

    Gaston F Limoges

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 5,798 posts
  • Location:Shropshire, Great Britain
  • Flag:

Posted 12 January 2020 - 22:18

After my 101N Lizard 'came apart (I did send it back to Pelikan) I realised that the piston would unscrew. An old credit card with a notch of the right size works as well as a spanner.


The Good Captain

"Meddler's 'Salamander' - almost as good as the real thing!"


#5 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,893 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 13 January 2020 - 02:57

Impressive!

thanks



Very nice - I have been eyeing the M101 since it has become much more affordable. Thanks.

thanks



 An old credit card with a notch of the right size works as well as a spanner.

very true, I made a similar tool earlier before switching to a Fountainbel made spanner for my m800/m1000



http://www.fountainp...l/#entry1588807








In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

#6 Driften

Driften

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,989 posts
  • Location:Issaquah, WA
  • Flag:

Posted 13 January 2020 - 06:39

My M101N Lizard also screwed it self apart recently when I was cleaning it. I ended up using some dial calipers as a wrench to put it back together. Making a wrench would have been better and I expect if I was disabling instead of putting it back it would have been needed more.



Congrats on making something. It's too bad the TWSBI wrench didn't work, but I expect it could be modified to work. If the caliper hadn't worked I was going to modify a plastic card like the good captain did.



#7 Lam1

Lam1

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,580 posts
  • Location:Minnesota, U.S.
  • Flag:

Posted 13 January 2020 - 07:08

Very interesting!



I thought the M101Ns were friction fit!
