3D Printed Kaweco Al Sport Clip

kaweco clip fountain pen 3d printed 3d printing

  • Please log in to reply
10 replies to this topic

#1 VonPG

VonPG

    Dipped Only

  • Member - Silver

  • Pip
  • 4 posts

Posted 31 December 2019 - 17:10

Actually it is the first posts of this account.(Although I collected pen for long time, I never resgister on FPN before)

I use an advanced 3d scanner and then draw its stl file for 3d printing. Actually it match Kaweco Sport Pen.


Then I asked for a modern industrial 3d printed machine to build it. The material is CoCrMo Stellite alloy.

However, I didn't have good tools to polish so it looks very rough.




You can download STL file here:

https://drive.google...brzcuxQHqS-f75K



Suggestion:

Use metal printing at first. I try PA66, PA12 before but the strength is not enough.

Polishing is the most important process, without good polishment it may hurt Kaweco Pen Body



Sponsored Content

#2 tamiya

tamiya

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,425 posts
  • Location:AU, SG, MY & Zzzzzz...
  • Flag:

Posted 31 December 2019 - 17:21

How's the durability, even with the sintered metal printing? :)


I dunno... clip of that design I think it's made that way to be able to be cheaply & easily manufactured by stamping out of sheet steel and being bent.

When designing something for print-manufacture... I always hope for something more innovative than just apeing current existing conventions.

#3 WLSpec

WLSpec

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 710 posts
  • Flag:

Posted 31 December 2019 - 17:26

Pretty cool! That saves a little bit of $, if you scale that up you could make some cool stuff. Caught an article in pen world about someone making 3d printed pens, can't remember the name right now but you could try that. Seems like a complicated undertaking but if you can make some nice pens with the correct housing and such a very rewarding one as well.



Good luck with your 3d printing in the future!  :)


-WLSpec






#4 VonPG

VonPG

    Dipped Only

  • Member - Silver

  • Pip
  • 4 posts

Posted 31 December 2019 - 17:41

How's the durability, even with the sintered metal printing? :)


I dunno... clip of that design I think it's made that way to be able to be cheaply & easily manufactured by stamping out of sheet steel and being bent.

When designing something for print-manufacture... I always hope for something more innovative than just apeing current existing conventions.

After all It is Stellite alloy. If you dont bend this clip by brute force for many times, its performance must be better than original Kaweco Clip



#5 VonPG

VonPG

    Dipped Only

  • Member - Silver

  • Pip
  • 4 posts

Posted 31 December 2019 - 17:43

Pretty cool! That saves a little bit of $, if you scale that up you could make some cool stuff. Caught an article in pen world about someone making 3d printed pens, can't remember the name right now but you could try that. Seems like a complicated undertaking but if you can make some nice pens with the correct housing and such a very rewarding one as well.



Good luck with your 3d printing in the future!  :)

Thanks a lot! I have draw a pen file already. It doesn't matter if it is failed to printed. I can also convert to CAD format so it can be used in CNC maching.



#6 tamiya

tamiya

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,425 posts
  • Location:AU, SG, MY & Zzzzzz...
  • Flag:

Posted 01 January 2020 - 02:11

After all It is Stellite alloy. If you dont bend this clip by brute force for many times, its performance must be better than original Kaweco Clip


Stellite is cobalt-based, meant for wear & corrosion resistance...?
Which I usually read as "hard & brittle", wouldn't be improved by sintering.

How's that compared to Spring Steel?


Thanks a lot! I have draw a pen file already. It doesn't matter if it is failed to printed. I can also convert to CAD format so it can be used in CNC maching.


Have you modelled the whole pen? :)

Truth be told, I've got a Kaweco Sport and Pilot Kakuno sitting next to be 3D workbench for inspiration. Wondering what's a neat way to mod them for a clip or something else... add-on accessories are already out there but don't really match the pens.

Been thinking I should model (or get said model) the whole cap & then mod that for integrated clip.

#7 VonPG

VonPG

    Dipped Only

  • Member - Silver

  • Pip
  • 4 posts

Posted 05 January 2020 - 16:13

Stellite is cobalt-based, meant for wear & corrosion resistance...?
Which I usually read as "hard & brittle", wouldn't be improved by sintering.

How's that compared to Spring Steel?



Have you modelled the whole pen? :)

Truth be told, I've got a Kaweco Sport and Pilot Kakuno sitting next to be 3D workbench for inspiration. Wondering what's a neat way to mod them for a clip or something else... add-on accessories are already out there but don't really match the pens.

Been thinking I should model (or get said model) the whole cap & then mod that for integrated clip.

Sorry for replying so late,



1 For CoCrMo, if you use annealing process, it will provide better toughness compare to some Unannealed spring steel. But it still lack elasticity compare to those top high quality spring steel with perfect annealing. I choose this material because it won't rust in most general enviroment.

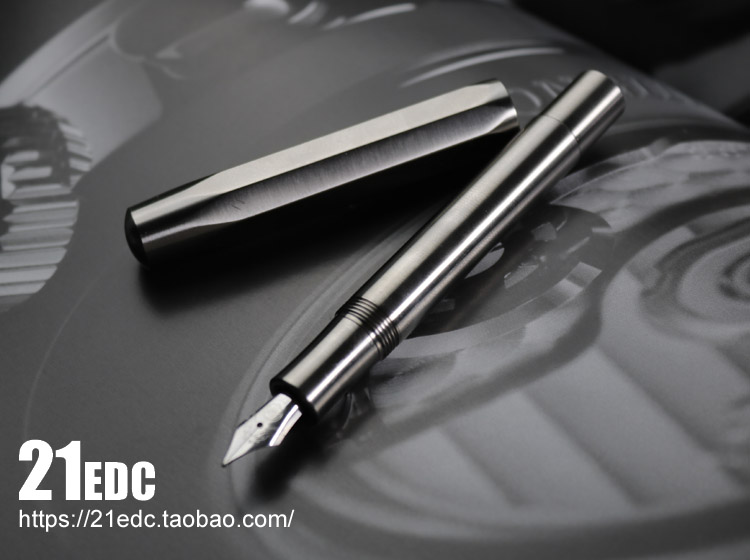

2 Actually, a friend of mine has made a whole titanium pen so I directly buy it from him.


3 Use or lend a professional 3d scanner and convert it to stl file. But to be honest, Clip may be not suitable for Pilot Kakuno, because I also try to build a 3d file for it but the cap has to many curved area. Beside it also has a small pen stop so an extra clip may looks very strange. As for Kaweco, a cheaper way is to measure one side length of the hexagon cap and then draw a standard hexagon as the clip Cross section. To meet the clip match perfectly. You can also expand this hexagon 0.1mm or 0.2mm so that the clip can fit surface better. Integrated clip is ok, but it may be harder to repaired.


Edited by VonPG, 05 January 2020 - 16:21.


#8 Honeybadgers

Honeybadgers

    Museum Piece

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 5,156 posts
  • Flag:

Posted 08 January 2020 - 09:36

Hey if someone wants to replicate the whole pen, but instead use the longer barrel of the delike alpha (it's about 1cm longer with a rounded bottom so it can be used unposted and accepts a proper converter) out of titanium or brass or copper or bronze, I'd buy the heck out of one.


Selling a boatload of restored, fairly rare, vintage Japanese gold nib pens, click here to see (more added as I finish restoring them)


#9 tamiya

tamiya

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,425 posts
  • Location:AU, SG, MY & Zzzzzz...
  • Flag:

Posted 08 January 2020 - 12:49

Hey if someone wants to replicate the whole pen, but instead use the longer barrel of the delike alpha (it's about 1cm longer with a rounded bottom so it can be used unposted and accepts a proper converter) out of titanium or brass or copper or bronze, I'd buy the heck out of one.


Does the Delike use the same threads as Kaweco? like are the barrels & lids interchangeable?

Would love it if everything was modular, one could use barrel & cap of different materials etc.

#10 MuddyWaters

MuddyWaters

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 826 posts
  • Flag:

Posted 09 January 2020 - 01:44

Hey if someone wants to replicate the whole pen, but instead use the longer barrel of the delike alpha (it's about 1cm longer with a rounded bottom so it can be used unposted and accepts a proper converter) out of titanium or brass or copper or bronze, I'd buy the heck out of one.


What would be achieving that isn't in your delike?

Link to a post about ergonomics I made: http://www.fountainp...with/?p=4179072


#11 Honeybadgers

Honeybadgers

    Museum Piece

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 5,156 posts
  • Flag:

Posted 09 January 2020 - 07:20

What would be achieving that isn't in your delike?



My delike is just a little rougher on the finish. It's a storied old beast by now, but I do worry that in 15-30 years it might not survive. I'd prefer one with a plastic sleeve to prevent scratching and metal on metal for the threads.


Selling a boatload of restored, fairly rare, vintage Japanese gold nib pens, click here to see (more added as I finish restoring them)
