Easiest Non Invasive Way To Remove Sac And Shellac Remnants?


  • Please log in to reply
16 replies to this topic

#1 Spartcom5

Spartcom5

    Near Mint

  • Member - Silver

  • PipPipPip
  • 26 posts
  • Flag:

Posted 12 July 2019 - 03:06

I am very new to restoring pens and am only starting on lever fills. I have removed the section from the barrel of the pen and ran into this situation. Much of the sac with shellac is still on the section. I saw a video where a guy scraped at is with a razor to remove the large chunks and then got some very fine emery cloth and cleaned up the small amount remaining. Well, I scraped at it and honestly it isn't budging. What should I do to remove this going forward? The blade worked nicely on another pen but inevitably left marks on the plastic underneath.

20190711_193654_resized.jpg 20190711_193700_resized.jpg


Edited by Spartcom5, 12 July 2019 - 03:07.


Sponsored Content

#2 praxim

praxim

    On twig

  • FPN Supporter - Rhodium

  • PipPipPipPipPipPipPipPipPipPip
  • 3,998 posts
  • Location:Not upon the peneplain
  • Flag:

Posted 12 July 2019 - 03:46

You need a clean edge but not a fine blade to chip that off; a scraper, not a cutter. A dental pick or similar can help start the process. Scrape and chip patiently, finish with fine grit. It is often preferable to clamp or wedge-support either the pen or the tool, so you have fine control of angle, movement and pressure.


Anyone owning three or more working pens is in no position to disparage choices by others.

#3 Greenie

Greenie

    Collectors Item

  • FPN Mabie Todd Group Moderators

  • PipPipPipPipPipPipPipPip
  • 1,305 posts
  • Location:Orange County, CA
  • Flag:

Posted 12 July 2019 - 04:56

I use a dental tool called a Beale carver - really cheap on ebay.  The point end is good for chipping away at the hard sac to chip most of it off the section.  I have several, and some I have bent the end a bit and use them to chip at sac stuck to the inside of the barrel as well.  The other end is rounded, which I more commonly use inside the barrel.  Once it is mostly gone, I use the flat file from a needle file set which does more to flake off the remaining stubborn bits.



Edited by Greenie, 12 July 2019 - 04:57.


#4 Spartcom5

Spartcom5

    Near Mint

  • Member - Silver

  • PipPipPip
  • 26 posts
  • Flag:

Posted 12 July 2019 - 06:07

Is it okay if I scrape the plastic a little in the process? Would it be advantageous to heat it up with a hairdryer before? Or is that dangerous for some pens?

Edited by Spartcom5, 12 July 2019 - 10:47.


#5 Greenie

Greenie

    Collectors Item

  • FPN Mabie Todd Group Moderators

  • PipPipPipPipPipPipPipPip
  • 1,305 posts
  • Location:Orange County, CA
  • Flag:

Posted 12 July 2019 - 14:37

It is not a problem to scrape the hard rubber underneath. No one will see it and it won't cause any problems.



#6 peterg

peterg

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,035 posts

Posted 12 July 2019 - 20:58

I use a fairly sharp penknife for rubber on the section, scraping across rather then cutting into.



For the barrel I use a variety of tools - dental pick, long screw and rod. The pick and screw draw most of an intact sac out while the rod crunches it to powder to pour out. The real challenger is decomposed, semi liquified sac which sticks inside the barrel



#7 pen lady

pen lady

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,232 posts
  • Location:Ontario Canada
  • Flag:

Posted 12 July 2019 - 23:05

I use the same methods and tools that Peterg describes + for those lovely gummy gooey sacs, a long fine crochet hook works wonders.



#8 praxim

praxim

    On twig

  • FPN Supporter - Rhodium

  • PipPipPipPipPipPipPipPipPipPip
  • 3,998 posts
  • Location:Not upon the peneplain
  • Flag:

Posted 13 July 2019 - 00:23

Is it okay if I scrape the plastic a little in the process? Would it be advantageous to heat it up with a hairdryer before? Or is that dangerous for some pens?



Is it plastic rather than hard rubber? Unfortunately, the answer lies somewhat uninformatively as "it is up to you to apply the right pressure with the right implement at the right angle." As others have also commented, you are basically trying to scrape off or break up a crud layer rather than cut it away so I reiterate that you want a clean edge rather than a sharp blade, if you see the distinction. The dried sac will separate from the layer below, which should be hard rubber. I am not aware that heat would help. I have never tried it for that purpose.


Anyone owning three or more working pens is in no position to disparage choices by others.

#9 Spartcom5

Spartcom5

    Near Mint

  • Member - Silver

  • PipPipPip
  • 26 posts
  • Flag:

Posted 13 July 2019 - 00:48

Thank you guys, I will try again later on and see how I fare!

#10 siamackz

siamackz

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,137 posts
  • Flag:

Posted 13 July 2019 - 00:51

I keep that part standing in a shallow bowl of water for a few hours and then scrape easily with a dental pick or pen knife. Be careful when doing the final cleaning with micromesh or emery cloth, you want to just clean the surface and not take off too much material by mistake. Finally, some of those section nipples where the sac goes on are delicate and can break - so be careful no to dig too deep or crack it.

All the best!

My Vintage Montblanc Website--> link

My free restoration service--> link


#11 Paul80

Paul80

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,495 posts
  • Location:Kent, England
  • Flag:

Posted 13 July 2019 - 07:09

I suppose you could soak the nipple in denatured alcohol/mathylated Spirit to soften the old shellac or just scrape it of as said above.

Paul

#12 PaulS

PaulS

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,781 posts
  • Location:London, U.K.
  • Flag:

Posted 13 July 2019 - 11:59

quote from reply No. 10 ........................  "Finally, some of those section nipples where the sac goes on are delicate and can break - so be careful no to dig too deep or crack it."

Very true - I've broken at least one in recent times  -  make sure you leave the feed in place within the section, as it helps support the nipple whilst you remove the sac remnants.            Most old sac remains have turned into a sort of vitrified state, and I agree chipping off the remains from the nipple is usually the best way  -  but as with most things common sense should help to decide which method best.          I'd be wary of using a knife, but with care shouldn't be a problem.



#13 Spartcom5

Spartcom5

    Near Mint

  • Member - Silver

  • PipPipPip
  • 26 posts
  • Flag:

Posted 15 July 2019 - 00:49

Well guys I got it. Cleaned up very well! Once it started chipping it went smoothly! Just had to get it started with a sharp point. Thanks for the advice. The J bar put up one hell of a fight but that's a different story...



#14 PenFisher

PenFisher

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,660 posts

Posted 17 July 2019 - 16:21

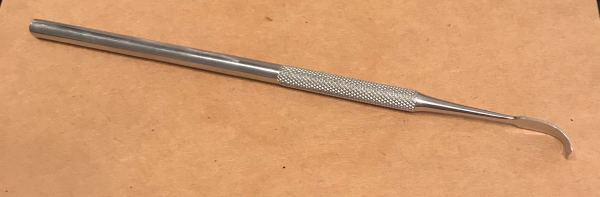

I'm late to the party ... glad OP was successful.  FWIW here's a tool that I got years ago (from Richard Binder's site) that has been perfect for removing sac remnants in such cases.






#15 Honeybadgers

Honeybadgers

    Donor Pen

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 3,876 posts
  • Flag:

Posted 17 July 2019 - 17:08

I've just been very careful with a razor blade and stopped short of the section and finished going down to the section with 800 grit sandpaper.


Selling a boatload of restored, fairly rare, vintage Japanese gold nib pens, click here to see (more added as I finish restoring them)


#16 Seele

Seele

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,107 posts
  • Location:Sydney
  • Flag:

Posted 18 July 2019 - 04:03

If the sac has gone really brittle, I can chip it off bit by bit with my thumb nail until there's very little left, then I would proceed to use tools and emery paper/nail buffing sticks to finish the job.


No, I am not going to list my pens here.

#17 tmenyc

tmenyc

    Tim

  • FPN Supporter - Rhodium

  • PipPipPipPipPipPipPipPipPip
  • 2,183 posts
  • Location:Manhattan

Posted 18 July 2019 - 16:44

I always start with an old Swiss army knife's small blade, which is well leveraged but not particularly sharp, to get under an edge of the dried shellac and pull the chip off. Then, to the greatest possible extent, I use my thumbnail.  It's quite strong and chips each piece away really well, and of course you can feel what you're doing.  Then I scrape it clean with the same knife blade.  Never a sharp blade, never with pushing force. Always pull, not push.  If you pull you won't go through the sac nipple wall.



Tim


Current Rotation:
home: MontBlanc 149/Waterman Blue/Black; Esterbrook Dollar/vintage Skrip black
case: Lamy 2000/Akkerman Konigsblau; Parker Duofold/mystery ink from my drawer...
office: Delta Fusion 82/vintage Sheaffer permanent blue/black


 see my Pens for Sale and my collection at timsvintagepens.com
