Determining A Parker Nib Type

parker nib marking

6 replies to this topic

#1 InkPartout

InkPartout

    NOS (New Old Stock)

  • Member - Silver

  • PipPip
  • 17 posts
  • Flag:

Posted 17 March 2019 - 17:52

Following my recent post regarding where to look for the marking on Sheaffer fountain pens that will tell you the type of nib fitted to the pen - fine. italic, medium, broad etc., I now have reason to ask the correspoing question for Parker fountain pens



I start with a Parker Sonnet which for me seems to not writing very well, and I wonder if it was fitted with a fine rather than medium nib.  Where on the pen should I look for a mark which would tell me this information ?

The only marks I can see on actual nib are the Parker symbol and the word 'PARKER' and the pattern of curved lines that I suspect is a characteristic of the Sonnet range.  It looks as if there might be more symbols on the nib which are hidden by the part of the pen that holds the nib (I'm sure it has a name ?) but I'm not sure.



I also have some Parker 45s with which I have no problem, but I'd like to be able to check their nib types as well.



InkPartout

17.March.2019



Sponsored Content

#2 BaronWulfraed

BaronWulfraed

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,171 posts
  • Location:Lowell, MI
  • Flag:

Posted 17 March 2019 - 20:51

Parker 45s are problematic, since the nib, feed, and collar could have been mismatched by a previous user -- marking should be on the collar.



My Parker 100 is a mystery (in that I don't see a marking; my database says EF based on purchase records).



My Duofold (mid-90s offering), Sonnet, and Urban all have the marking on the bottom of the feed, where is slants up to the nib tip.



#3 InkPartout

InkPartout

    NOS (New Old Stock)

  • Member - Silver

  • PipPip
  • 17 posts
  • Flag:

Posted 18 March 2019 - 15:53

Thank you Baron once again for telling me at least where to look



I easily found the markings on two of my Parker 45s (which may not be as, I've just noticed, although they look similar, one is about 1cm longer than the other ??? ) and one is marked with am M the other a B which at first I thought was a 00 !



I looked at my Sonnet again, and could no mark, either on the metal collar or on the plastic close to it.  Although I'm pretty sure there was no mark visible I'll look again





(It seems to me that it easy to cage the nib on the Sonnet ut more difficult on the 45s 1)

InkPartout

18.March.2019



#4 Old Salt

Old Salt

    Old Salt

  • Premium - Emerald

  • PipPipPipPipPipPipPipPipPip
  • 1,867 posts
  • Location:Delaware
  • Flag:

Posted 18 March 2019 - 19:07

Parker nib size markings can be all over the map. Most common pace to look is on the feed. Can be in letters XF, F, M, B, or numbers ie: 66 is a medium. Sometimes there are just no markings at all, so you have to go by your impression of the ink line that it puts down.

Nib change on a 45 is very easy. Dont be afraid of it. Go on YouTube and get a vid.
There are still plenty of P-45 parts out there. Even if you make a mistake it can be fixed. They are very forgiving pens.
For what its worth: If you are cleaning your pen in a sink, be sure to put a mesh screen over the drain.
Its always the smallest, hardest to replace pieces that find their way down the drain. Not saying that youre not careful, just sharing something something i learned the hard way..
Hope this helps.

Attached Images

  • 810B971F-309D-4738-A144-7429F4D468A8.jpeg


#5 InkPartout

InkPartout

    NOS (New Old Stock)

  • Member - Silver

  • PipPip
  • 17 posts
  • Flag:

Posted 31 March 2019 - 16:02

mesh screen is a good idea.  I'll bear it in mind if I ever take one of my pens apart in a sink !



I can't find the mark describing nib type on my Sonnet so there isn't one ?



Thanks for all your help and suggestions



InkPartout

31.March.2019



#6 pajaro

pajaro

    Amblin along like I had good sense.

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 12,458 posts
  • Location:Tecumseh, MI
  • Flag:

Posted 31 March 2019 - 18:34

mesh screen is a good idea.  I'll bear it in mind if I ever take one of my pens apart in a sink !



I can't find the mark describing nib type on my Sonnet so there isn't one ?



Thanks for all your help and suggestions



InkPartout

31.March.2019



If it is a genuine Sonnet the nib size will be on the feed if you invert the nib.  The size marking, F, M, B, S (stub or italic or oblique) or X (extra fine).  The letter appears in a recess at the front of the feed.  I need a magnifier to see it, maybe you can see better and don't need one.


"Don't hurry, don't worry. It's better to be late at the Golden Gate than to arrive in Hell on time."
--Sign in a bar and grill, Ormond Beach, Florida, 1960.



They took the blue from the skies and the pretty girls' eyes and a touch of Old Glory too . . .


#7 ardene

ardene

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 823 posts
  • Flag:

Posted 01 April 2019 - 11:12



I can't find the mark describing nib type on my Sonnet so there isn't one ?



Thanks for all your help and suggestions



InkPartout

31.March.2019









If it is a genuine Sonnet the nib size will be on the feed if you invert the nib.  The size marking, F, M, B, S (stub or italic or oblique) or X (extra fine).  The letter appears in a recess at the front of the feed.  I need a magnifier to see it, maybe you can see better and don't need one.

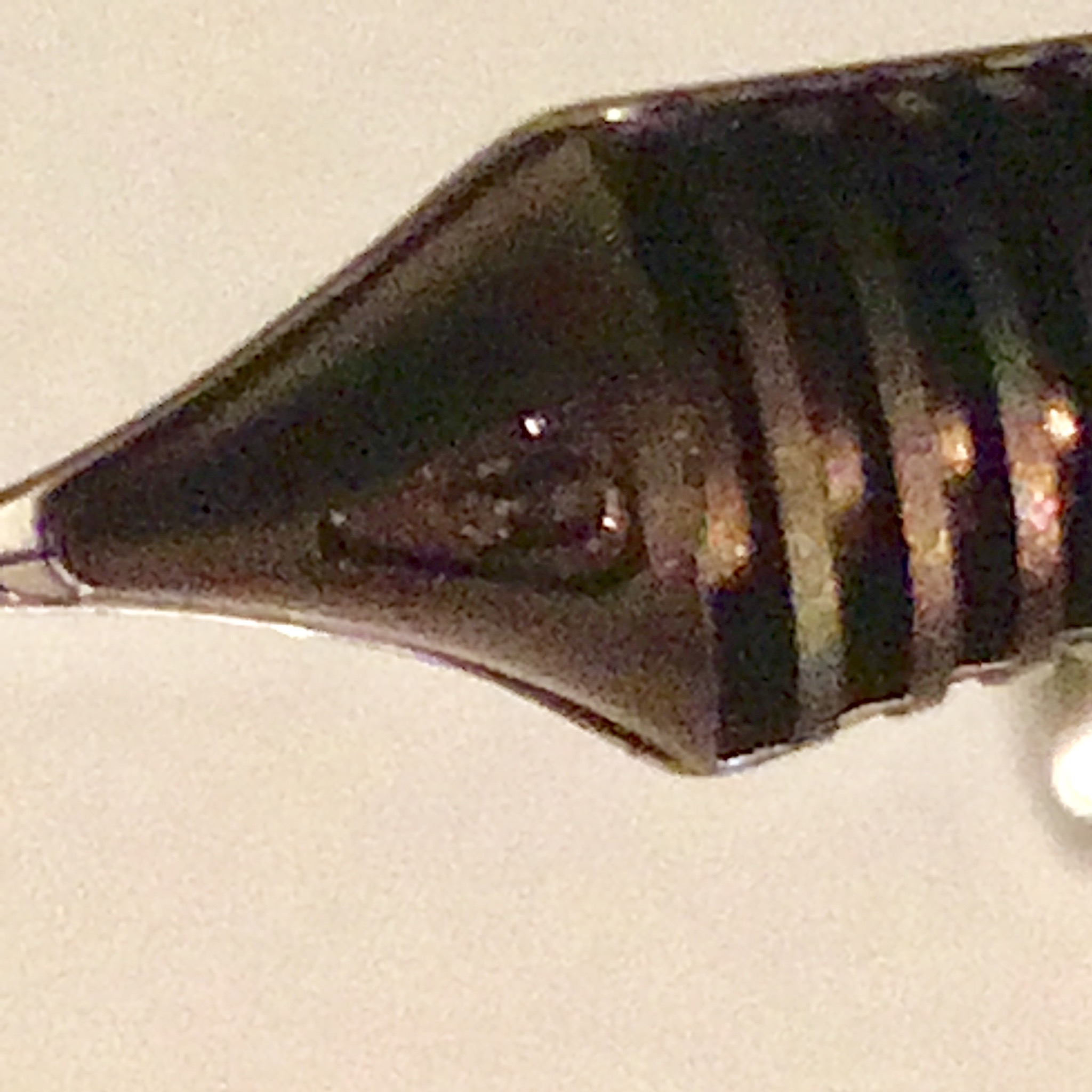

InkPartout it's on the underside of the feed as pajaro says. This is a (bad) photo of a Sonnet feed stamp which reads M.



fpn_1554088081__8da79c63-e6a3-4ca7-8aab-
