Mb 146 Nib On A Pilot 823? Feasible?

nib frankenpen 823 146

  • Please log in to reply
17 replies to this topic

#1 beboy

beboy

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 230 posts
  • Flag:

Posted 07 December 2018 - 03:59

This thread is for the fans of Frankenpens like me :)



Story short: I own a Pilot 823 with a broad nib and I like the pen but dislike the nib.  So I am looking for a nib replacement and Montblanc 146 nibs are normally nice to use and can be bought individually. I already tried to fit a JoWo nib from Franklin-Christoph, but it's too long.



Has anybody ever tried to fit a 146 nib in a 823? I worry more about the length of the nib since Pilot nibs are usually short. The width seems to be pretty much the same (#15 from Pilot and #6 western nib)



Maybe a nice Waterman vintage nib from the 1920s to 1940s would do the job?







Sponsored Content

#2 mitto

mitto

    Ancient Artifact

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 11,107 posts
  • Flag:

Posted 07 December 2018 - 05:02

Contamination.
Khan M. Ilyas

#3 Honeybadgers

Honeybadgers

    Donor Pen

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 4,669 posts
  • Flag:

Posted 07 December 2018 - 12:03

I have extremely strong doubts. The pilot nib is notched for the feed.


Selling a boatload of restored, fairly rare, vintage Japanese gold nib pens, click here to see (more added as I finish restoring them)


#4 Bo Bo Olson

Bo Bo Olson

    Pen Dust

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • 21,379 posts
  • Location:Germany

Posted 07 December 2018 - 12:24

An unmodified  Falcon nib is a 'Springy' nib, good tine bend but only 2 X tine spread like a modern MB.


German vintage '50-70 semi-flex stubs and those in oblique give the real thing in On Demand line variation. Modern Oblique is a waste of money for a shadow of line variation. Being too lazy to Hunt for affordable vintage oblique pens, lets you 'hunt' for line variation instead of having it.

www.nibs.com/blog/nibster-writes/nibs-germany & https://www.peter-bo...cts/nib-systems,



The cheapest lessons are from those who learned expensive lessons. Ignorance is best for learning expensive lessons.








#5 beboy

beboy

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 230 posts
  • Flag:

Posted 07 December 2018 - 13:38

I have extremely strong doubts. The pilot nib is notched for the feed.



I don't worry much about the notches on both side as it mostly prevent the Pilot nib to be swapped on another pen, but not the other way around. Thinking about it afterward, it might be more reasonable to send my Pilot nib to a nibmeister to give it more character before taking the Frankenpen avenue...



#6 Bo Bo Olson

Bo Bo Olson

    Pen Dust

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • 21,379 posts
  • Location:Germany

Posted 07 December 2018 - 21:01

:thumbup:

Do have a picture of your hold angle and send a copy of your writing style, for a start of what you want.


German vintage '50-70 semi-flex stubs and those in oblique give the real thing in On Demand line variation. Modern Oblique is a waste of money for a shadow of line variation. Being too lazy to Hunt for affordable vintage oblique pens, lets you 'hunt' for line variation instead of having it.

www.nibs.com/blog/nibster-writes/nibs-germany & https://www.peter-bo...cts/nib-systems,



The cheapest lessons are from those who learned expensive lessons. Ignorance is best for learning expensive lessons.








#7 Inksomnia

Inksomnia

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 173 posts

Posted 07 December 2018 - 21:09

I had vintage Montblanc 146 nib in my Twsbi Vac 700R. Worked right, without any modifications.


Not sure however this would work on Pilot, Montblanc nibs are quite long too.


Edited by Inksomnia, 07 December 2018 - 21:19.


#8 benbot517

benbot517

    A Dapper Chap

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 781 posts
  • Location:Portland, Oregon
  • Flag:

Posted 08 December 2018 - 00:33

Someone who does custom work might be able to make it work

"Oh deer."


#9 Honeybadgers

Honeybadgers

    Donor Pen

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 4,669 posts
  • Flag:

Posted 08 December 2018 - 02:33

An unmodified  Falcon nib is a 'Springy' nib, good tine bend but only 2 X tine spread like a modern MB.



You can get a hell of a lot more than 2x from an FA.


Selling a boatload of restored, fairly rare, vintage Japanese gold nib pens, click here to see (more added as I finish restoring them)


#10 surprise123

surprise123

    Estate Find

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 829 posts
  • Flag:

Posted 09 December 2018 - 21:46



You can get a hell of a lot more than 2x from an FA.

Don't push it too much. FA nibs are not wet noodles. I remember there was a page on Richard's site that showed the extent of what pressure should be applied to a flex nib. The rule is to be 25% under that maximum threshold to not cause long-term damage to the tines.



I think, instead of trying to get a new nib to fit in your Pilot, get the nib to a nibmeister and have them smooth/grind it. Replacement nibs can be scratchy too. Plus, if you want to go the MB 149 nib route, that is more expensive than a nib smoothing, and also more risky.



#11 Freddy

Freddy

    Museum Piece

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 6,907 posts
  • Location:Gold Coast, NY
  • Flag:

Posted 09 December 2018 - 23:56

Don't push it too much. FA nibs are not wet noodles. I remember there was a page on Richard's site that showed the extent of what pressure should be applied to a flex nib. The rule is to be 25% under that maximum threshold to not cause long-term damage to the tines.



I think, instead of trying to get a new nib to fit in your Pilot, get the nib to a nibmeister and have them smooth/grind it. Replacement nibs can be scratchy too. Plus, if you want to go the MB 149 nib route, that is more expensive than a nib smoothing, and also more risky.

FA nibs are not flexible..perhaps soft..but not flexible......



This is of course my personal opinion..and yours may/has/will differ............

          Fred..

red meat is not bad for you. Now blue-green meat..that's bad for you............



#12 beboy

beboy

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 230 posts
  • Flag:

Posted 21 January 2019 - 14:48

I contacted 2 nibmeisters in the US and 1 in Canada and never got any answer, so I decided to give a go to my original idea.

As expected, Pilot nibs are shorter than Montblanc nibs, so I had to grind the tail of the 146 nib a little to make it fit on the Pilot 823 feed and work the tines a little to adjust it to Pilot's flatter feed.  However, at the end it is working fine and I have successfully swapped an unpleasant broad nib for a nice Oblique Medium one  :)

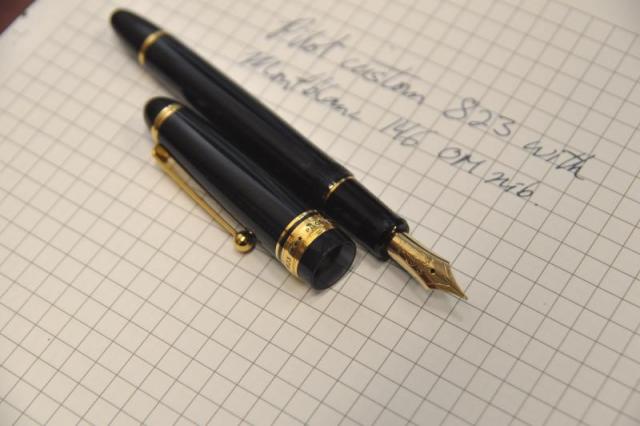

Here is a picture of the final result:





#13 sirgilbert357

sirgilbert357

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,597 posts
  • Location:Texas
  • Flag:

Posted 21 January 2019 - 17:36

Congrats on getting the swap done! I bet that was a satisfying project. I love working problems out like that, finding solutions, and then enjoying the end result.



#14 WLSpec

WLSpec

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 250 posts
  • Flag:

Posted 21 January 2019 - 17:59

Looks great. I am jealous.

Edited by WLSpec, 21 January 2019 - 18:00.

Can I put something down here?                                                                                            A small blog that I run in my free time​spectorpen.com


#15 Calabria

Calabria

    Pelikano

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,587 posts
  • Location:San Diego
  • Flag:

Posted 22 January 2019 - 03:21

Interesting! I also have the 823 Smoke, but with an F nib ground to an architect's nib by Dan Smith. I'm actually fascinated that you like the 823 body so much that you went to the trouble of fitting an MB nib into it. Wouldn't you have preferred an all-MB pen then?
"If you can spend a perfectly useless afternoon in a perfectly useless manner, you have learned how to live."
– Lin Yu-T'ang

#16 beboy

beboy

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 230 posts
  • Flag:

Posted 22 January 2019 - 16:05

Interesting! I also have the 823 Smoke, but with an F nib ground to an architect's nib by Dan Smith. I'm actually fascinated that you like the 823 body so much that you went to the trouble of fitting an MB nib into it. Wouldn't you have preferred an all-MB pen then?



A single nib (when it can be found on the second hand market) is way cheaper than an all-MB pen, even a used one.  I could have used a #6 nib from another manufacturer (like JoWo or Bock), but I always enjoyed the Montblanc OM nibs (I have a 221 with that tip and tried a 146 OM at a MB boutique) and that one was available for sale...



I still think I can manage to send my original 823 nib to a nibmeister at some point and to fit my 146 OM nib on a cheap pen using a #6 nib (like Insomnia did on his Twsbi - see earlier in this thread)



#17 Calabria

Calabria

    Pelikano

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,587 posts
  • Location:San Diego
  • Flag:

Posted 22 January 2019 - 17:40

Thanks for clarifying. I got my MB 146 semi-vintage (1980s, factory refurbished) for less than the 823 (new, with discount). I agree the MB nib is preferable.

I like that you're more interested in performance than purity -
"If you can spend a perfectly useless afternoon in a perfectly useless manner, you have learned how to live."
– Lin Yu-T'ang

#18 16m3mx

16m3mx

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 124 posts
  • Flag:

Posted 22 January 2019 - 18:26

I had vintage Montblanc 146 nib in my Twsbi Vac 700R. Worked right, without any modifications.



Not sure however this would work on Pilot, Montblanc nibs are quite long too.



Nice!, I put a 23k Palladium nib from Visconti to my Twsbi Vac 700 also without any issues, using the Twsbi feed and worked flawlessly.



Cheers,



Luis A.
