How To Tighten Loose Cap's Rings ?


  • Please log in to reply
23 replies to this topic

#1 fabri00

fabri00

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 952 posts
  • Location:Italy
  • Flag:

Posted 26 December 2017 - 18:19

In many vintage fountain pens celluloid tend to shrink with the age, and the rings of the cap become loose.



I'm not interested in solutions like using a drop of glue, and I machined a tool a year ago to tighten rings, but I'm not happy with it. It works, but only for very thin rings.



On the other hand, a couple of years ago I sent back to Stipula a Nettuno pen, not that old as I think I bought it 20/25 years ago, because of this problem, and the pen came back to me with rings perfectly tightened to the cap. For sure Stipula has no spare parts for this old pen, therefore it is possible to do this, and also with very good results.



I've not found any idea about how to do that on the web: anybody has an idea of what kind of tool can do that ?



Thanks.






Sponsored Content

#2 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,142 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 26 December 2017 - 18:40

Look up Franciss technique of swaging the cap rings. IIRC he uses a collet chuck with a protective liner for this. HTH.

Edited by hari317, 26 December 2017 - 18:40.

In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

#3 fabri00

fabri00

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 952 posts
  • Location:Italy
  • Flag:

Posted 27 December 2017 - 07:50

Thanks Hari.

Is a complicated method because several collet chucks are needed, of different siameters. And those chucks are also quite expansive.

I was thinking more to make some metal rings of different diameters, something like one every 0,20 mm., and mount them in a kind of pliers, and then clamp the rings. I the meantime i think to make also some pins to inserts in the cap to not break it while clamping.

But before to loose time to turn those tools, I was wondering if someone had any better idea than me.



#4 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 14,142 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 27 December 2017 - 08:22

Thanks Hari.

Is a complicated method because several collet chucks are needed, of different siameters. And those chucks are also quite expansive.

I was thinking more to make some metal rings of different diameters, something like one every 0,20 mm., and mount them in a kind of pliers, and then clamp the rings. I the meantime i think to make also some pins to inserts in the cap to not break it while clamping.

But before to loose time to turn those tools, I was wondering if someone had any better idea than me.

once you have clamped, how do you plan to release the ring? also the clamping force has to be radially uniform. Pliers will provide discrete points of contact, not continuous.



The appropriate mandrel(pin) to hold the cap and prevent from from getting crushed while swaging is compulsory.



wishing you good luck.



I have some Omas 360 with loose cap rings. Given the triangular shape, I am still waiting for some ideas to strike.


In case you wish to write to me, pls use ONLY email by clicking here. I do not check PMs. Thank you.

#5 Chrissy

Chrissy

    Ancient Artifact

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 13,924 posts
  • Location:England
  • Flag:

Posted 27 December 2017 - 09:51

Would a cap mandrel be better to use while clamping?




#6 Inkling13

Inkling13

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,155 posts
  • Flag:

Posted 27 December 2017 - 12:17

I think you can do this, watching Conid Bulkfiller, it seems that the cap ring is tightened with a collet. You might want to ask fountainbel.

#7 GAtkins

GAtkins

    Collectors Item

  • Premium - Emerald

  • PipPipPipPipPipPipPipPip
  • 982 posts
  • Location:Springdale, Arkansas
  • Flag:

Posted 27 December 2017 - 14:14

There might be something that could be fashioned to use these.



Glenn



https://www.amazon.c...h/dp/B000JPN2QK



#8 fabri00

fabri00

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 952 posts
  • Location:Italy
  • Flag:

Posted 27 December 2017 - 18:23



once you have clamped, how do you plan to release the ring? also the clamping force has to be radially uniform. Pliers will provide discrete points of contact, not continuous.



The appropriate mandrel(pin) to hold the cap and prevent from from getting crushed while swaging is compulsory.



wishing you good luck.



I have some Omas 360 with loose cap rings. Given the triangular shape, I am still waiting for some ideas to strike.

Hari, sorry but I said something different from that.

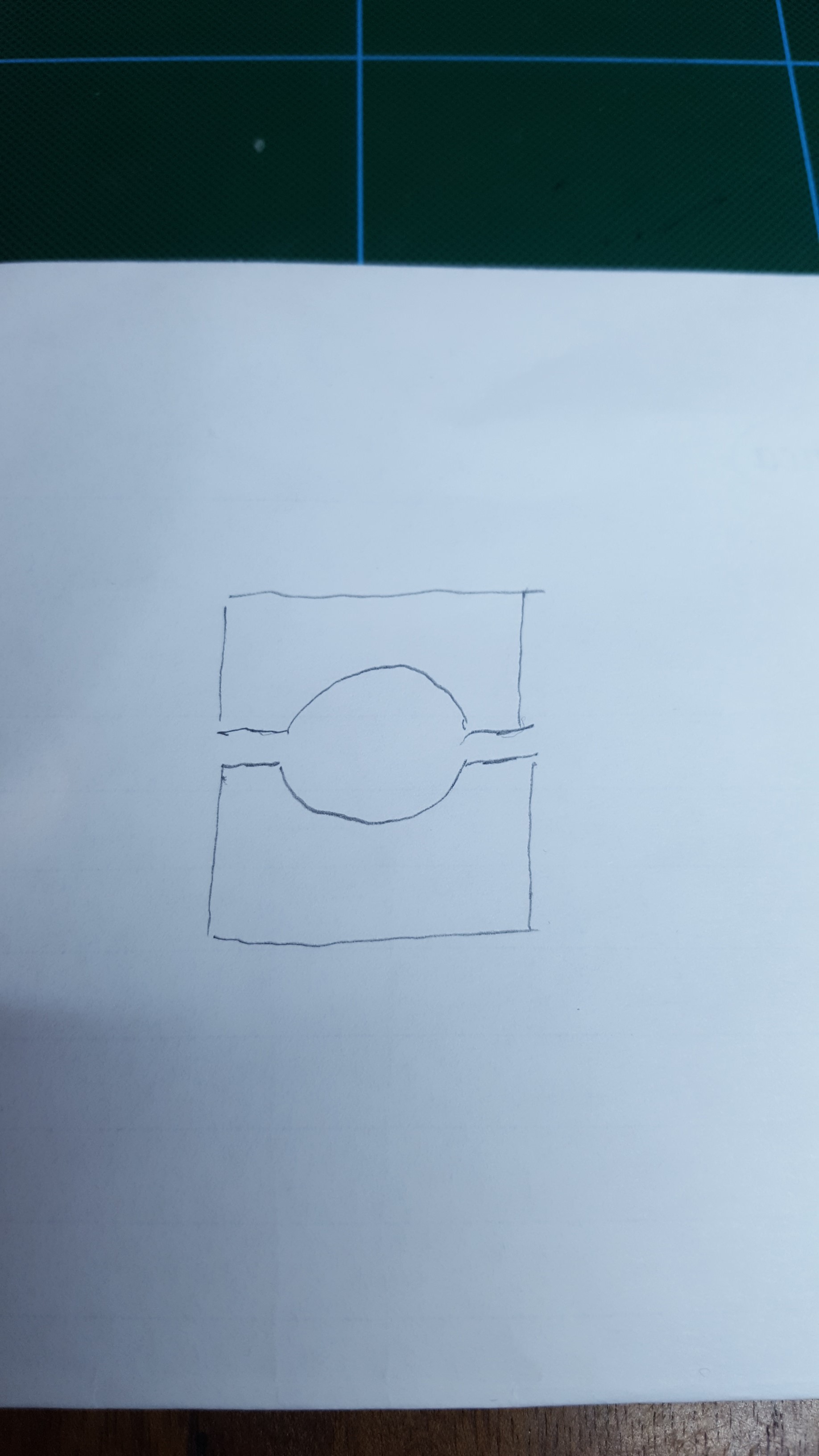

I want to try to make several metal blocks with a bore decreasing in diameter of 0,1 or 0,2 mm one from the other.

It should be something like this:






Then the cap will be inserted inside the 2 parts, and the 2 parts will be pressed with plyiers and will press the rings.

The force will be radially very uniform.


Edited by fabri00, 27 December 2017 - 18:37.


#9 fabri00

fabri00

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 952 posts
  • Location:Italy
  • Flag:

Posted 27 December 2017 - 18:24

There might be something that could be fashioned to use these.



Glenn



https://www.amazon.c...h/dp/B000JPN2QK

This is interesting, not far from the tool I did.

Thanks Glenn.



#10 fabri00

fabri00

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 952 posts
  • Location:Italy
  • Flag:

Posted 27 December 2017 - 18:33

This is the tool I did already some time ago:




The 3 wheels shrink the ring, while the cap is turned by hand. the pressure is slowly increased turning the knob with the screw.

The body of the pen should be tigthly screwed in the cap, in order to not break it while increasing the pressure.

It works well but only with thin rings, and not too loose.


Edited by fabri00, 27 December 2017 - 18:36.


#11 GAtkins

GAtkins

    Collectors Item

  • Premium - Emerald

  • PipPipPipPipPipPipPipPip
  • 982 posts
  • Location:Springdale, Arkansas
  • Flag:

Posted 27 December 2017 - 18:43

This is interesting, not far from the tool I did.

Thanks Glenn.



Except I think your block idea would stop at the exact right place, for example .1mm.



Glenn



#12 Ron Z

Ron Z

    Museum Piece

  • FPN Super Moderators

  • PipPipPipPipPipPipPipPipPipPipPip
  • 8,524 posts

Posted 27 December 2017 - 19:20

This is the tool I did already some time ago:





The 3 wheels shrink the ring, while the cap is turned by hand. the pressure is slowly increased turning the knob with the screw.

The body of the pen should be tigthly screwed in the cap, in order to not break it while increasing the pressure.

It works well but only with thin rings, and not too loose.



I can see where that might work but I would be nervous about the cap plastic flexing as you turn it rather than the band diameter being reduced.  A modified tubing cutter work for a hand knurling tool as well.



The design farther up with the two pieces will not work.   It is too much like a standard crimping tool.  The band will pinch out on both sides when you squeeze it closed.  You have to compress the band over the full 360 degrees at the same time, or you'll end up with a piece sticking out and getting crimped.


Visit Main Street Pens
A full service pen shop providing professional, thoughtful vintage pen repair...

Please use email, not a PM for repair and pen purchase inquiries.


#13 fabri00

fabri00

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 952 posts
  • Location:Italy
  • Flag:

Posted 27 December 2017 - 19:41



i can see where that might work but I would be nervous about the cap plastic flexing as you turn it rather than the band diameter being reduced.  A modified tubing cutter work for a hand knurling tool as well.



The design farther up with the two pieces will not work.   It is too much like a standard crimping tool.  The band will pinch out on both sides when you squeeze it closed.  You have to compress the band over the full 360 degrees at the same time, or you'll end up with a piece sticking out and getting crimped.

Because of that I was thinking at the "2C" system, which is not far from using a collet chuck



#14 fountainbel

fountainbel

    fountainbel

  • Premium - Emerald

  • PipPipPipPipPipPipPipPipPipPip
  • 3,645 posts
  • Flag:

Posted 30 December 2017 - 19:33

Hi Fabricio,

I wish you good luck in your search for an alternative method  for tighten loose cap bands, but I expect you finally will end using the ER25 or ER32 collets swaging approach.

I 've looked on the internet and actually a set of these collets and a holder cost approximately $ 80.00.

Quiet a reasonable investment In case you are regularly doing this kind of repairs , at least in my opinion !

Below the link to an earlier post in which I've explained how I use the tools.

Please look at my last reply in this post were I show my latest improvement.

Francis

http://www.fountainp...ing cap rings






#15 siamackz

siamackz

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,360 posts
  • Flag:

Posted 31 December 2017 - 02:08

Would a bionic wrench be a cheap and more crude substitute https://www.amazon.c...fbqL&ref=plSrch

#16 FarmBoy

FarmBoy

    Brain freeze, mmm... got pens?

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 9,242 posts
  • Location:SFO USA

Posted 31 December 2017 - 05:46

Would a bionic wrench be a cheap and more crude substitute https://www.amazon.c...fbqL&ref=plSrch

short cuts are rarely shorter.
San Francisco International Pen Show - They have dates! August 25-26-27, 2017 AND August 24-25-26, 2018 Book your travel and tables now! My PM box is usually full. Just email me: my last name at the google mail address.

#17 siamackz

siamackz

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,360 posts
  • Flag:

Posted 31 December 2017 - 05:55

short cuts are rarely shorter.

Is this that 'rare' occasion then?



#18 FarmBoy

FarmBoy

    Brain freeze, mmm... got pens?

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 9,242 posts
  • Location:SFO USA

Posted 31 December 2017 - 06:39

Is this that 'rare' occasion then?

I'd follow Francis ...


San Francisco International Pen Show - They have dates! August 25-26-27, 2017 AND August 24-25-26, 2018 Book your travel and tables now! My PM box is usually full. Just email me: my last name at the google mail address.

#19 praxim

praxim

    On twig

  • FPN Supporter - Rhodium

  • PipPipPipPipPipPipPipPipPipPip
  • 3,078 posts
  • Location:Not upon the peneplain
  • Flag:

Posted 31 December 2017 - 07:04

Having a bionic wrench to hand, I can add that the surfaces (pressure points) on one sized appropriately for a pen cap are about 3 mm while the gaps between are nearer 5 mm. This will not swage well.


Anyone owning three or more working pens is in no position to disparage choices by others.

#20 siamackz

siamackz

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,360 posts
  • Flag:

Posted 31 December 2017 - 07:26

Having a bionic wrench to hand, I can add that the surfaces (pressure points) on one sized appropriately for a pen cap are about 3 mm while the gaps between are nearer 5 mm. This will not swage well.

Thanks for explaining.
