My Frankenpen.

jinhao frankenpen flex fountainpen awesome cool

  • Please log in to reply
9 replies to this topic

#1 xiatix

xiatix

    Dipped Only

  • Member - Bronze+

  • Pip
  • 6 posts
  • Flag:

Posted 06 December 2017 - 20:28

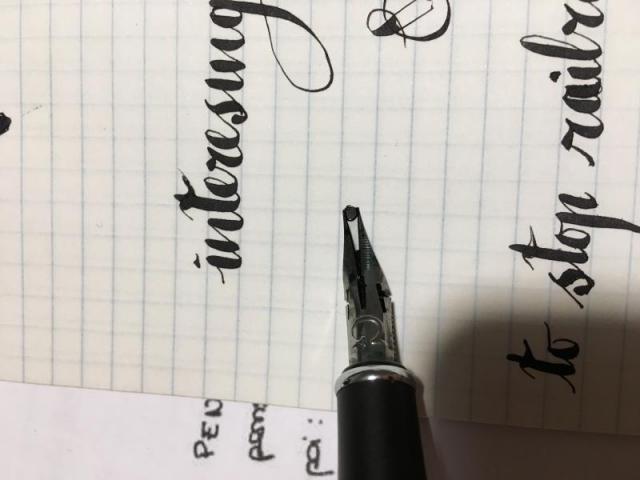

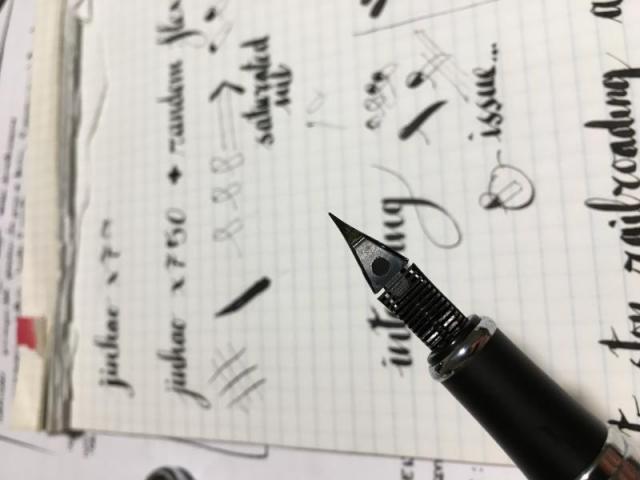

After days of tweaking, heat setting, carving and sweating i have finally obtained an almosdt perfect jinhao x750 flex pen.
How i did it:
At first i flushed the pen, got the friction fitted feed out, and replaced the nib with the flex one i had, aligning the first slots on the feed with the ones on the nib. Then i heat setted the feed on the nib, by clamping the tip of the feed with the nib and putting it in boiling water until it set. Then i took everything out, and eith a razor and a lot of patience made the ink flow slots larger and deeper, so that it would improve ink flow, i put everything together, rinsed it thoroughly and then proceeded to add ink. I added Montblank Mystery black, and when it was in the converter, i took it out, dipped the tip of a needle in dish hoap and added an extremely small amount by dipping the needle in the converter. I proceeded by priming the nib, letting two drops fall and then started writing.
IT'S SO MUCH FUN!!!

Attached Images

  • IMG_3897.JPG
  • IMG_3898.JPG
  • IMG_3899.JPG
  • IMG_3900.JPG

Attached Files



Sponsored Content

#2 MalcolmH

MalcolmH

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,925 posts
  • Location:England
  • Flag:

Posted 06 December 2017 - 20:39

Splendid work, and very nice writing, too.   :thumbup:



#3 xiatix

xiatix

    Dipped Only

  • Member - Bronze+

  • Pip
  • 6 posts
  • Flag:

Posted 06 December 2017 - 20:42

Splendid work, and very nice writing, too.   :thumbup:

Thank you so much!

#4 tetto

tetto

    NOS (New Old Stock)

  • Member - Bronze+

  • PipPip
  • 19 posts
  • Location:Manchester,UK
  • Flag:

Posted 06 December 2017 - 21:35

Nice modification



#5 SoulSamurai

SoulSamurai

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 235 posts
  • Flag:

Posted 07 December 2017 - 07:07

That looks like a plastic feed? I didn't know those could be heat-set. That's a dip pen nib, right? I'm curious if you'll run into any trouble when replacing the nib; probably not as long as you stick to the same type of nib.

Anyway, nice work, thanks for sharing!

#6 xiatix

xiatix

    Dipped Only

  • Member - Bronze+

  • Pip
  • 6 posts
  • Flag:

Posted 07 December 2017 - 09:34

That looks like a plastic feed? I didn't know those could be heat-set. That's a dip pen nib, right? I'm curious if you'll run into any trouble when replacing the nib; probably not as long as you stick to the same type of nib.
Anyway, nice work, thanks for sharing!

I think that the feed is ebanite, hence making rhe heat setting possible, and the inly issue with the nib is that it is of raw steel to help it flexing, so if you don't keep it clean it will rust, and it wears down quickly too, the line goes from an extra extra fine to a fine quite quickly if you use it a lot, but changing the nib is quite easy, and i tried putting its original nib back on and it worked perfectly!! Thanks for the support ;)

#7 Brandywine

Brandywine

    Near Mint

  • Member - Silver

  • PipPipPip
  • 29 posts
  • Flag:

Posted 07 December 2017 - 10:32

The feed looks as if it was the original Jinhao feed, and then it's not ebonite but plastic.



#8 frankb3

frankb3

    Mint

  • Member - Gold

  • PipPipPipPip
  • 92 posts
  • Location:Santa Rosa, California
  • Flag:

Posted 08 December 2017 - 07:26

thermoplastics can be heat set, but a little too much heat can turn it into mush.



#9 sub_bluesy

sub_bluesy

    Mint

  • Member - Gold

  • PipPipPipPip
  • 56 posts
  • Location:Ca
  • Flag:

Posted 08 December 2017 - 08:24

I like it! Very nice!

#10 Brandywine

Brandywine

    Near Mint

  • Member - Silver

  • PipPipPip
  • 29 posts
  • Flag:

Posted 08 December 2017 - 09:18

thermoplastics can be heat set, but a little too much heat can turn it into mush.



Considering that Xiatix heated the feed with boiling water, where the temperature is limited to 100° Centigrade,

he should be on the safe side.
