Waterman Cf

waterman cf cartridge fill

  • Please log in to reply
9 replies to this topic

#1 perth

perth

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 406 posts
  • Location:Bangkok
  • Flag:

Posted 22 August 2014 - 12:39

This is actually my third CF. The first was inherited from my grandmother, who passed away some time ago. My dad went to get the gold plated body polished, but ended up losing it, pen and converter and all. My second was a lemon from an eBay seller, which had many cracks as well as an underperforming nib. Based on my experience in getting a refund, I suspect that this was due to the shipping process because he proved very good at getting the refund back.



Which brings me to this pen. I’ve wanted to replace the lost CF, since I adored the nib design on it. I found this also on eBay and got quite a reasonable price.



Note: When there are 2 rating, the top is for my satisfaction, while the lower is for how much it could do, for that particular category. For example, I might be extremely satisfied with a stiff nib (5/5) but the lower rating would be (1/5) since it couldn’t flex at all. The ratings are not included in the final score.



Initial Impressions

Box and Instructions (5/10)

I bought this pen used, but it came in a standard and, I think, modern Waterman box. This consisted of a blue cardboard and faux-leather box and a white cardboard outer sheath. Whilst not very exciting, it was a nice touch from the seller. No instructions were included.



Aesthetics (17/20)

The pen has a mesmerising moire pattern. There are superimposed designs on the lined silver finish which give the pen a very sophisticated feel. Some of the moire pattern is a bit off and inconsistent, so points are deducted. The cap band and barrel trim come together when the pen is capped and the moire pattern aligns beautifully if properly positioned.

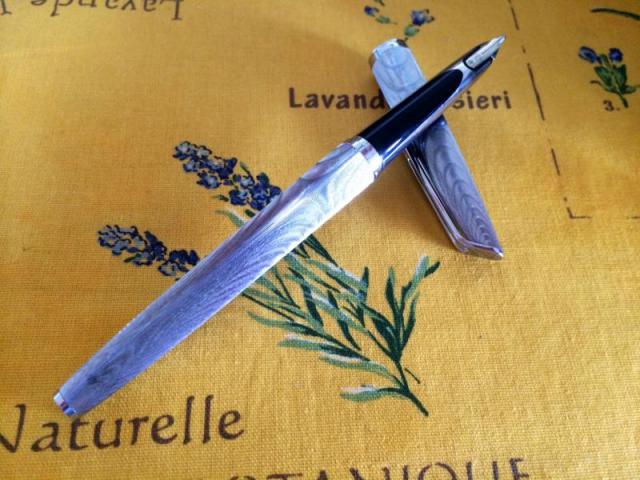

photo 1.JPG

The silver coloured trim is very high quality and is not scratched even after use as a pocket pen for about 4 months. This pen’s grip section is on the thinner side but is still fairly comfortable. The rather long section is completed by the “Skripsert” type nib which is well-integrated into the section and is flush with the pen.



Engravings on the pen are obviously high quality. Whilst they may not be obvious due to the colour scheme, they are legible when required and disappear when you’re not looking for them. “WATERMAN CF” is inscribed into the cap band, whilst the barrel trim is engraved with “MADE IN FRANCE”.



The clip is a little large in comparison with the pen, but is expertly plated like the rest of the trim. It integrates well into the pen, with the clip ending with the cap top.



Initial Feel (8/10)

As someone who appreciates a hefty pen, this did not disappoint. Although small, the Waterman CF is quite solid and fairly heavy for its size. The moire pattern is quite ergonomic and provides a very nice grip, since I tend to post this pen and grip it fairly high. The barrel isn’t flush with the trim ring, though.

photo 2.JPG

Filling (5/10)

The pen didn’t come with a converter, but I had bought one earlier. It’s a squeeze type, which has quite a tough sac but otherwise works. What is annoying is that it’s proprietary to not only the brand, but to the model of the pen. This means that if I happen to lose or break this, I’d have to either pay $40 for a new one or refill the cartridge for the rest of my days.



Performance

Smoothness

(9/10) Satisfaction

(7/10) Rating

The nib has a very good performance on all papers. It’s smooth, but has some feedback which I didn’t mind. What I didn’t expect was for the nib to sometimes squeak, which has scared me on quite a few instances.

photo 3.JPG

Flexibility

(5/5) Satisfaction

(3/5) Rating

The 18K nib was quite springy, but as it was already a broadish medium, there was little line variation to be had. Nevertheless, I didn’t expect any flex, so this slight variation was a nice surprise.



Flow

(10/10) Satisfaction

(9/10) Rating

The pen has a wet flow of ink, which keeps the nib well supplied. I haven’t yet had any hard starts or skipping during my use of this pen at all, which is quite pleasing and a relief since it would be a nightmare to prime the feed using a squeeze converter.

photo 5.JPG

General reliability (15/20)

An annoyance with this pen is its tendency to leave a ring of ink on the section near the nib. This is quite minor, since I don’t grip so far down anyways, but my compulsive requirement to wipe it off has given my fingers a variety of colours.



Other than that, the pen has not failed in its performance as of yet. I take it to places where I don’t expect to write too much, since it’s not the most ergonomic of pens for me. The nib, however, is smooth enough to warrant me to want to use it more often than not.

photo 4.JPG

Construction and Ergonomics

Fit (8/10)

The exterior of the pen is done flawlessly. The cap slips on firmly and stays closed. The clip does not wobble, and like I’ve said before, the plating on this pen’s trim is flawless. The section unscrews rather roughly, which is a minor concern.



Clip (4/10)

This pen’s clip is very stiff. It’s hard to open manually, and doesn’t slip on surfaces easily. The clip on my pen is also ever so slightly misaligned which is OCD-terrifying. However, this doesn’t affect the functionality.



Posting (7/10)

The CF’s balance is great posted, and I almost always use it that way. The cap isn’t the most secure when posted, but usually stays on most of the time.



Miscellaneous (Extra thoughts)

Value for money (8/10)

I got this pen for $90US. Not an incredible deal, but a fair price for a pen in excellent condition. Considering the fact that $90 doesn’t get much these days, I am quite pleased with the purchase.



Innovation (5/5)

This pen was amongst the first cartridge pens, and the first commercially successful ones. In that respect, the Waterman CF is quite historically significant.



Image and Advertising (3/5)

Strangely enough, the pen isn’t as well known or respected as the 51. Whilst having a more conventional design, the fact that the first successful cartridge pen isn’t celebrated more is quite a surprise.



Buying experience (4/5)

I bought this pen on the internet, through eBay. I didn’t expect much and was rather wary after my previous experience. Free shipping was a very nice touch, even though I didn’t communicate much with the seller.





Total (113/150)=75.3%

This pen is a very pleasant writing instrument, although too small for extended use in my larger hands. It’s quite an underrated and underexposed pen, in my opinion. I feel that the extremely specific filling system and rarity of converters has put of potential collectors who would rather have an easily replaceable part as opposed to something that is expensive and difficult to find.



The Waterman CF is a pen I take out in order to make quick notes or fill in forms. I find it visually appealing but cannot write with it for an extended amount of time. Since I’ve been through 3 of these, I am happy to say that I have found another piece that will stay with me in my collection.



Sponsored Content

#2 Uncle Red

Uncle Red

    Museum Piece

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 5,585 posts
  • Location:Pittsburgh,PA
  • Flag:

Posted 23 August 2014 - 00:45

Great pen! Thanks for the review.



#3 canibanoglu

canibanoglu

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 590 posts
  • Flag:

Posted 23 August 2014 - 17:51

Great review, it is so good that it has put this pen on my radar! Where might one find one of these beauties?


I sometimes write about pens, inks and papers!

#4 perth

perth

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 406 posts
  • Location:Bangkok
  • Flag:

Posted 24 August 2014 - 00:19

Thank you! This is a vintage pen which isn't quite well publicised, so you might want to check eBay. I've rarely seen these pens on sale by the more well known websites, but peytonstreetpens.com seem to have a few of them. The more ahrder (and more expensive) part is finding a converter, which I also got off eBay.



#5 judo

judo

    Mint

  • Member - Gold

  • PipPipPipPip
  • 61 posts
  • Location:Cheshire
  • Flag:

Posted 16 October 2014 - 13:22

Thank you for a great review. I agree with your comments. My Waterman CF is gold plated "Barleycorn" finish with medium 18k nib and it writes beautifully. I bought the pen in a general auction and it worked straightaway after filling. The sac in the converter tube felt a little hard, so I have bought a genuine Waterman CF spare converter from Penbox and some Havana Brown Waterman CF cartridges from ebay. Better safe than sorry as the spares are not always available and the modern international standard cartridges and convertors don't fit.


"In my early days there were few schools to help us in the pursuit of learning.

If we wanted to climb, we had first to make our own ladders".

Benjamin Brierley (1825-1896),

English weaver and self taught writer/publisher in Lancashire dialect.


#6 ac12

ac12

    Museum Piece

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 9,529 posts
  • Location:San Francisco Bay Area, California, USA - SFO
  • Flag:

Posted 17 October 2014 - 02:22

Though the pen is nice.  Anyone interested in a CF as a writer vs. collection pen, needs to really think hard about the logistics of the ink fill mechanism.  The CF is long out of production, so converter and ink cartridges are only available on the used market.  And your only choices are:

  • A crazy EXPENSIVE CF ink converter, if you can find one.  I've seen them for $40 on eBay.
  • CF ink cartridges, which are also difficult to find, and when you do is usually crazy expensive.  But supply and demand sets the price.
    Having said that, I do have a couple spares that I was given to do a PiF, IF I can find where I put them.

I've seen posts about people asking or trying to make other cartridges or converters fit, but have not seen any posts where they were successful.

If I recall, the problem is that the nipple in the CF is small is diameter, so the existing converters do not seal tightly onto the nipple.

IF someone can replace the gasket/seal at the front of a screw converter, with a gasket/seal with a small hole, that might work.


Edited by ac12, 17 October 2014 - 02:25.

San Francisco Pen Show - August 28-30, 2020 - Redwood City, California

www.SFPenShow.com


#7 Drone

Drone

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,432 posts
  • Location:Miami > Me < Ft. Lauderdale
  • Flag:

Posted 17 October 2014 - 14:39

Though the pen is nice.  Anyone interested in a CF as a writer vs. collection pen, needs to really think hard about the logistics of the ink fill mechanism.  The CF is long out of production, so converter and ink cartridges are only available on the used market.  And your only choices are:

  • A crazy EXPENSIVE CF ink converter, if you can find one.  I've seen them for $40 on eBay.
  • CF ink cartridges, which are also difficult to find, and when you do is usually crazy expensive.  But supply and demand sets the price.
    Having said that, I do have a couple spares that I was given to do a PiF, IF I can find where I put them.

I've seen posts about people asking or trying to make other cartridges or converters fit, but have not seen any posts where they were successful.

If I recall, the problem is that the nipple in the CF is small is diameter, so the existing converters do not seal tightly onto the nipple.

IF someone can replace the gasket/seal at the front of a screw converter, with a gasket/seal with a small hole, that might work.



I bet you could use some silicone adhesive and glue a converter in. Not ideal, but when desperate... Start with a Sheaffer's compatible converter, those fit small nipples.



#8 perth

perth

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 406 posts
  • Location:Bangkok
  • Flag:

Posted 24 October 2014 - 01:03



I bet you could use some silicone adhesive and glue a converter in. Not ideal, but when desperate... Start with a Sheaffer's compatible converter, those fit small nipples.

That's one way to make an "integrated filling system" for those who have a passionate hate for converters...just glue it in!



#9 anilv

anilv

    Dipped Only

  • Member - Silver

  • Pip
  • 3 posts
  • Flag:

Posted 26 February 2018 - 06:24

Hi Perth,



I got a Waterman CF a few months back but the convertor was not working as the bladder had crumbled.



Before buying a convertor online that 'might' fit, I decided to pay a visit to the local 'pen doctor' to see if he had one which could be fitted.



Wellll he didn't have an exact drop-in replacement but he modified a cartridge and a small piston-type convertor and I ended up with this.



Waterman CF convertor.jpg



Its not pretty but it works. It seems to be seeping a bit at the end of the covertor and I might seal the joint with some super glue. I don't plan on using this regularly so its fine as it is.



A picture of the pen..



Waterman CF.jpg



Nib detail.



Waterman CF 2.jpg



I always thought these pens were made in the USA but this one has Made in France on the cap?



Anilv







#10 wspohn

wspohn

    Donor Pen

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 3,043 posts
  • Flag:

Posted 03 March 2018 - 19:32

I have quite a few CFs. The converters are available. A google search shows a couple on Amazon.ca for $26 Can. and $11.50 US on one pen site (I stopped there but they can be had). As you will probably use only one pen at a time, and as it is ill advised to leave these pens full of ink as they can corrode around the nib, it is easy to swap one converter back and forth as needed.



I also have large hands, but I find the CF such an elegant pen that I can't resist including them in my rotation.  The moire pattern (also available in a gold finish) is almost unique - you don't see it in other pens and it would be interesting to know how they accomplished it. Gold shown below.






My favourite pattern is the Crocodile - here is one of mine in sterling:





Bill Spohn
Vancouver BC
"Music is the wine that fills the cup of silence"

Robert Fripp
Posted Image
