A Hero 616 With A 14Kt Gold Nib


  • Please log in to reply
7 replies to this topic

#1 mbSailor

mbSailor

    Dipped Only

  • Member - Silver

  • Pip
  • 8 posts

Posted 25 November 2011 - 20:41

Two years ago I bought a Hero 100 with a 14Kt gold nib. Unfortunately after only a couple of weeks some cracks appeared on the grip section. I was very disappointed because that pen was writing very well.

One month ago I bought some very cheap black Hero 616 (Jumbo). I read lots of good things here and on the Web and, indeed, they write well but not as good as the gold nib of my broken Hero 100. So, I wondered might I replace the steel nib of a Hero 616 with a gold nib of a Hero 100?

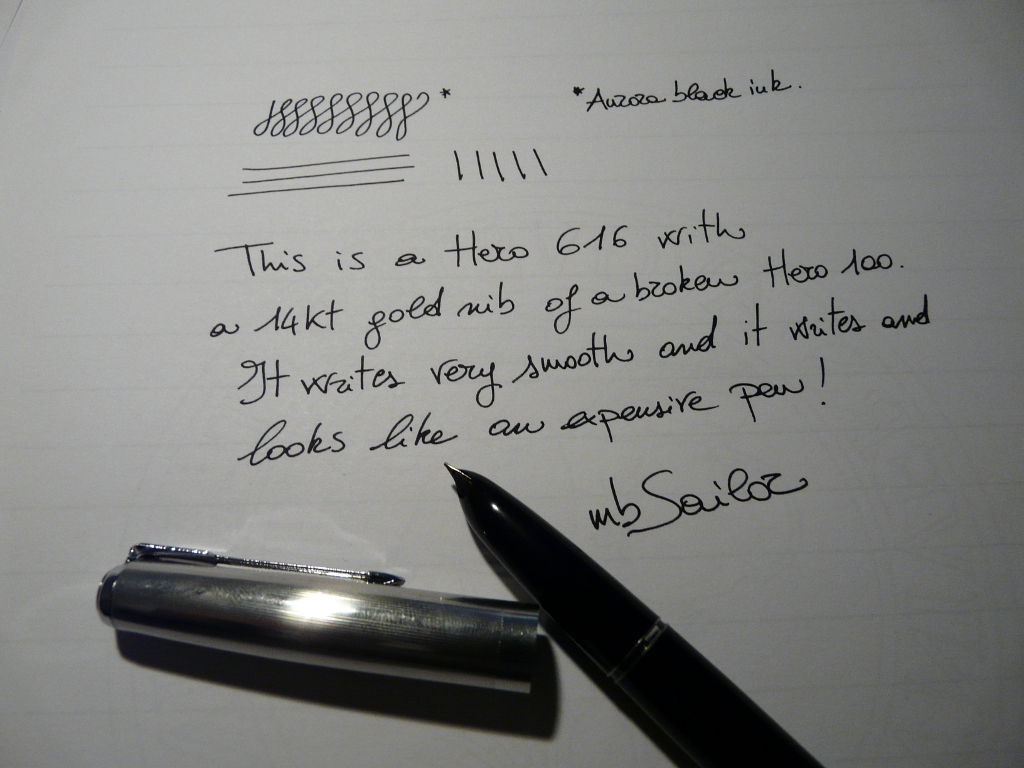

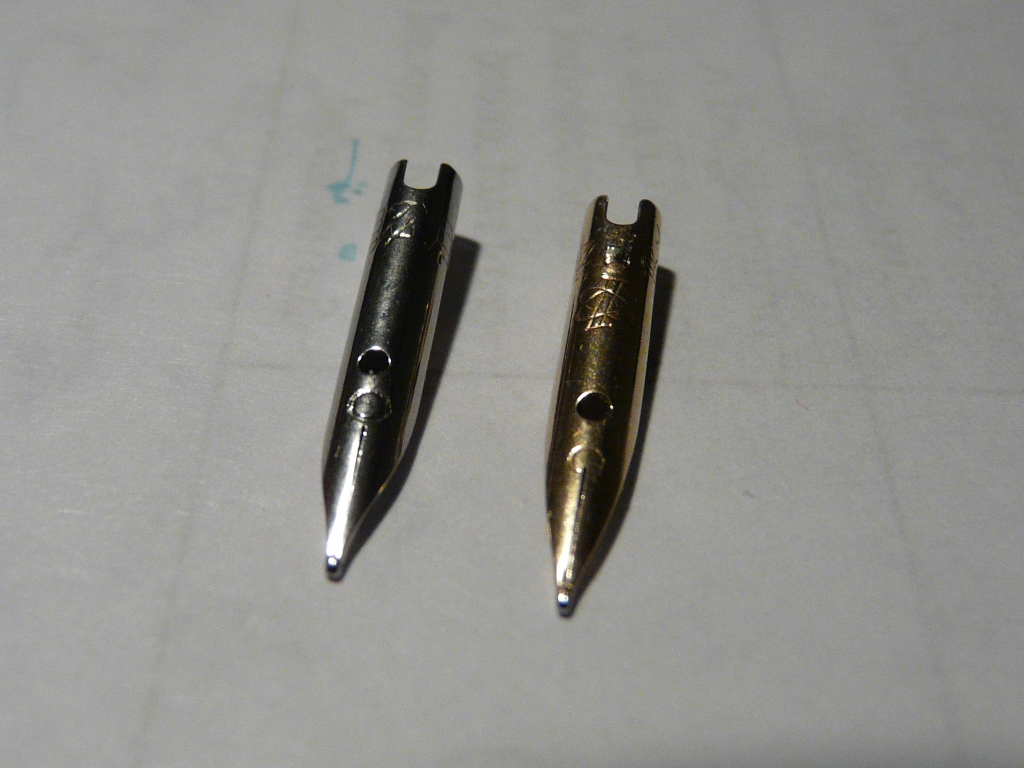

I disassembled a Hero 616 by following this picture tutorial, I extracted the 14Kt gold nib of my broken Hero 100 (unfortunately, to do this I had to cut the grip section but the pen was already unusable) and, yes, the two nibs were very similar as I suspected (a part from a small tooth in the body of the gold nib that I removed by a pair of pliers). Then, I assembled the new 14Kt gold nibbed Hero 616. I filled it with my favorite black ink (i.e. Aurora) and I used it and it writes really well as expected!

The plastic body of a Hero 616 is worst than the plastic body of a Hero 100 but its dimensions suit better for me. The shape and the dimensions of a Hero 100 are practically the same of the ones of a Parker 61 (I own one, I compared them side by side) while the shape and the dimensions of a Hero 616 Jumbo are practically the same of the ones of a Parker 51 (I own one as well). The Parker 61 is smaller and thinner that a Parker 51 and I prefer the latter.

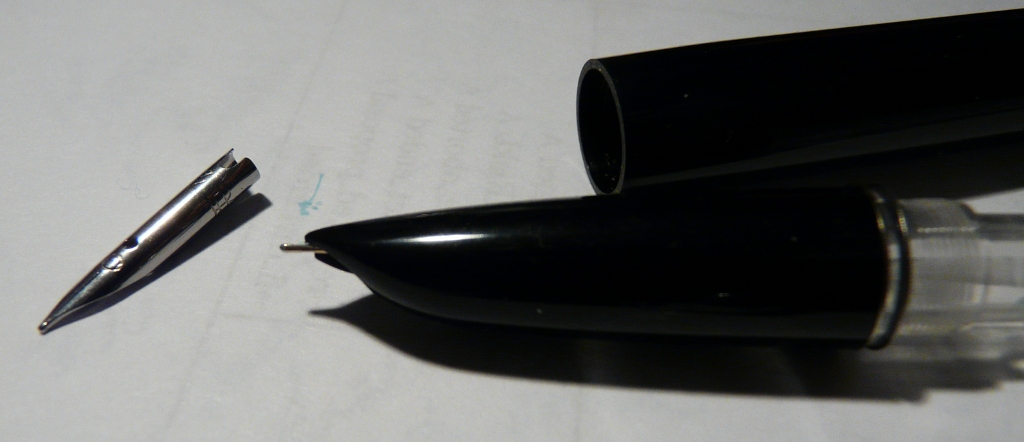

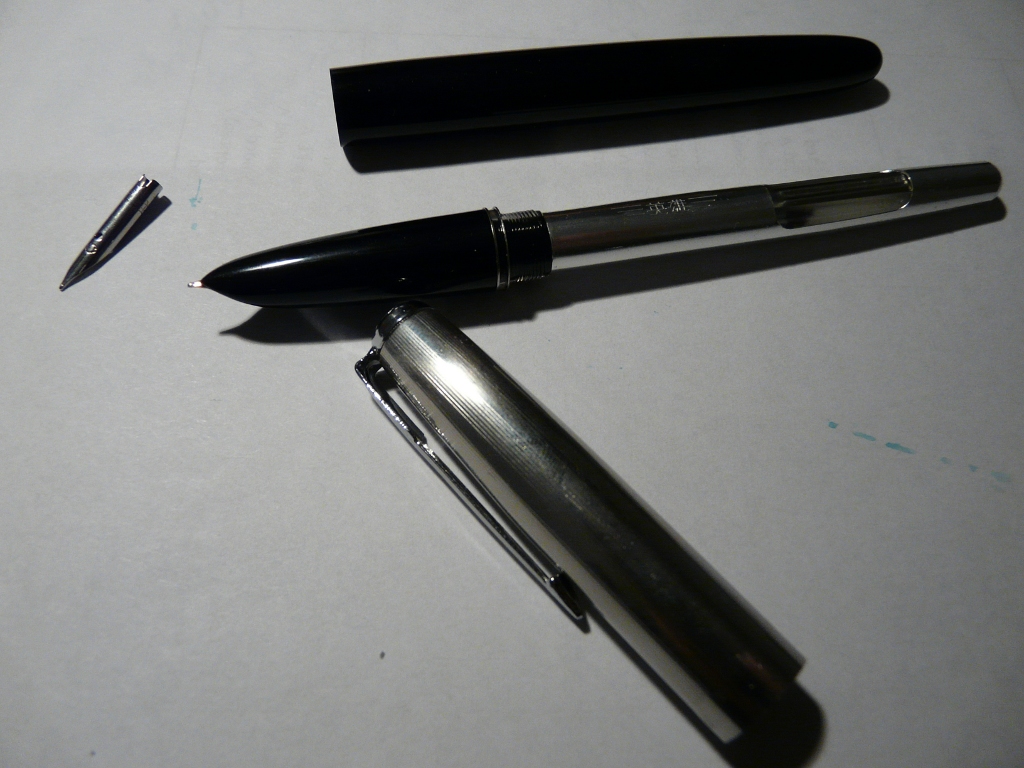

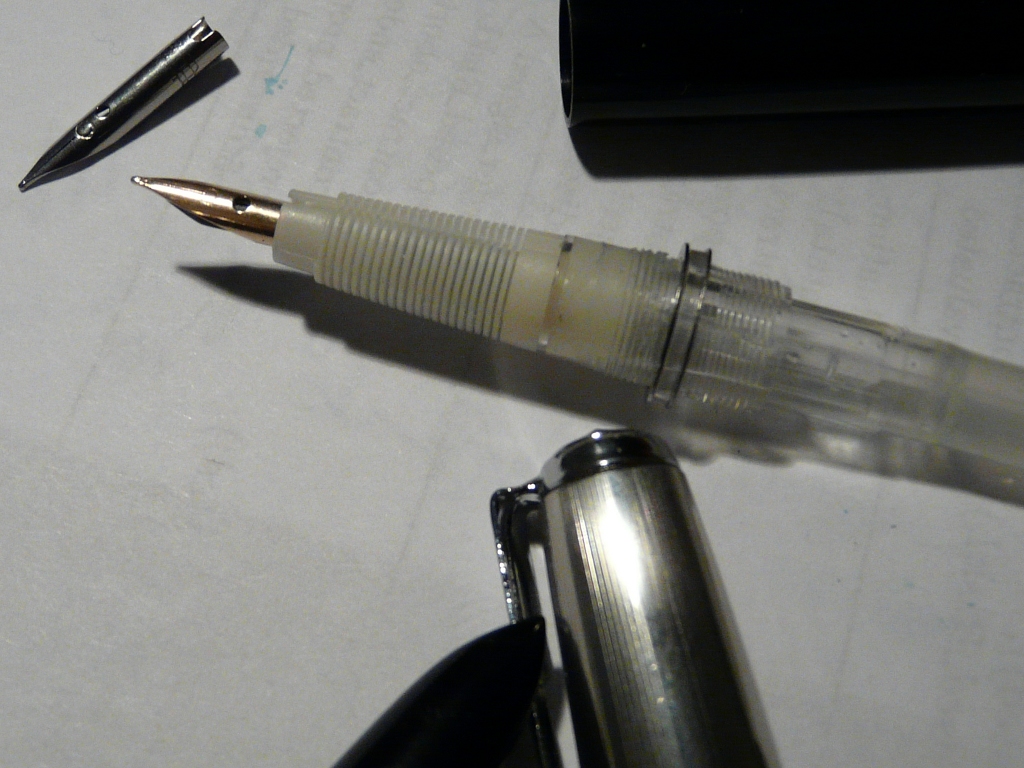

Here some pictures of the process of nib replacement.

Best, mbSailor.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Edited by mbSailor, 25 November 2011 - 22:23.


Sponsored Content

#2 krokens

krokens

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 127 posts
  • Location:Girona (Spain)
  • Flag:

Posted 26 November 2011 - 14:35

Very interesting way to reuse a good nib. Well done!. Congratulations. :thumbup: :thumbup:

#3 Uncle Red

Uncle Red

    Museum Piece

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPip
  • 5,585 posts
  • Location:Pittsburgh,PA
  • Flag:

Posted 26 November 2011 - 15:44

Good Job and thanks for showing us how you did it. :thumbup:

#4 th3

th3

    Mint

  • Member - Gold

  • PipPipPipPip
  • 78 posts
  • Location:Wahington, DC
  • Flag:

Posted 26 November 2011 - 19:26

Very impressive! Great pics too.

#5 mbSailor

mbSailor

    Dipped Only

  • Member - Silver

  • Pip
  • 8 posts

Posted 27 November 2011 - 15:58

Thanks for your comments! After two days of intensive use I confirm the pen works very well.

#6 Ad_Astra

Ad_Astra

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 491 posts
  • Location:Georgia
  • Flag:

Posted 27 November 2011 - 16:57

Looks amazing, and good pics too. A+ job! :thumbup:
Non est ad astra mollis e terris via. - Seneca

#7 Flounder

Flounder

    Forum Moderate

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,897 posts
  • Location:Scotland

Posted 27 November 2011 - 17:53

Nicely done, man with the golden 616! Are the Hero 100 barrels and 616 barrels swappable? If so, and you fancy a bit more meddling, hang on to the Hero 100 barrel, metal clutch rings and sac guard, you have almost everything you need for the blind cap button filler I should be writing!








Latest pen related post @ flounders-mindthots.blogspot.com : vintage Pilot Elite Pocket Pen review


#8 mbSailor

mbSailor

    Dipped Only

  • Member - Silver

  • Pip
  • 8 posts

Posted 27 November 2011 - 21:33

Nicely done, man with the golden 616! Are the Hero 100 barrels and 616 barrels swappable? If so, and you fancy a bit more meddling, hang on to the Hero 100 barrel, metal clutch rings and sac guard, you have almost everything you need for the blind cap button filler I should be writing!


Thanks Flounder. Unfortunately no other part is swappable... That's a pity because the Hero 100 is really well built.
