Comparison Of Real Vs. Fake Montblanc [Pic Heavy]


  • Please log in to reply
44 replies to this topic

#1 ecox

ecox

    Erik

  • Member - Gold

  • PipPipPip
  • 49 posts

Posted 30 May 2011 - 17:10

A while back I discovered that my MB 149 was transparent to infrared light. You could use infrared light to see through the pen. Someone on this board was curious if a fake MB would be, too, so he sent me a fake Chopin to have a look at. I thought it would be a good opportunity to examine the fake thoroughly.

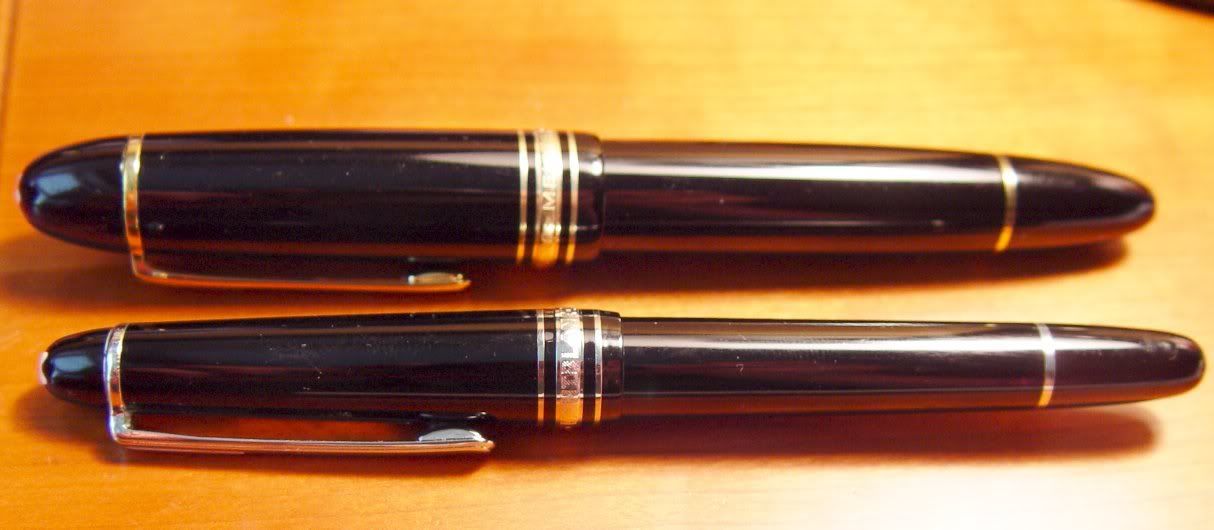

My real 149 (top) and the fake Chopin (bottom).

Posted Image

The fake looks ok, and from a distance, such as across a boardroom table, it probably could fool most people. The 149, made of MB’s “precious resin,” feels ever so slightly slippery; the fake lacks that tactile sensation. Still, unless you have a real MB on hand to compare a fake with, odds are you wouldn’t be able to tell by touch that the fake’s a fake.

The fake even has “Pix” engraved under the clip, which some claim that fakes do not have:

Posted Image

Taking the caps off by unscrewing the rough and gritty threads (another clue – real MB caps unscrew smoothly), the fake still looks pretty convincing from a distance. Sure, the trim ring below the threads is a little thick, but you’d have to be a total MB nerd to notice:

Posted Image

The nib, too, looks ok from a distance (although when you write with it, you hopefully would notice that it’s stiff as a nail and offers no feedback whatsoever):

Posted Image

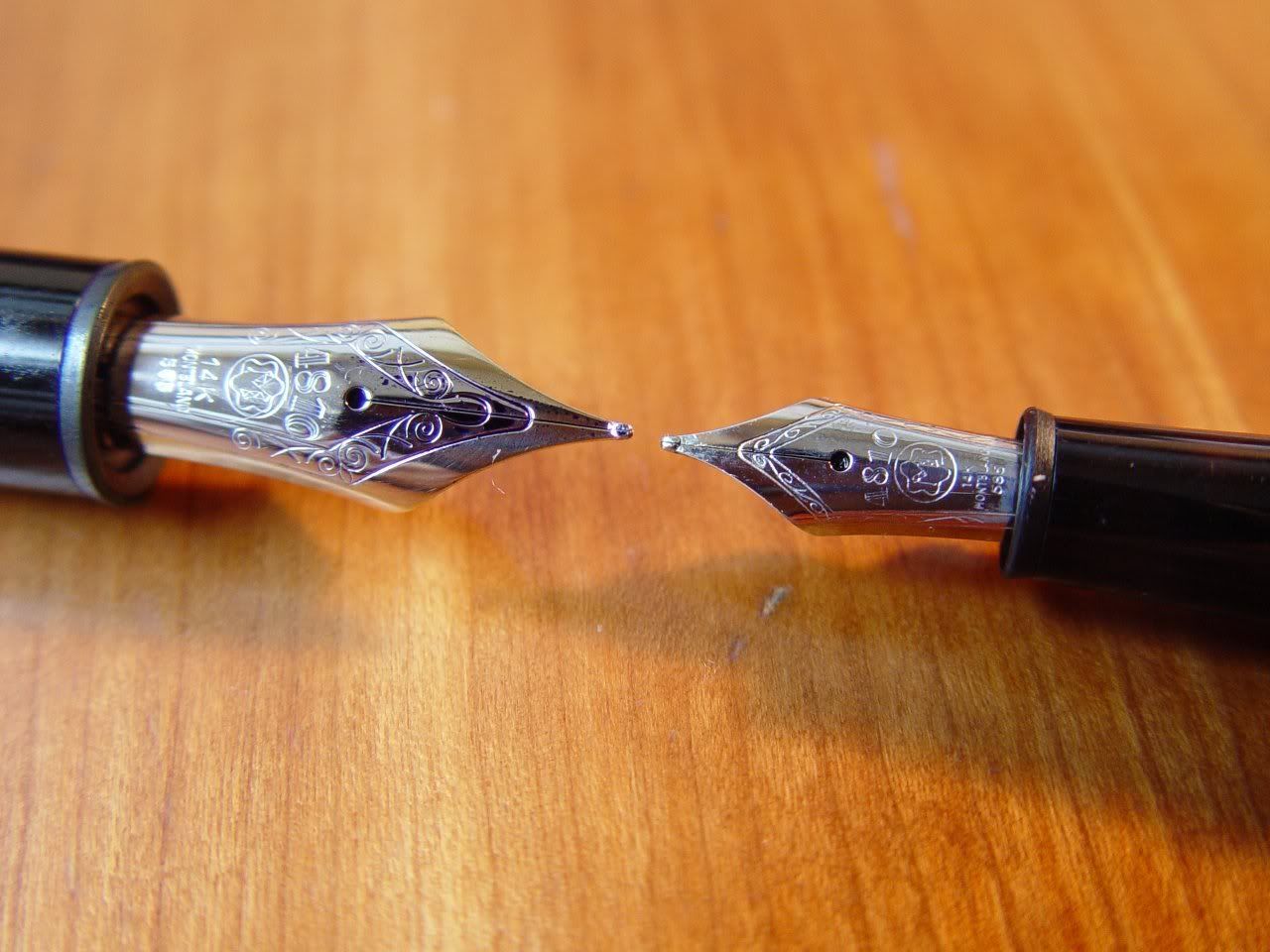

Only when you look closer does the fake start to fall apart. The nib is gold plated steel. Here you can see some where some plating has flaked off:

Posted Image

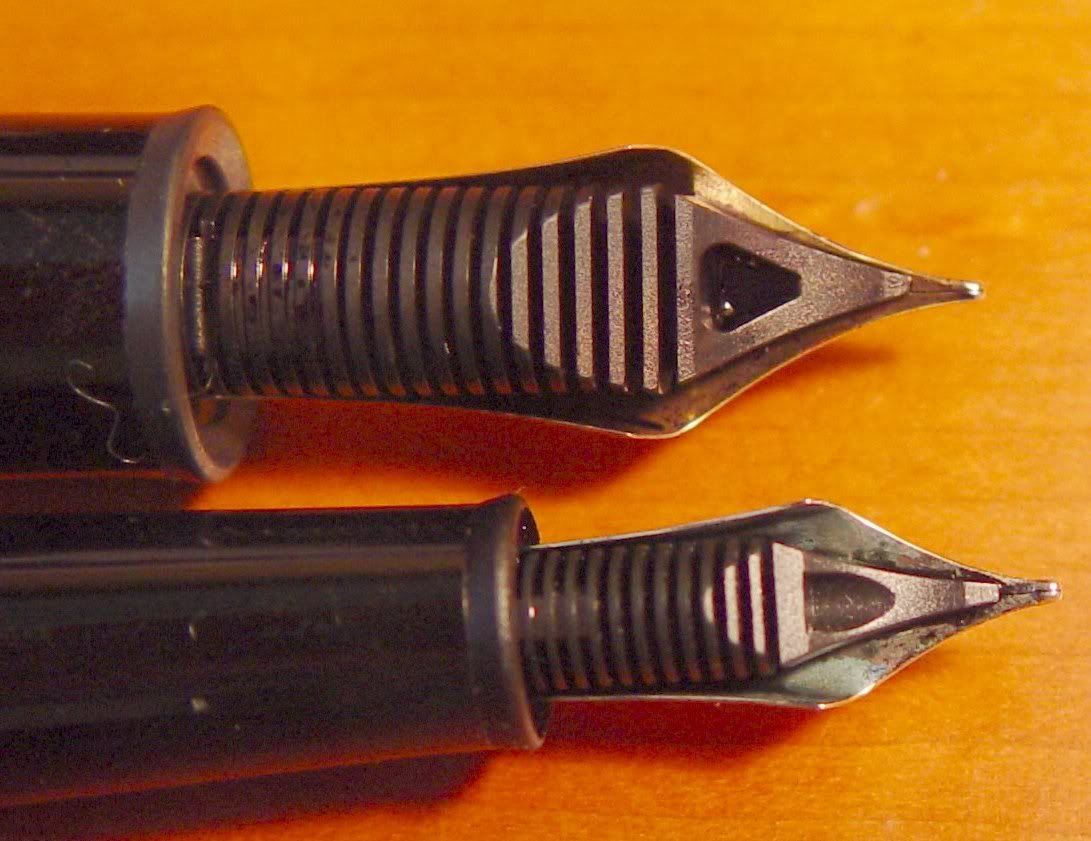

And if you look at the underside of the nib, it’s raw steel. Not even plated. Compare that to my 149, which is a solid gold nib – the underside is gold:

Posted Image

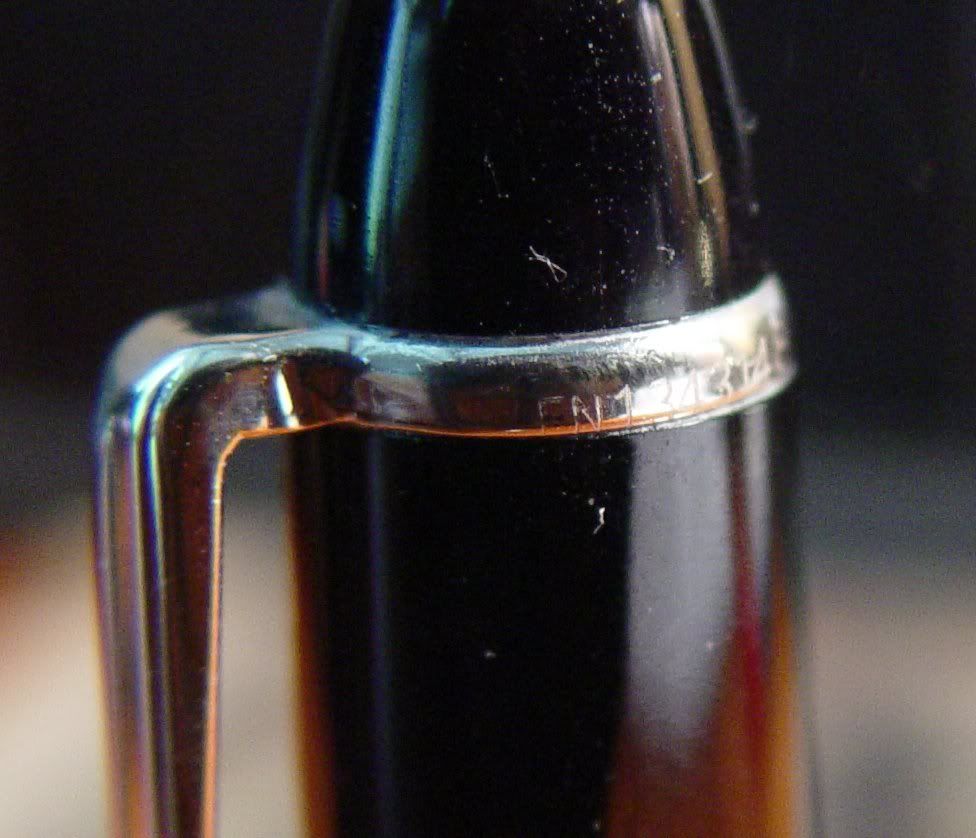

The clip ring has a serial number, but it’s not engraved on the level. And remember, the trim is supposed to be plated in platinum; I’ve never seen platinum look this crappy:

Posted Image

If you hold a real MB up to a strong light source, it will show through a little crimson. Think of a real MB as made of a material that is akin to the world's darkest sunglasses. It's long been said that one easy way to tell a fake from the real thing is to hold it up to a light because fake ones don't have a crimson glow.

I can state that, at least as applied to this particular fake, that assumption is not true.

The fake actually showed much more red when held up to a light than the real MB. My camera's white balance got thrown off, so the real MB looks slightly blue in this picture. It's not. In reality, it was a deep red, close to the color of blood. The fake was close in color, but much brighter, likely a combination of the caps being made of different material and the fake Chopin’s cap being thinner. Note how the real one has much less show-through at the open end of the cap. The "precious resin" seems to be double thick there, which is where the threads are. The fake Chopin lacks that detail:

Posted Image

To sum up so far: there are some “tells” as to the Chopin being a fake: the underside of the nib is a big tell, and the trim work’s sloppiness is another. Looking for “Pix” under the clip, or checking for a red glow, are not reliable ways to deem a Montblanc real or fake.

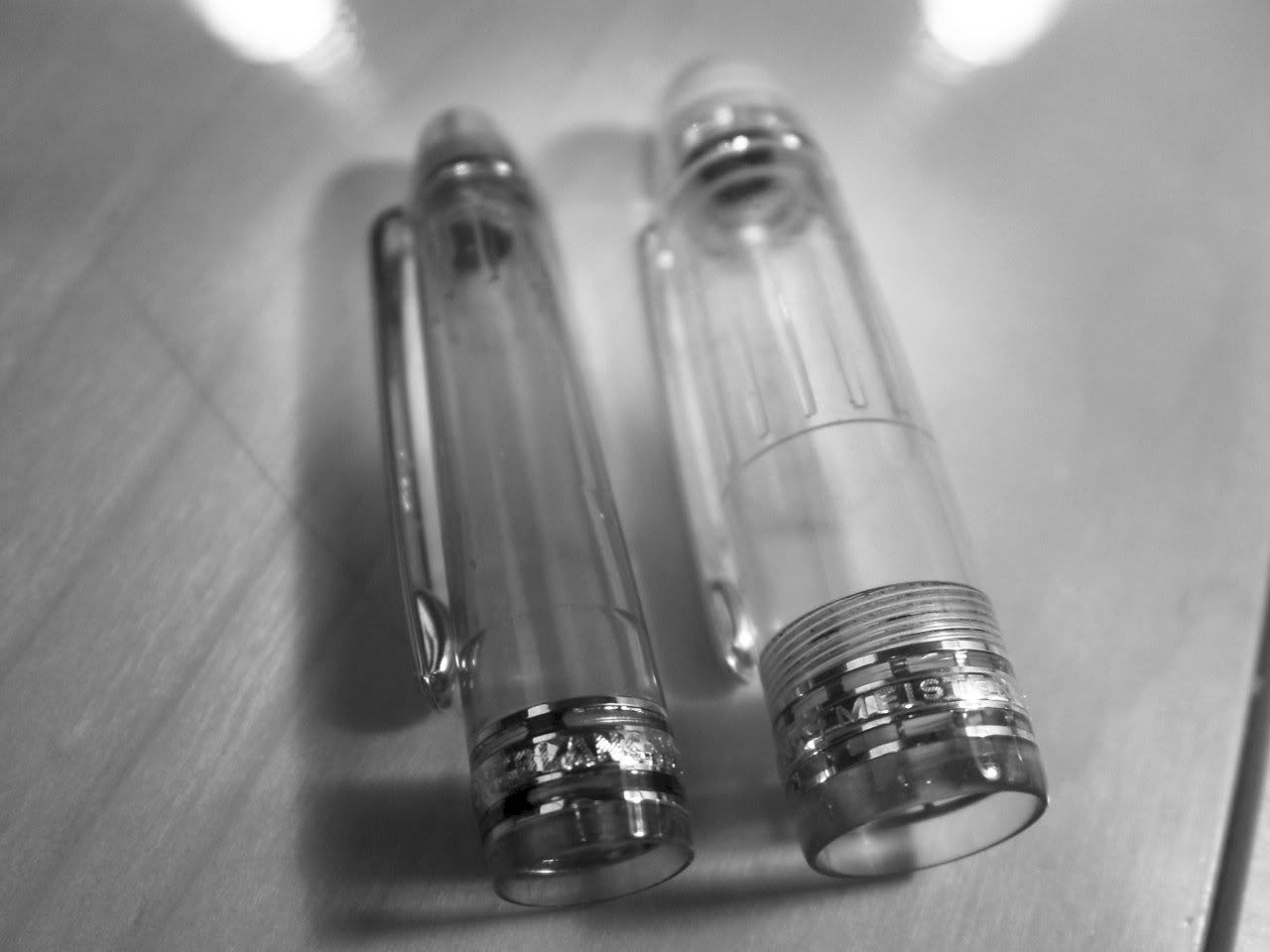

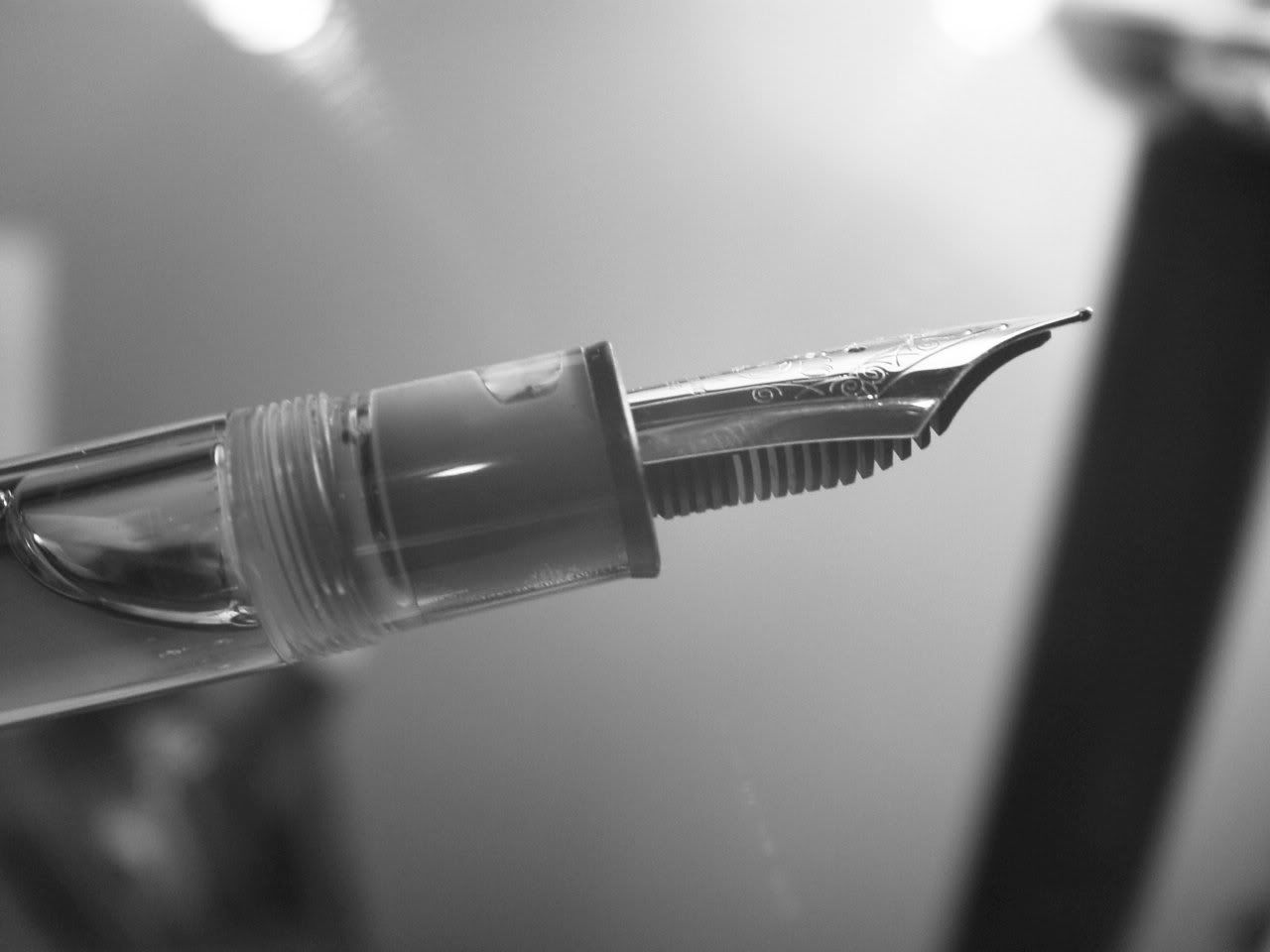

But I started this post by mentioning infrared light. A real MB is transparent to infrared light. Can we use infrared light to help identify fakes from the real thing? Yes and no. Let me explain:

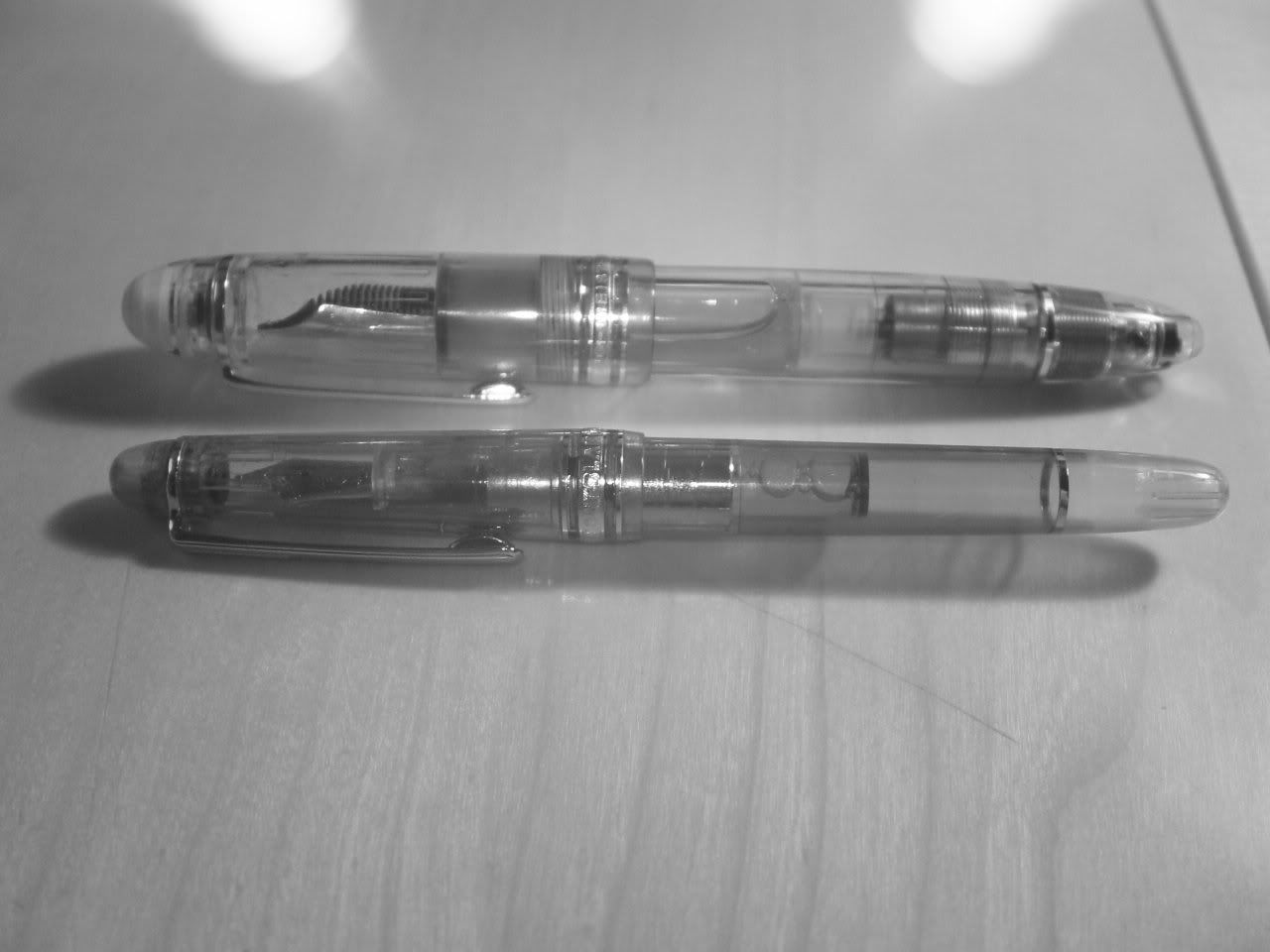

The fake Chopin is transparent to infrared light pretty much to the same extent as the real 149 is. The fake is a tiny bit less clear, which I suppose is down to it being made of a different mix of plastics than the real MB's "precious resin." Check out the caps. The fake (the smaller one) is slightly tinted, while the real deal is transparent to infrared:

Posted Image

Lighting, technique, or a host of other factors could impact how the infrared image came out, so I'm not comfortable proclaiming that one way to tell a fake from a real MB is by the transparency of the pen under infrared. Some of the fake Chopin is as transparent as the real 149. Look at the non-nib end of the fake Chopin. See how it's clearer than the body of the pen? It's almost as clear (maybe just a tiny bit cloudy) as the real 149:

Posted Image

But remember I said that the answer to infrared as a verification tool was both yes and no? The reason the answer was no is because fakes can be made to be transparent to infrared light to a degree essentially indistinguishable from the real thing. But using infrared as a sort of pen X-ray, seeing into the pen in a way that you couldn’t otherwise – even if the pen was disassembled – is a valuable tool to help determine whether the pen is real.

The 149 (top) has a gooey sealant where the nib is set into the body. It shows that care was taken in assembling the pen. The fake Chopin (bottom) lacks the gooey sealant.

Posted Image

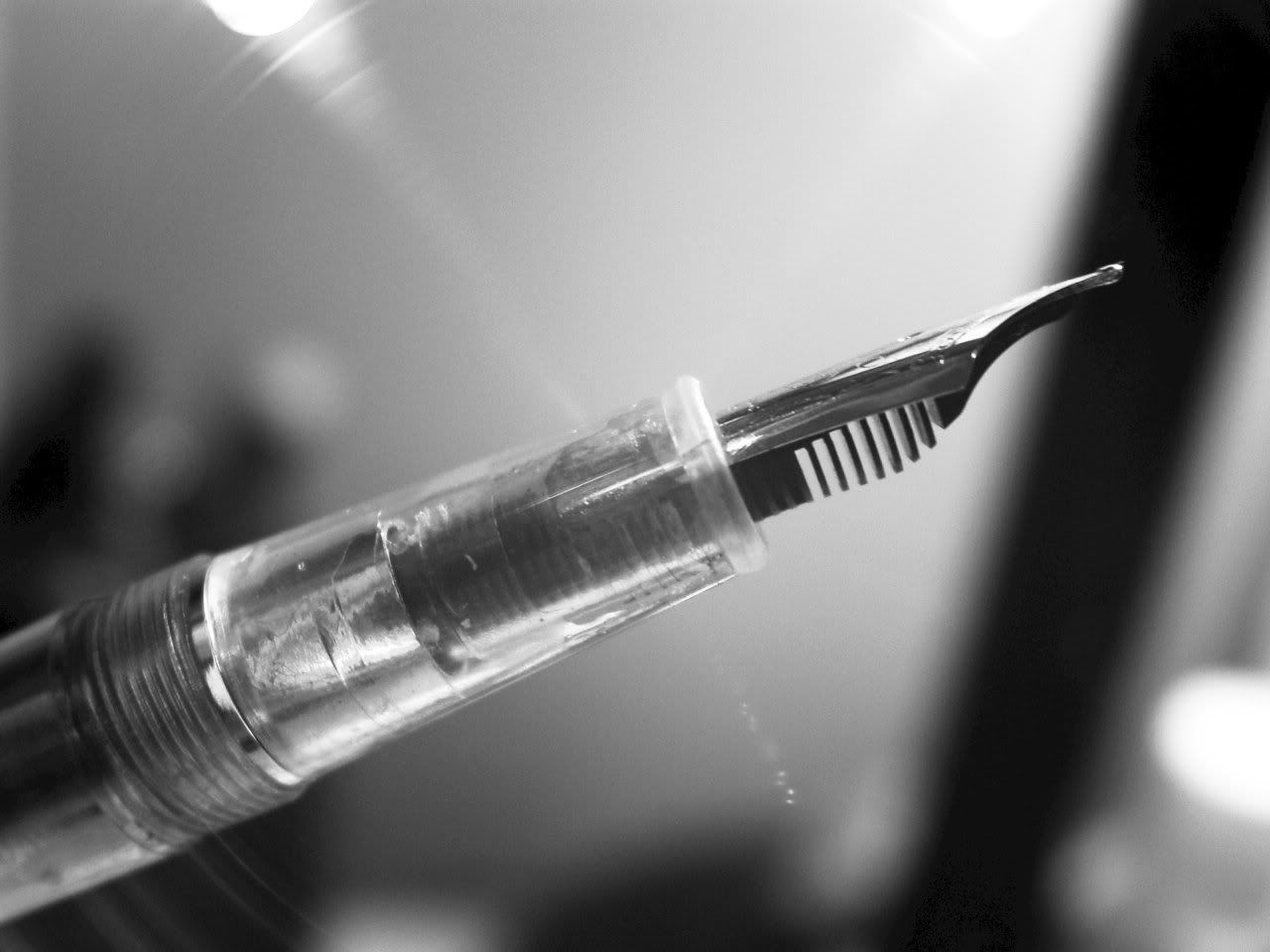

Again, up close the real 149 (notice the micro cracks where the threads meet the ink chamber. Those are normal and common):

Posted Image

And the fake Chopin. Notice the stress fractures inside pen where the nib and feed appear to have been roughly pushed into place. I would not expect to see this on a real MB:

Posted Image

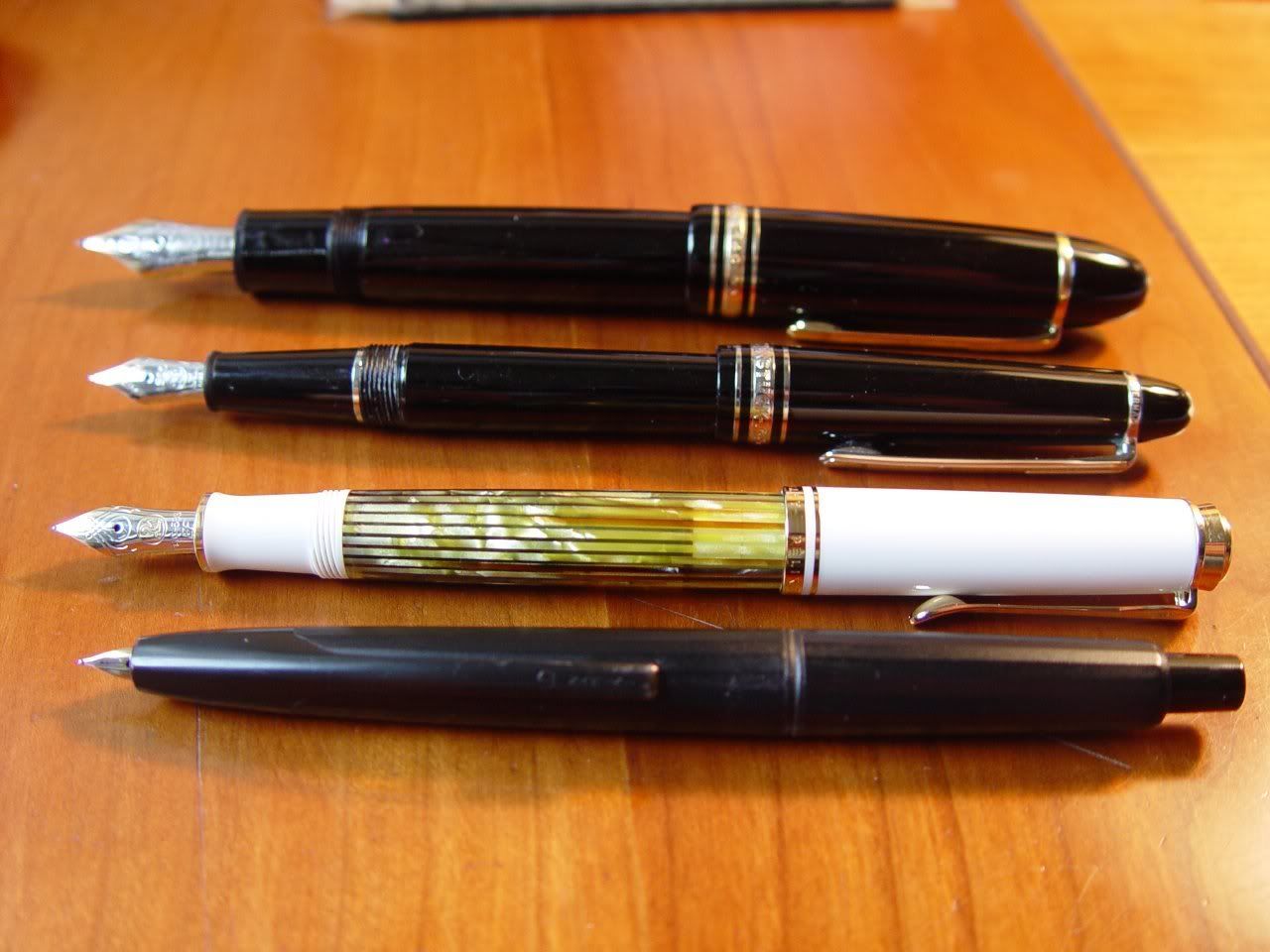

Infrared examination does not work on all pens. Here’s my humble collection, plus the fake Chopin (second from top);

Posted Image

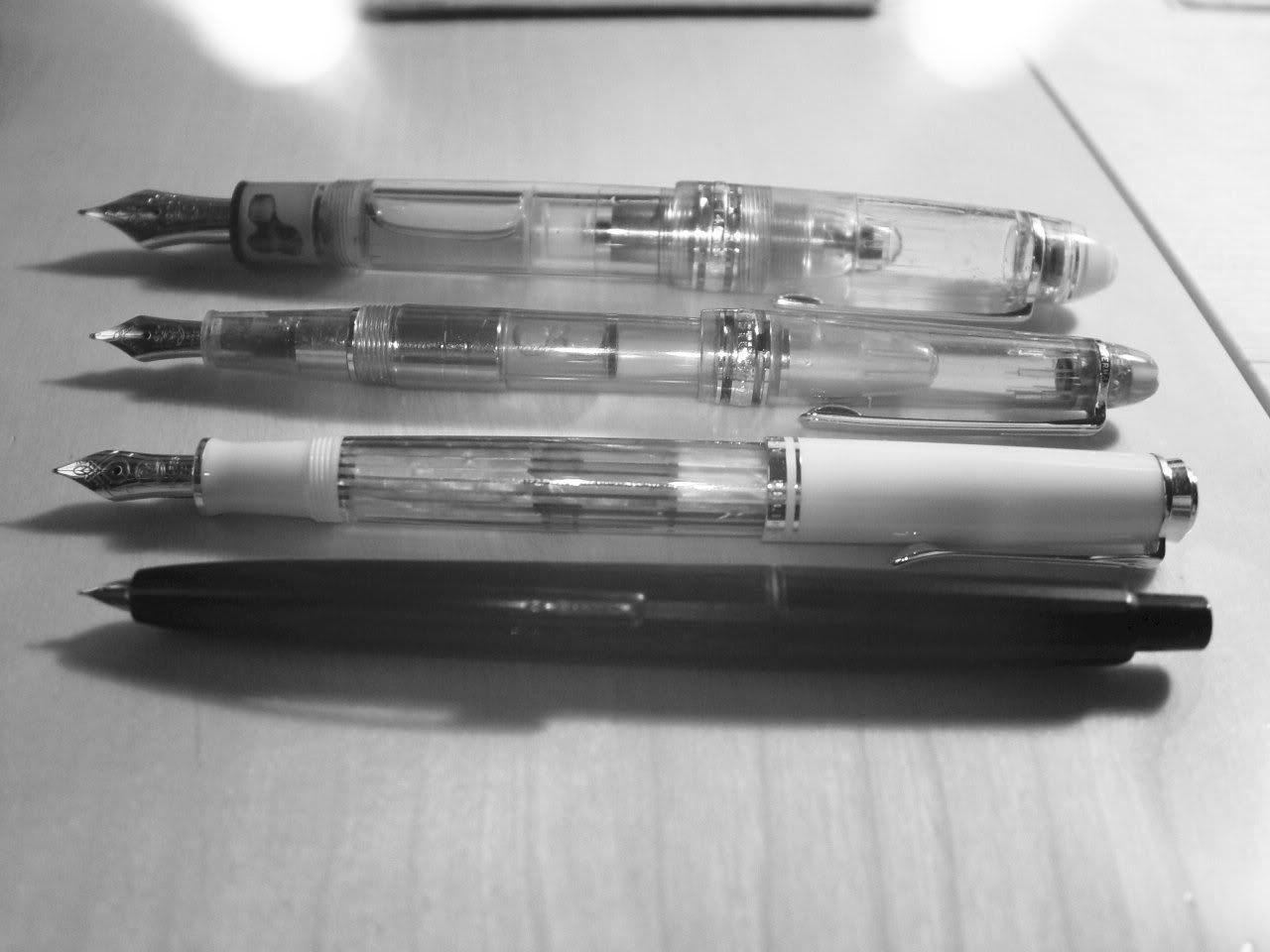

In infrared, the Stealth Namiki Vanishing Point, made of brass and plastic, is not transparent to infrared. The Pelikan M400 White Totroise’s body is somewhat transparent to infrared, but its white plastic is not.

Posted Image

To conclude, infrared is a very useful tool to look inside the pen to see how carefully it was put together. The fake I examined evinced a lack of care in assembly. This is not to say that a better fake couldn’t be put together more carefully, though.

Next up, I did something even nerdier than looking at the pens in infrared. MB’s “precious resin” is a trade secret, I assume. So the fake will not be made of exactly the same blend of plastics. They should, therefore, have different resonant frequencies. I tested the cap of each.

In theory, and all else being equal, the bigger cap should make a deeper sound when hit compared to the smaller cap. Think of drums: bigger usually equals deeper. Oddly enough, the real (and larger) 149 cap had a higher resonant frequency than the fake (smaller) Chopin cap: 1530hz vs. 1088hz.

In general, the higher the resonant frequency the stronger something is, but the more likely it is to shatter when it fails. Put the other way, the lower the resonant frequency, the less strong it is, but the less likely it is to totally shatter when it fails. How to explain this result? My best guess is that the real cap, made of "precious resin," has some sort of glass fiber in it, making it strong but more brittle. The fake cap is probably just some sort of deep red plastic without the glass in it.

Unrelated to whether the Chopin was a fake, the gent who sent it to me for testing also sent me some scratch remover. I dutifully tested it by scratching the surface with a knife:

Posted Image

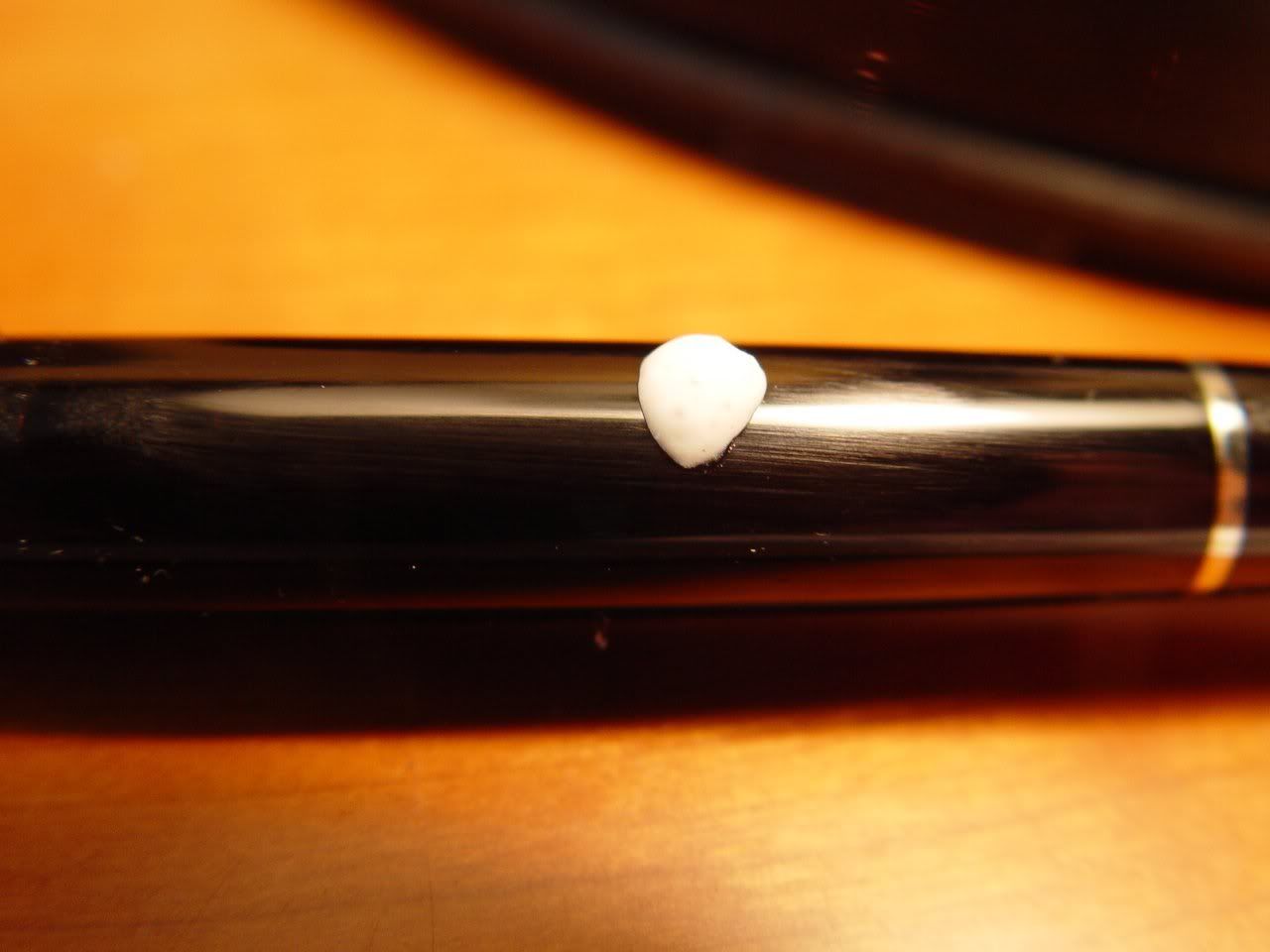

I put some fine abrasive goop on and rubbed with a bit of cotton:

Posted Image

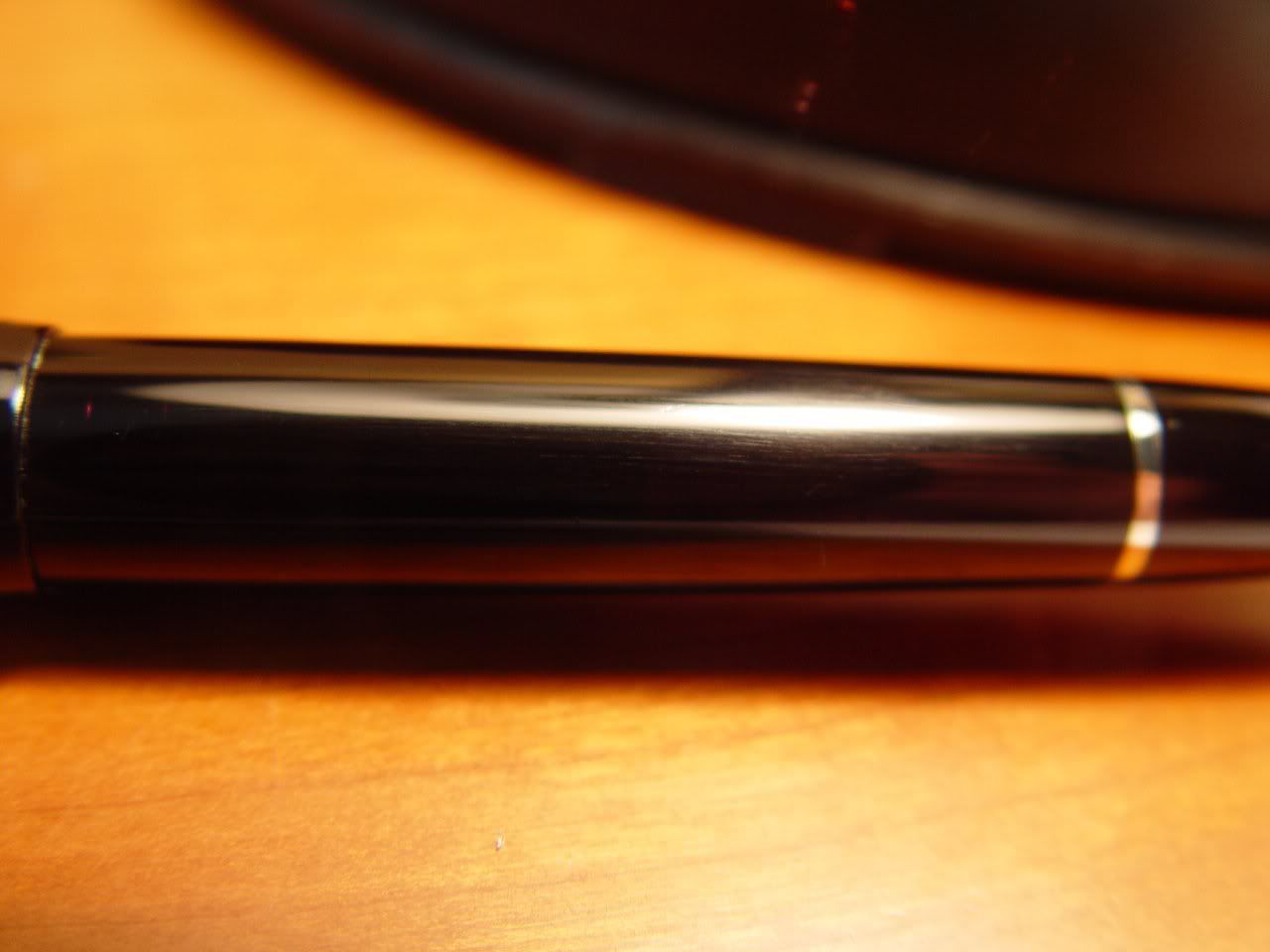

And after about a minute, the scratch was pretty much all gone:

Posted Image

That's pretty neat!

Let's sum up:

  • From a distance, a Montblanc fake might impress someone. But up close, or by handling or using it, the lack of quality is easier to identify.
  • The red glow is not dispositive. This fake had it. Others could, too.
  • "Pix" engraved under the clip is not dispositive. This fake had it. Others could, too.
  • Whether the pen is transparent to infrared light is not a reliable method by which to determine a MB's genuineness. This fake was about as transparent as a real Montblanc.
  • Infrared is a wonderful tool to X-ray the Montblanc to see how the innards are put together. On this fake, the infrared revealed numerous cracks and a lack of sealant where the nib and feed apparently were roughly forced into the body.
  • Real Montblanc "precious resin" may make a higher frequency sound than a fake made of a different sort of plastic.
If I were going to buy another Montblanc, I'd either buy from someone I trust or buy from a Montblanc boutique. It's simply too difficult and time-consuming to try to verify a suspect Montblanc as genuine or not.

I hope this was helpful and enjoyable.

-Erik

#2 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 11,958 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 30 May 2011 - 17:15

Hi Erik, thanks for re-posting. very useful and Excellent study.

#3 dennis_f

dennis_f

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 282 posts
  • Location:Toronto, but not currently

Posted 31 May 2011 - 03:20

Thanks for taking the time to run through all this Erik. Incredibly informative!
D.

#4 Brian C

Brian C

    I'm Batman

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,279 posts
  • Location:Kingman, Arizona
  • Flag:

Posted 31 May 2011 - 04:07

Makes me want a Montblanc demonstrator.

#5 pb2au

pb2au

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 290 posts
  • Location:Toronto, Canada

Posted 03 June 2011 - 07:09

Very interesting post. :thumbup:

#6 elysee

elysee

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,287 posts
  • Flag:

Posted 03 June 2011 - 07:32

GREAT JOB! This was very informative and very interesting! Thank you very much!! : )

#7 SamCapote

SamCapote

    Got Warm Milk?

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 4,158 posts
  • Location:USA (CT)
  • Flag:

Posted 03 June 2011 - 07:38

Fascination details. Thanks for all the time you took and comparison shots. Excellent thread.
With the new FPN rules, now I REALLY don't know what to put in my signature.

#8 rockspyder

rockspyder

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 1,136 posts
  • Flag:

Posted 03 June 2011 - 14:56

Wow! Fascinating! I use infrared imaging a lot, but have never thought to examine my pens like this...now I will explore it for sure. Thanks!

#9 meghan

meghan

    Ink Hoarder

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 417 posts
  • Location:Atlanta, GA
  • Flag:

Posted 03 June 2011 - 17:47

This is fascinating. Thanks so much for posting! I feel fairly certain that I could identify a fake based on these characteristics but I'd be really interested to see one in person and comparing it to a genuine article to see if I could actually spot the impostor.

Brown Dog Paper: Handcrafted Letterpress Posted Image Posted Image

#10 penmanila

penmanila

    Vacumaniac

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 3,732 posts
  • Location:Manila/Virginia/San Diego
  • Flag:

Posted 03 June 2011 - 19:20

very helpful, many thanks!
Check out my blog and my pens

#11 Delphideo

Delphideo

    Part-time Indexer

  • Member - Gold

  • PipPipPipPipPipPip
  • 371 posts
  • Location:Mexico
  • Flag:

Posted 03 June 2011 - 20:49

I'm not into Montblancs, but wow! That was really comprehensive. If I ever see another Montblanc, I'll be sure to use your information since I have had two fakes given to me as gifts.
In some things in life it's better to take a Zen approach. If you think too much you won't achieve your goal, wheras if you don't think and let yourself go, it shall be achieved with ease. I find this helpful in writing, kendo and music.

#12 megapenfreak

megapenfreak

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 112 posts
  • Location:Melbourne, Australia
  • Flag:

Posted 07 June 2011 - 12:52

Unreal thanks for that

#13 georges zaslavsky

georges zaslavsky

    vintageandmodernpenslover

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 11,575 posts
  • Location:France
  • Flag:

Posted 07 June 2011 - 14:09

very good observation :thumbup:
Pens are like watches , once you start a collection, you can hardly go back. And pens like all fine luxury items do improve with time
Posted Image

#14 ethernautrix

ethernautrix

    Be the Pen Posse you want to see in the world.

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 10,660 posts
  • Location:Cloud Eight

Posted 07 June 2011 - 16:22

Whoa. I wonder if I would have been able to tell the Chopin was fake. Probably by the nib, but... the red glow? Someone went to a lot of trouble to make a convincing fake (as opposed to the junky fakes that are easy to spot).
I ink; therefore, I am
Fleekair <--French accent.

#15 meiers

meiers

    Donor Pen

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPip
  • 3,824 posts
  • Flag:

Posted 07 June 2011 - 20:09

What an amazing presentation! Thank you. I learned something today.
That "Chopin" is a fountain pen made in hell. What an absolute nightmare!

Matt

Edited by meiers, 07 June 2011 - 20:09.


#16 kandarp

kandarp

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 425 posts

Posted 07 June 2011 - 21:44

Very helpful! Thanks.
WTB: Box for Montblanc Agatha Christie.
WTB: Montblanc 146 (Celluloid Body) with M or B nib

#17 SheilaM

SheilaM

    Parrot Wrangler

  • Member - Gold

  • PipPipPipPipPipPip
  • 299 posts
  • Location:Seattle, WA
  • Flag:

Posted 08 June 2011 - 03:32

Wow, thats amazing. Thanks for a fascinating read, and all the effort that went into making it so!
"Expect a most agreeable letter, for not being overburdened with subject (having nothing at all to say), I shall have no check to my genius from beginning to end." --Jane Austen

Posted Image
My blog: Does This Pen Make Me Look Fat? Twitter: @penfatness Instagram: sheilamcl Pinterest: SheilaM

#18 jotterius

jotterius

    ebonite junkie :)

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 440 posts
  • Location:Greece
  • Flag:

Posted 10 June 2011 - 19:42

Is it possible to recognise a fake mont blanc from the writing experience. Is the fake one scratchy?
Yes I confess, I am still using my Jotter

#19 fmp

fmp

    Mint

  • Member - Gold

  • PipPipPipPip
  • 56 posts

Posted 11 June 2011 - 23:38

I read http://www.pixiq.com...r-own-ir-filter and use a portion of unexposed developed slide and 60sec of expose for this real 145 with regular camera, sorry for the blur. Note the sleeve for feed and nib and the thread of the bulkhead joining the section and barrel.

#20 xiphogonium

xiphogonium

    Dipped Only

  • Member - Bronze

  • Pip
  • 2 posts
  • Flag:

Posted 12 June 2011 - 19:22

Hi there,

very interesting! However the most obvious problem with the "Chopin" appears to be its sheer size. On your image it appears to be longer than or at least have the same length as the "cigar", as many here use to call the 149.
I own both models and the Chopin is considerably smaller than the 149.

Michael

Edited by xiphogonium, 12 June 2011 - 19:23.


#21 mdbrown

mdbrown

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 551 posts
  • Location:Hampton, VA
  • Flag:

Posted 12 June 2011 - 20:48

Is it possible to recognise a fake mont blanc from the writing experience. Is the fake one scratchy?


It's possible but not infallable. I have some fake Starwalkers. Write very smoothly. To tell a good fake typically takes a number of things that, taken together, will expose a fake for what it is.

My Starwalkers were easy to spot as they had a generic iridium point germany nib. Had the nib been well done in appearance then it would've come down to a couple of mistakes... the stars tend to be a little off center (a lot off center on a couple of them) and they laser etched a serial number on the clip... the Starwalker doesn't have this.

It is a well done fake otherwise though. They are getting better...

#22 SubodhK

SubodhK

    NOS (New Old Stock)

  • Member - Silver

  • PipPip
  • 21 posts
  • Location:Mumbai, India
  • Flag:

Posted 16 June 2011 - 10:28

Excellent and detailed write-up.

#23 Raskolnikov

Raskolnikov

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 317 posts
  • Location:Firenze - Italia
  • Flag:

Posted 16 June 2011 - 11:57

Great article, enlightening to say the least.

I read it carefully and lots of times to understand if my new Meisterstuck 146 (from an overally reliable collector) was genuine.

I went through the various tests although I think that the most important test is the... touch/sight personal test.

Anyway this morning I brought the pen to the Montblanc Firenze boutique as well, the manager confirmed the pen to be certainly authentic.

It lacks the PIX logo on the clip's underside (maybe it's from past 1997? Seller couldn't say for sure) and the "germany" and "serial number" writings appeared to be not exactly in line with each other. By just a small fraction of a millimeter, roughly (had to use a lens).

The gentle Montblanc woman told me that's due to the machine they use to do such writings, and that all the pens look like mine in that regard.

200 euros was an average price, I believe.

Edited by Raskolnikov, 16 June 2011 - 12:10.



#24 gmrza

gmrza

    Third World Child

  • Member - Gold

  • PipPipPipPipPip
  • 178 posts
  • Location:Melbourne
  • Flag:

Posted 20 June 2011 - 00:18

I have taken a couple of images of my Chopin using a Canon Powershot G5 which has been modified for infrared use.

Posted Image

Higher resolution versions of the image can be viewed via Flickr. I will upload a few more later.

While this image doesn't show it very well, there are considerable differences on the cap between the fake Mont Blanc and the genuine article. These differences only appear to be visible under in infrared light.

What also crossed my mind is that given that the pen is transparent to IT light, what is the impact of IR light on ink? Is the stability of inks affected by infrared light? I must admit I have no idea. In this instance, my pen is filled with Mont Blanc Burgundy ink - which very clearly absorbs strongly in the infrared part of the spectrum.

#25 bluejay

bluejay

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 561 posts
  • Location:Toronto
  • Flag:

Posted 20 June 2011 - 03:14

What did you use to test the resonance?

I have taken a couple of images of my Chopin using a Canon Powershot G5 which has been modified for infrared use.

Posted Image

Higher resolution versions of the image can be viewed via Flickr. I will upload a few more later.

While this image doesn't show it very well, there are considerable differences on the cap between the fake Mont Blanc and the genuine article. These differences only appear to be visible under in infrared light.

What also crossed my mind is that given that the pen is transparent to IT light, what is the impact of IR light on ink? Is the stability of inks affected by infrared light? I must admit I have no idea. In this instance, my pen is filled with Mont Blanc Burgundy ink - which very clearly absorbs strongly in the infrared part of the spectrum.



#26 gmrza

gmrza

    Third World Child

  • Member - Gold

  • PipPipPipPipPip
  • 178 posts
  • Location:Melbourne
  • Flag:

Posted 20 June 2011 - 03:46

What did you use to test the resonance?


The original poster did that. I unfortunately haven't tried out measuring resonance.

#27 ecox

ecox

    Erik

  • Member - Gold

  • PipPipPip
  • 49 posts

Posted 20 June 2011 - 12:36


What did you use to test the resonance?


The original poster did that. I unfortunately haven't tried out measuring resonance.


How did I test the resonance? I tapped the side of the cap with a coin while I was recording it as a .wav file with a high-quality mic. I then ran the .wav file through a spectrum analyzer program I have on my computer.

#28 pecolli

pecolli

    Mint

  • Member - Gold

  • PipPipPipPip
  • 61 posts
  • Flag:

Posted 21 June 2011 - 14:49

Great article.
Very interesting...

#29 s5blitzer

s5blitzer

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 437 posts
  • Location:MidWest, USA
  • Flag:

Posted 25 June 2011 - 03:13

Finally got around to reading this. Thanks!

#30 Mathew J

Mathew J

    Mathew J

  • Member - Gold

  • PipPipPipPipPipPip
  • 202 posts

Posted 25 June 2011 - 04:17

Really scary to see how close that chopin is to the real deal...makes me want to go check mine :)
"Semper Ubi Sub Ubi"
