Dating Montblanc 149s


  • Please log in to reply
328 replies to this topic

#121 glennalvia

glennalvia

    Mint

  • Member - Gold

  • PipPipPipPip
  • 65 posts

Posted 02 December 2010 - 11:45

Just one word....... WOW!

#122 Makar

Makar

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 707 posts

Posted 10 December 2010 - 20:17

Just found this superb thread in an attempt, once more, to get to grips with dating a 149. I still struggle with the broad and narrow shoulders :headsmack: but there is so much else now to piece together with this work. If this site had a thanks system I would be doling them out big time!

Back out on the hunt for a new 149...don't tell the wife I've been dating...

cheers
Stephen
When we try to pick out anything by itself, we find it hitched to everything else in the universe.

John Muir

#123 Bronze

Bronze

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 581 posts
  • Location:Necropolis

Posted 29 December 2010 - 03:49

- Thank you for this great resource guys, very helpful.


:)

#124 Inked

Inked

    Vintage

  • Member - Gold

  • PipPipPipPipPipPipPip
  • 445 posts
  • Location:Toronto, Canada
  • Flag:

Posted 03 January 2011 - 03:26

Good evening

As everyone has said..awesome job!

I have applied this new knowledge over the last few days, to listings of 149's for sale across the web, and it is solid.

You have nailed it!

I was just wondering...would the Mont Blanc star be key in dating these pens as well?

Inked

Edited by Inked, 03 January 2011 - 03:27.


#125 Michael R.

Michael R.

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,349 posts
  • Location:Absurdistan
  • Flag:

Posted 15 January 2011 - 08:28

The dating chart has sparked my interst lately and I came across another difference which I think has not incooperated into the chart.

Christof showed the following wonderful pictures in his post (http://www.fountainp...post__p__900032) in 2009 (many thanks!):

Posted Image

1970's 149


and

Posted Image

1980's-1990's 149


One of the main differences is the sinlge barrel construction vs. the multiple parts construction on later models.

Also with this changes the nib/feeder construction changed. Early models have a small rim being part of the glossy black plastic gripping section while later models show a matte black rim which is part of the feeder case and unscrews from the section of the pen. Doing this allows to take a part the two piece construction of the barrel.

Now I have notived that even more modern 149 pens(>2000) have a different construction again. The nib unit unscrews similar to the eralier models from the section. The little rim on the section is part of the section and not the feeder case again but still is matte black. The matte black rim is attached to the section and stays there when removing the nib unit. Also I'm not sure if the barrel construction now is a single piece again ?!

By the way; the 146 series underwent a similar change; on more recent pens the matte black rim on the section is part of the section as well and not part of the feeder case as it was a couple of years ago.

Unfortunately I have not been able to make out the exact date when those changes occured but all pens I have seen the new construction show details (feed, nib,...) of 2000er pens or later.

Cheers

Michael

#126 DKbRS

DKbRS

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 335 posts
  • Flag:

Posted 15 January 2011 - 21:51

Those are terrific images and very interesting. Thanks for posting them.
David

#127 Gdowne

Gdowne

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 124 posts
  • Location:Pittsburgh, PA

Posted 23 February 2011 - 21:32

Have a 149 with the split ebonite feed, plastic piston threads, and a 14k two-tone nib, so am I correct in dating it sometime in the 1988 or 1989?

Wait, just pulled out the warranty card from the clamshell case and see the card was printed in 10/88, so I would assume my dating based on the chart and photos is fairly accurate.

Thoughts?

#128 Barry Gabay

Barry Gabay

    Collectors Item

  • Member - Gold

  • PipPipPipPipPipPipPipPip
  • 805 posts

Posted 24 February 2011 - 00:36

The pen you described was made ca. 85-90, maybe a year or so earlier. The 14K nib appeared in 85 and was gone by 91/92. The split ebonite feed was first used with 14C nibs and single-piece barrels in 1981-82. Then with two-piece barrels and 14C nibs from 82-85. The plastic feed replaced the split ebonite in the US in 1990/91. Brass piston threads appeared about the same time. One somewhat rare model is the split-ebonite feed, two-piece barrel, with brass piston threads. I saw those only briefly in 91. Enjoy your new pen. It's one of the last of the truly great 149s: ebonite and a 14K nib. Congratulations!

#129 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 12,808 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 24 February 2011 - 18:18

I received a 149 in the mail today. The pen looks untampered and I think in factory original configuration.

Salient specs:

  • 18C Tritone nib
  • Solid HR feeder
  • Single unit barrel
  • Screw in filler with resin threads
  • Plastic cap top screw
This consist has no place in the chart, but I date it to approx 1969-1975, based on just the solid feeder. However due to the 18C tritone, maybe this is a transitory model exhausting leftover stocks of the 18C tritone in late 60s-early70s.

I compared this pen to another pen with the following specs:

  • 14C Bitone nib
  • Split HR feeder
  • Single unit barrel
  • Screw in filler with resin threads
  • Plastic cap top screw
thus dating it to 1975-1985.

I noticed the following differences between them:

  • The older pen is slightly shorter and thinner.
  • The snowflake on the old one is larger and slightly translucent in the edges.
  • The central trim ring on the older one is rounded as compared to the squarish"[" profile of the ring on the newer pen.
  • The trim washer at the filler is slightly thinner on the older pen.
  • The clips on both the pens are identical with GERMANY on the washer.
The Pictures:

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

I also notice that the M inside the circle on all the 18C tritone nibs that I have seen(around 5-6 pens personally) are slightly malformed/malstamped, does anyone have an example with a perfectly stamped M in such a nib?

Can anyone comment on the size of the Snowflake and how it has changed over the years.

Thanks!
Hari

#130 georges zaslavsky

georges zaslavsky

    vintageandmodernpenslover

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 11,675 posts
  • Location:France
  • Flag:

Posted 26 February 2011 - 13:01

It is a french market model (rare model), the snowflakes aren't the same on an eignties model than on a seventies or mid late sixties model. Aldo the nib on this french model is tapered shoulders, pretty sure it is a flexible one. I am going to buy a 1966 MB 149 French market model with a tricolor 18ct custom medium oblique in april 2011. I will post pics of it

Edited by georges zaslavsky, 26 February 2011 - 13:01.

Pens are like watches , once you start a collection, you can hardly go back. And pens like all fine luxury items do improve with time
Posted Image

#131 CS388

CS388

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 1,530 posts
  • Location:London UK

Posted 27 February 2011 - 23:45

...edit...


I also notice that the M inside the circle on all the 18C tritone nibs that I have seen(around 5-6 pens personally) are slightly malformed/malstamped, does anyone have an example with a perfectly stamped M in such a nib?



I hadn't noticed until you mentioned it, but the M on my 18C tritone nib is almost invisible. Am assuming it's a stamping issue, as the rest of the nib has sharp imprints?

Beautiful pens, Hari - and excellent photography, too!


Edited to add: On the first page of this topic there is a photo of an 18C tritone nib with a perfect M in the circle, in a post by sunnerd

Edited by CS388, 28 February 2011 - 01:07.


#132 Mr Blifil

Mr Blifil

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 185 posts

Posted 28 February 2011 - 01:55


...edit...


I also notice that the M inside the circle on all the 18C tritone nibs that I have seen(around 5-6 pens personally) are slightly malformed/malstamped, does anyone have an example with a perfectly stamped M in such a nib?



I hadn't noticed until you mentioned it, but the M on my 18C tritone nib is almost invisible. Am assuming it's a stamping issue, as the rest of the nib has sharp imprints?

Beautiful pens, Hari - and excellent photography, too!


Edited to add: On the first page of this topic there is a photo of an 18C tritone nib with a perfect M in the circle, in a post by sunnerd



I have one that is cleanly and crisply stamped an one that is faintly stamped.
"That's the disease you have to fight in any creative field--ease of use." Jack White, in It Might Get Loud

#133 Mr Blifil

Mr Blifil

    Rare

  • Member - Gold

  • PipPipPipPipPip
  • 185 posts

Posted 28 February 2011 - 05:44

I also see other differences in the details of the stampings. The shoulders look the same to me, but the tine length on one with the lighltly stamped M look longer. This last comparison is difficult because one is a B, I think, and the other an EF.

Edited by Mr Blifil, 28 February 2011 - 06:12.

"That's the disease you have to fight in any creative field--ease of use." Jack White, in It Might Get Loud

#134 Michael R.

Michael R.

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,349 posts
  • Location:Absurdistan
  • Flag:

Posted 03 March 2011 - 18:38

I would like to add a few differences in detail regarding the older, celluloid versions of the 149:

  • there are at least two different versions of the ink window; there is a longer one (ca. 1,3 cm / older???) and a shorter one (ca. 0,6 cm / newer???)
  • there are two differently shaped rims at the end of the gripping section; one is more cylindrical (older ???) - the other is more conical (newer???). Both versions can be seen in the chart (compare the first two pictures showing the different early feeds).
  • the filling knob might be engraved with "149" or "149G" with or without combination of stating the nib width. I believe "149G" in combination with the nib width is the oldest while an unengraved one would be the newest.

Unfortunately I have no time refferences for those observations. Maybe it was the same time the feed design was changed on the celluloid 149s?

Cheers

Michael

#135 collado

collado

    Near Mint

  • Member - Gold

  • PipPipPip
  • 32 posts
  • Flag:

Posted 05 March 2011 - 03:19


This is the 14C bi-color nib(EF),cited from www.penbbs.com@China

#136 torstar

torstar

    Antique

  • Member - Gold

  • PipPipPipPipPipPipPipPipPip
  • 2,995 posts
  • Location:Toronto
  • Flag:

Posted 12 March 2011 - 16:36

Thank you.

But that takes all the fun out of it with my 18K bicolour nib.

#137 kroywen1982

kroywen1982

    Near Mint

  • Member - Gold

  • PipPipPip
  • 31 posts
  • Location:USA
  • Flag:

Posted 17 March 2011 - 23:42

I have just purchased a 149 from Swisher Pens, the thread is brass. I am very glad.

#138 ocedare

ocedare

    Near Mint

  • Member - Silver

  • PipPipPip
  • 26 posts
  • Location:France
  • Flag:

Posted 26 March 2011 - 13:36

Hello, it is my first post.

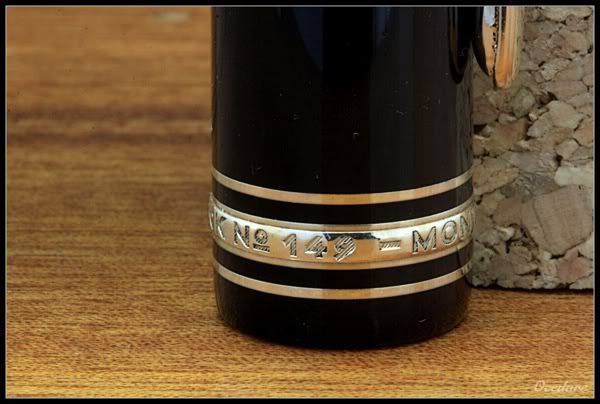

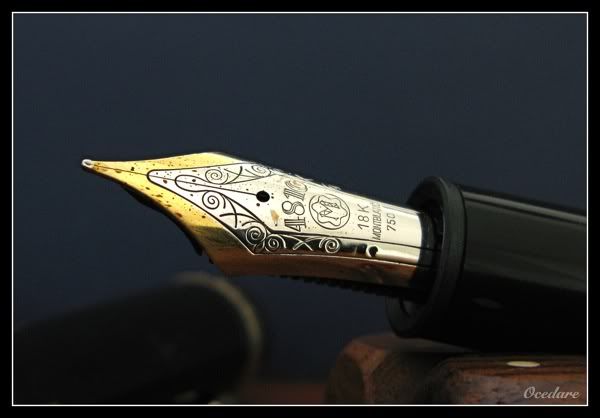

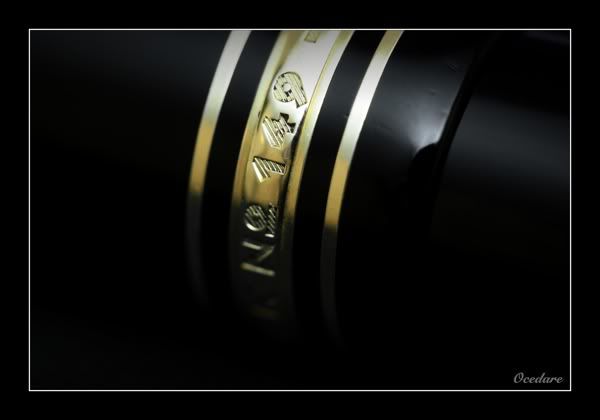

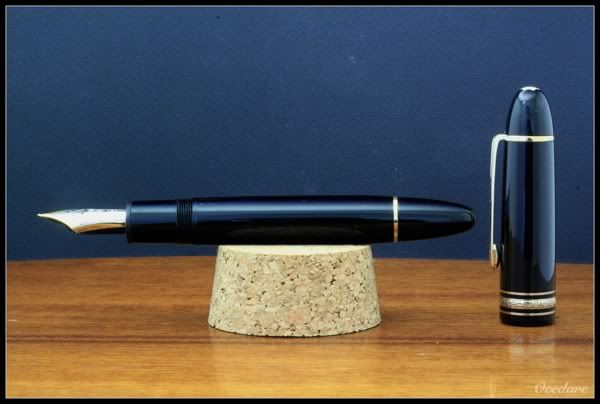

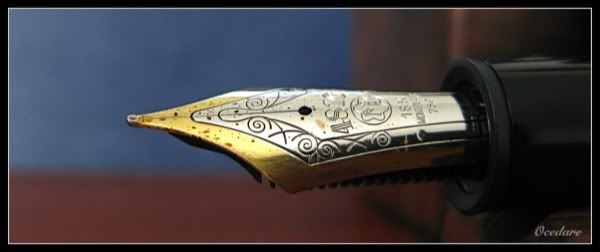

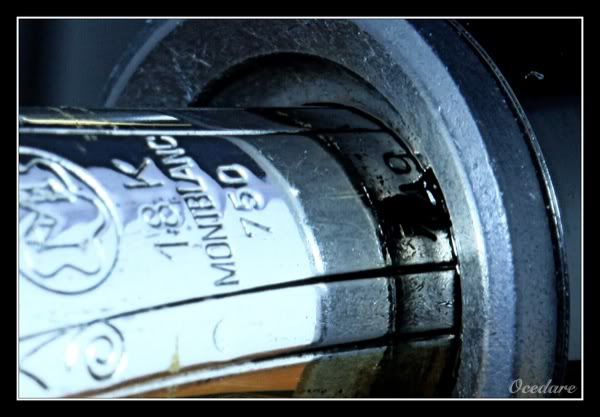

I have a 149 Meisterstuck pen with a 18K two-tone unmarked stod.

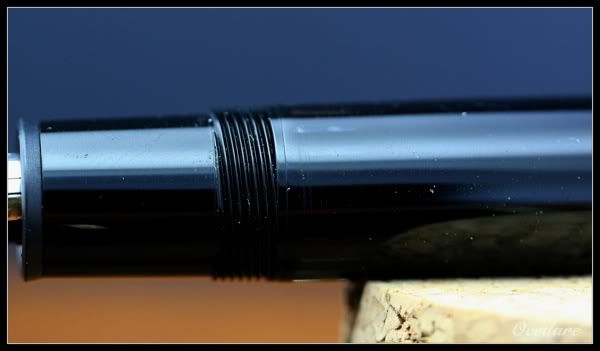

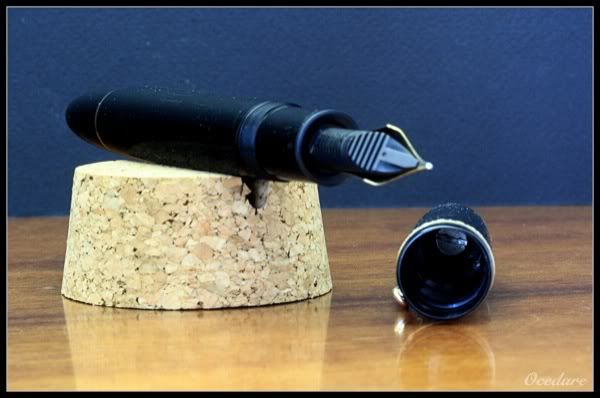

Body in 2 sections, black plastic piston, plastic feeds early. When I light the interior of the cap, the threaded portion shows a

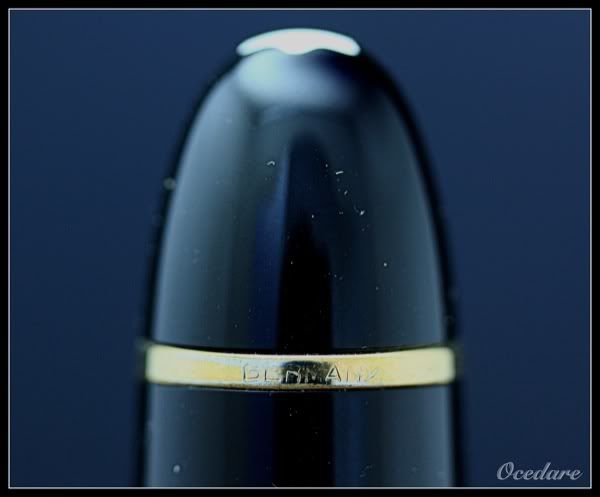

red and the clip is marked "Germany ".

Same as

Posted Image1980's-1990's 149



I can not locate it in years because I can not find the nib without stod in the table.. Perhaps just before 1990? Do you think it is an assembly or is it original?

if you need a picture of the nib for inclusion in the table, let me know;)

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

Edited by ocedare, 26 March 2011 - 15:35.

Xavier

#139 hari317

hari317

    Classic

  • Member - Gold

  • PipPipPipPipPipPipPipPipPipPipPipPip
  • 12,808 posts
  • Location:Mumbai, INDIA
  • Flag:

Posted 26 March 2011 - 17:49

I have a 149 Meisterstuck pen with a 18K two-tone unmarked stod.


Your nib and pen are certainly legitimate. I have seen a few of these come up on ebay, all with the first gen plastic feeder. I believe these were the first 18K nibs.

#140 draeroheli

draeroheli

    Extremely Rare

  • Member - Gold

  • PipPipPipPipPipPip
  • 343 posts
  • Location:Nottingham, England
  • Flag:

Posted 26 March 2011 - 21:02

1985 MB 149 with Split Ebonite feed, 14 K Bi colour/ tone Fine nib, Black Plastic Thread for Filler cone (NOS) is waiting for me at home. The Nib/Feeder Housing collar has 180 degree Slots at 12 o 'clock and at 6 o'clock position.
Modern MB 149 has 4 o'clock and 8 o'clock position.


I will post the pictures soon. Htin

Edited by draeroheli, 26 March 2011 - 22:12.

Patron of Art Marquise de Pompadour 2001 LE 0043/4810.
Donation SE John Lennon Imagine FP (M) Nib Serial No.BW195873
Donation LE Johann Sebastian Bach 2001(M) Nib. serial no. 2892/12000.
Donation SE Yehudi Menuhin No 3772 (EF)Nib
Writers Limited Edition Mark Twain 2010(M)Nib. serial no.3633/12000.
1985 Meisterstuck 149(EF) & Modern149(OB), 147 Traveler (M) Sp.Edition 1970-1995 Warner Bros Music Artist 146 (M). Mozart (F). 144 Stainless Steel Doue (M), Le Boherme Rouge(M)
